2013 Suzuki VL1500BTL3 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2013 Suzuki VL1500BTL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

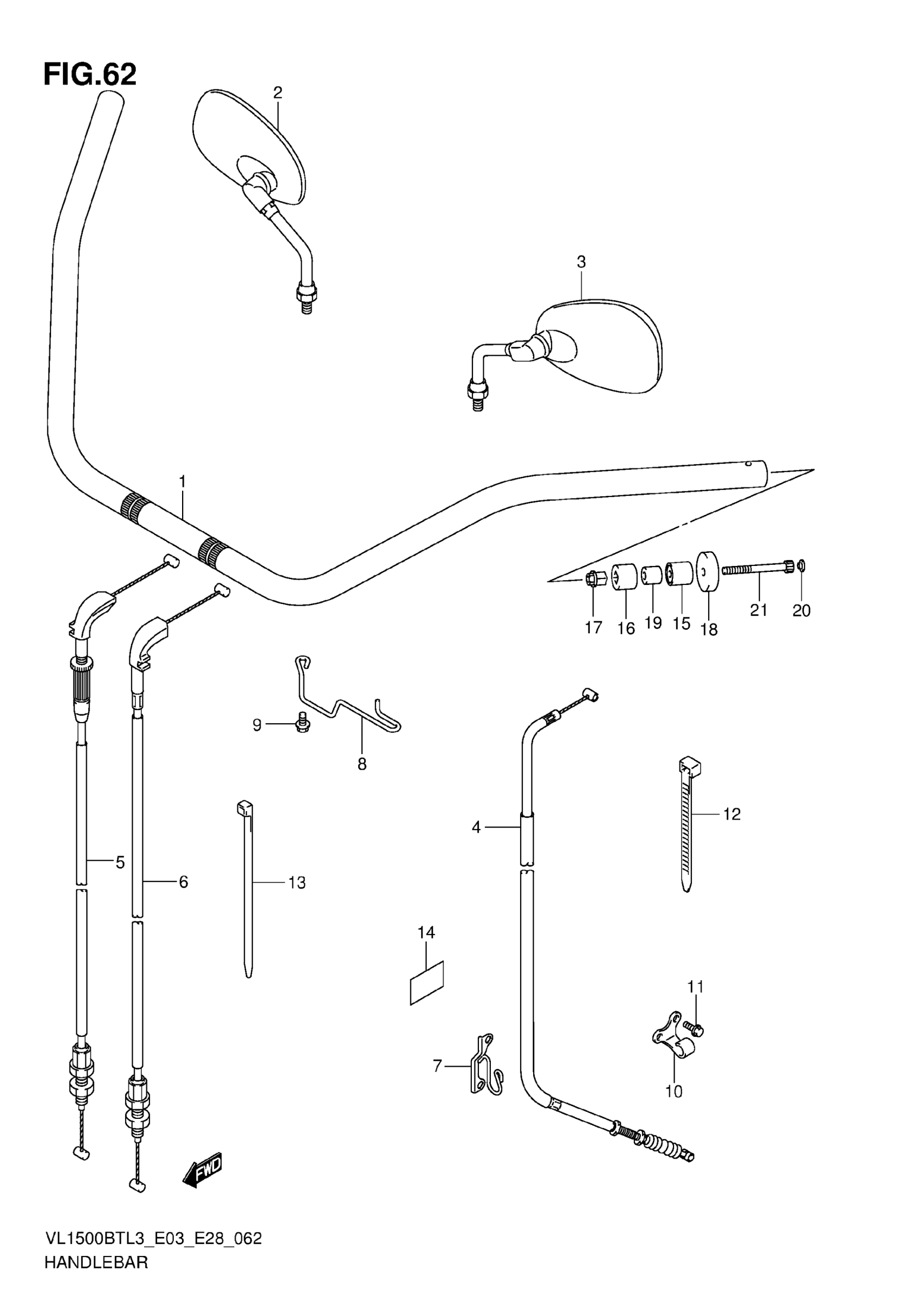

2013 Suzuki VL1500BTL3 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-06J10

1
Out of stock

2

1

$171.78

In stock

3

1

$170.95

In stock

4

CABLE ASSY, CLUTCH This part replaces 58200-06J00.

58200-06J01

1
Out of stock

5

CABLE ASSY,THRO This part replaces 58300-06J00.

58300-06J01

1
Out of stock

6

CABLE ASSY,THRO This part replaces 58300-06J10.

58300-06J11

1
Out of stock

7

GUIDE, CLUTCH CABLE

58620-06J10

1
Out of stock

8

GUIDE, CABLE

58621-06J00

1
Out of stock

9

BOLT

01550-0612A

1
Out of stock

10

STOPPER, CLUTCH CABLE

58634-40H00

1
Out of stock

11

BOLT

01547-0612A

2
Out of stock

12

CLAMP (L:190)

09407-19401

1
Out of stock

13

CLAMP (L:145)

09407-14407

2
Out of stock

14

PROTECTOR, THROTTLE CABLE

94474-17H00

1
Out of stock

15

EXPANDER, BALANCER NO.2

56271-26D20

2
Out of stock

16

EXPANDER, BALANCER

56272-10G10

2
Out of stock

17

NUT

56273-10G10

2
Out of stock

18

BALANCER, HANDLEBAR

56278-22H00

2
Out of stock

19

.SPACER (6.5X16X15)

09180-06161

2
Out of stock

20

CAP (OD:10)

09250-05008

2
Out of stock

21

BOLT

07130-0660A

2
Out of stock
