2013 Suzuki VL1500BTL3 Fuel Pump Diagram

← All diagrams

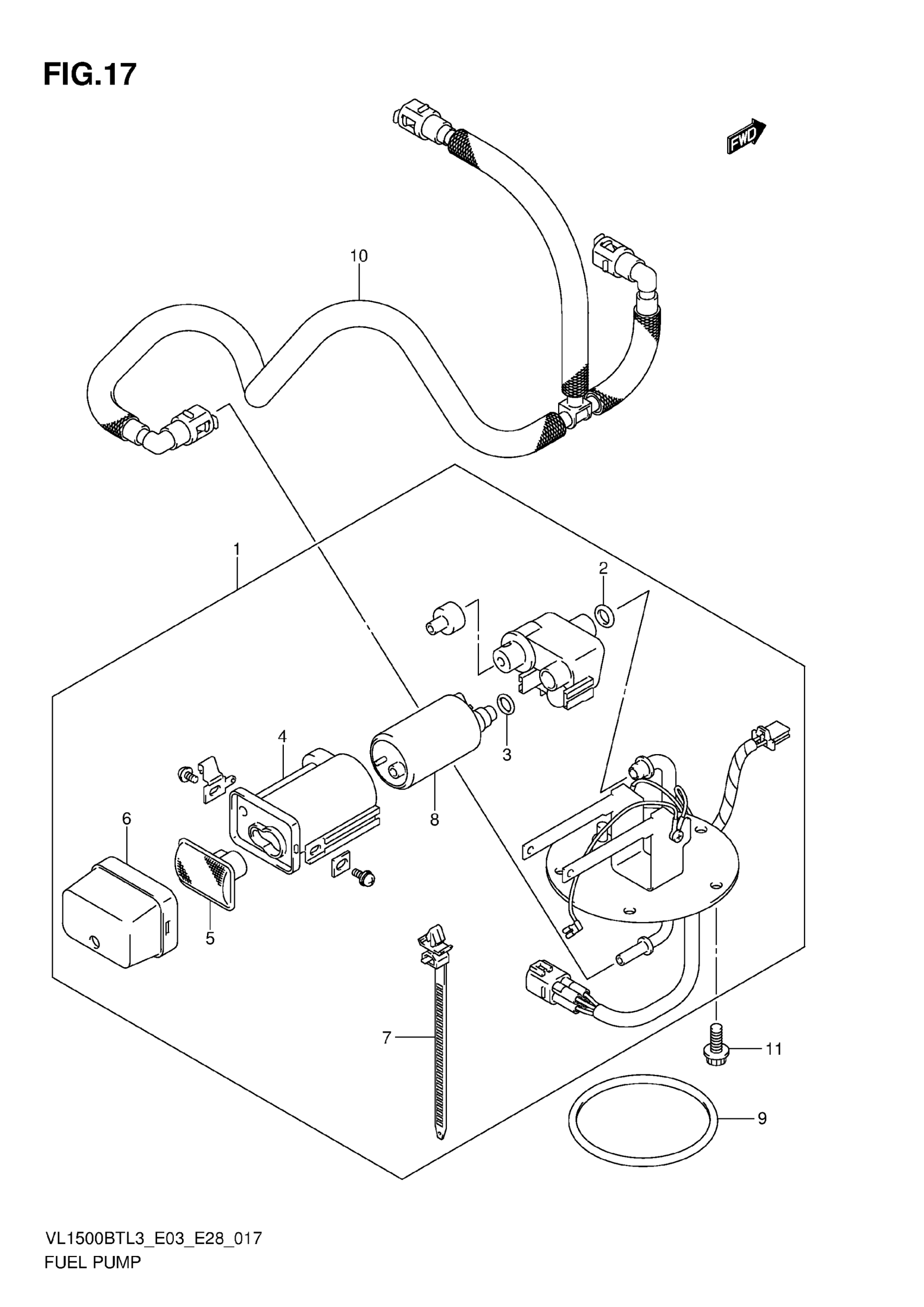

Find the part on the Fuel Pump diagram for your 2013 Suzuki VL1500BTL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VL1500BTL3 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$467.07

In stock

2

O RING

15113-35F00

1

$8.88

In stock

3

O RING

15113-05H00

1

$20.48

In stock

4

JOINT

15118-06J00

—
Out of stock

5

STRAINER

15420-05H00

1

$41.04

In stock

6

VESSEL

15425-06J10

1
Out of stock

7

BINDER

15116-06J00

1
Out of stock

8

REGULATOR

15610-06J00

1

$232.77

In stock

9

O-RING

15201-35F00

1

$27.52

In stock

10

HOSE

15810-06J01

1

$198.65

In stock

11

BOLT

07120-0612A

5
Out of stock
