2013 Suzuki VL1500BTL3 Frame Cover Diagram

← All diagrams

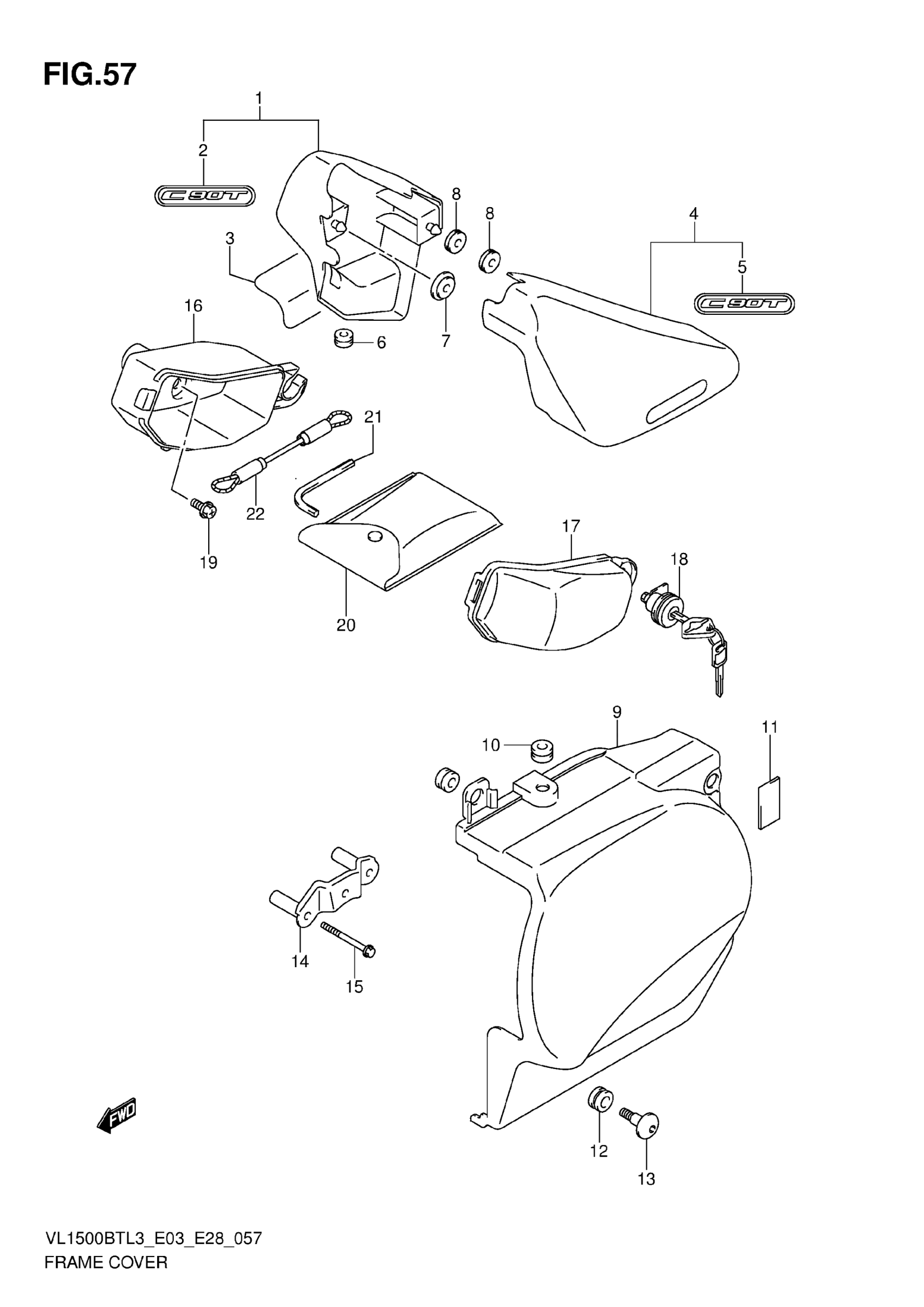

Find the part on the Frame Cover diagram for your 2013 Suzuki VL1500BTL3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Suzuki VL1500BTL3 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$136.45

In stock

2

1

$39.00

In stock

3

SHIELD, SIDE COVER RH

47166-06J00

1
Out of stock

4

1

$123.98

In stock

5

1

$39.00

In stock

6

1

$8.63

In stock

7

2

$5.48

In stock

8

CUSHION | REAR

09320-08018

2
Out of stock

9

COVER, LOWER LH

47231-40H10

1
Out of stock

10

CUSHION | LH

09320-06504

1
Out of stock

11

CUSHION | LH

51827-01A00

1

$6.95

In stock

12

CUSHION | LH

09320-09016

3
Out of stock

13

BOLT (6X20) | LH

09139-06190

3
Out of stock

14

1

$32.90

In stock

15

BOLT

01547-0650A

2
Out of stock

16

BODY, LUGGAGE BOX

92211-06J00

1
Out of stock

17

LID

92212-06J00

1
Out of stock

18

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

1
Out of stock

19

BOLT (6X12)

09111-06107

3
Out of stock

20

1

$44.35

In stock

21

SPANNER, 6 HEXAGON

09816-00050

1
Out of stock

22

1

$27.68

In stock
