2019 Suzuki VL1500BL9 Transmission Diagram

← All diagrams

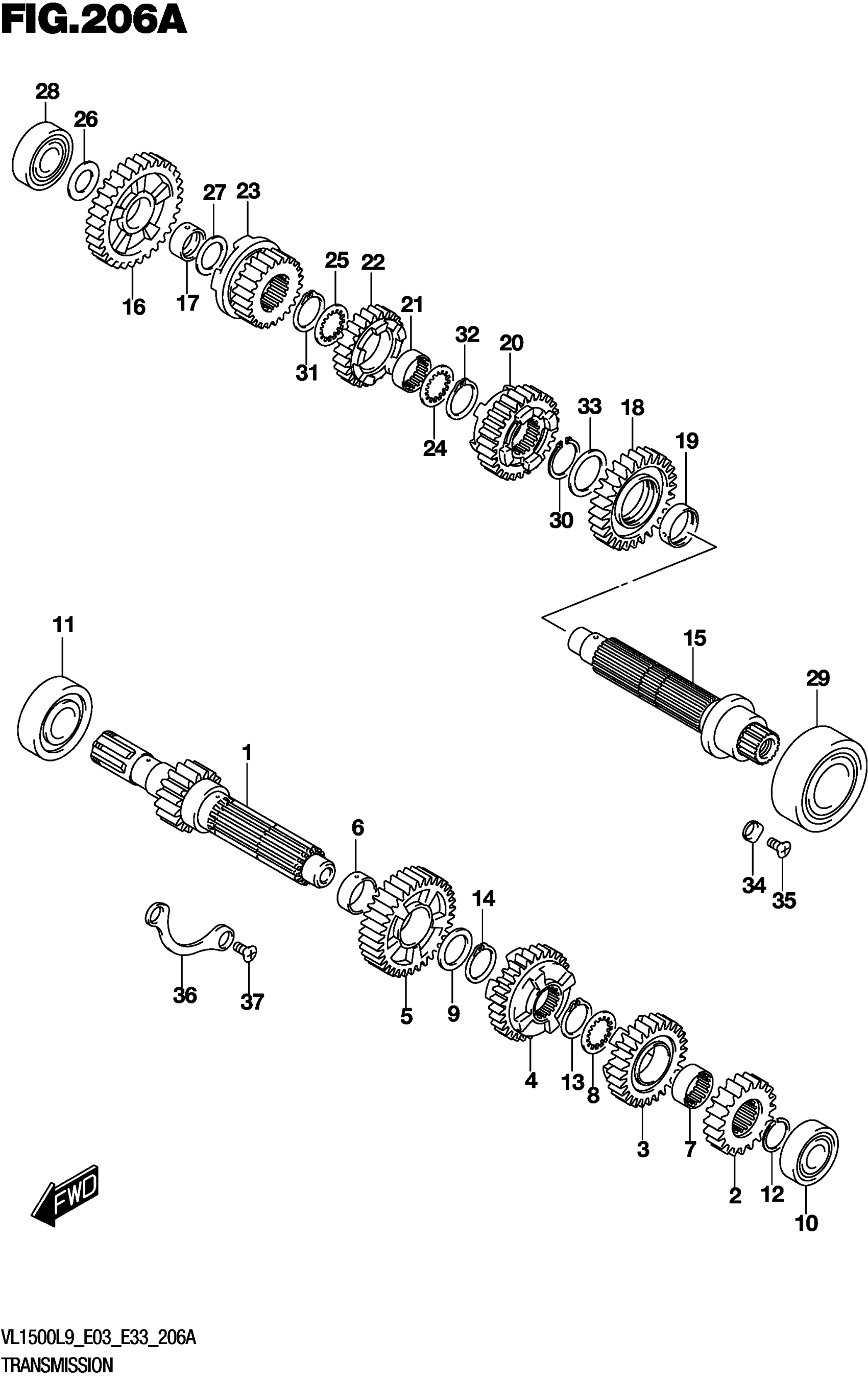

Find the part on the Transmission diagram for your 2019 Suzuki VL1500BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VL1500BL9 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT

24120-40H00

1
Out of stock

2

GEAR,2ND DRIVE (NT:20)

24221-48G00

1
Out of stock

3

GEAR,3RD DRIVE (NT:28)

24231-48G10

1
Out of stock

4

GEAR

24241-06J00

1
Out of stock

5

GEAR

24251-40H00

1
Out of stock

6

BUSH,5TH DRIVE GEAR

24252-24F10

1
Out of stock

7

BUSH,6TH DRIVE GEAR

24262-24F10

1
Out of stock

8

LOCK WASHER (27X36X2.5)

09167-27003

1
Out of stock

9

SHIM (27X36X2.5)

09181-27014

1
Out of stock

10

BEARING (20X52X15) | LH

09262-20080

1
Out of stock

11

BEARING (25X62X17) | RH

09262-25153

1
Out of stock

12

CIRCLIP

09380-27004

1
Out of stock

13

CIRCLIP

09380-27006

1
Out of stock

14

CIRCLIP

09380-27006

1
Out of stock

15

SHAFT

24130-40H10

1
Out of stock

16

GEAR,1ST DRIVEN (NT:35)

24311-48G00

1
Out of stock

17

BUSH,1ST DRIVEN GEAR

24312-24F10

1
Out of stock

18

GEAR,2ND DRIVEN (NT:28)

24321-48G10

1
Out of stock

19

BUSH,2ND DRIVEN GEAR

24322-48G00

1
Out of stock

20

GEAR

24331-06J00

1
Out of stock

21

BUSH,DRIVEN GEAR

24332-24F10

1
Out of stock

22

GEAR

24341-40H00

1
Out of stock

23

GEAR

24351-40H00

1
Out of stock

24

WASHER,LOCK (30X38X2) | LH

09167-30008

1
Out of stock

25

WASHER,LOCK (30X38X2) | RH

09167-30008

1
Out of stock

26

SHIM (22X34X1) | RH

09181-22223

1
Out of stock

27

SHIM (24X34X1) | LH

09181-24005

1
Out of stock

28

BEARING (22X56X16) | RH

09262-22024

1
Out of stock

29

BEARING (35X72X27) | LH

09267-35004

1
Out of stock

30

CIRCLIP

09380-30009

1
Out of stock

31

CIRCLIP | RH

09380-30009

1
Out of stock

32

CIRCLIP | LH

09380-30009

1
Out of stock

33

WASHER

08211-30403

1
Out of stock

34

RETAINER

24741-20A00

2
Out of stock

35

SCREW (6X12)

09126-06011

2
Out of stock

36

RETAINER

24741-27A00

1
Out of stock

37

SCREW (6X12)

09126-06011

2
Out of stock
