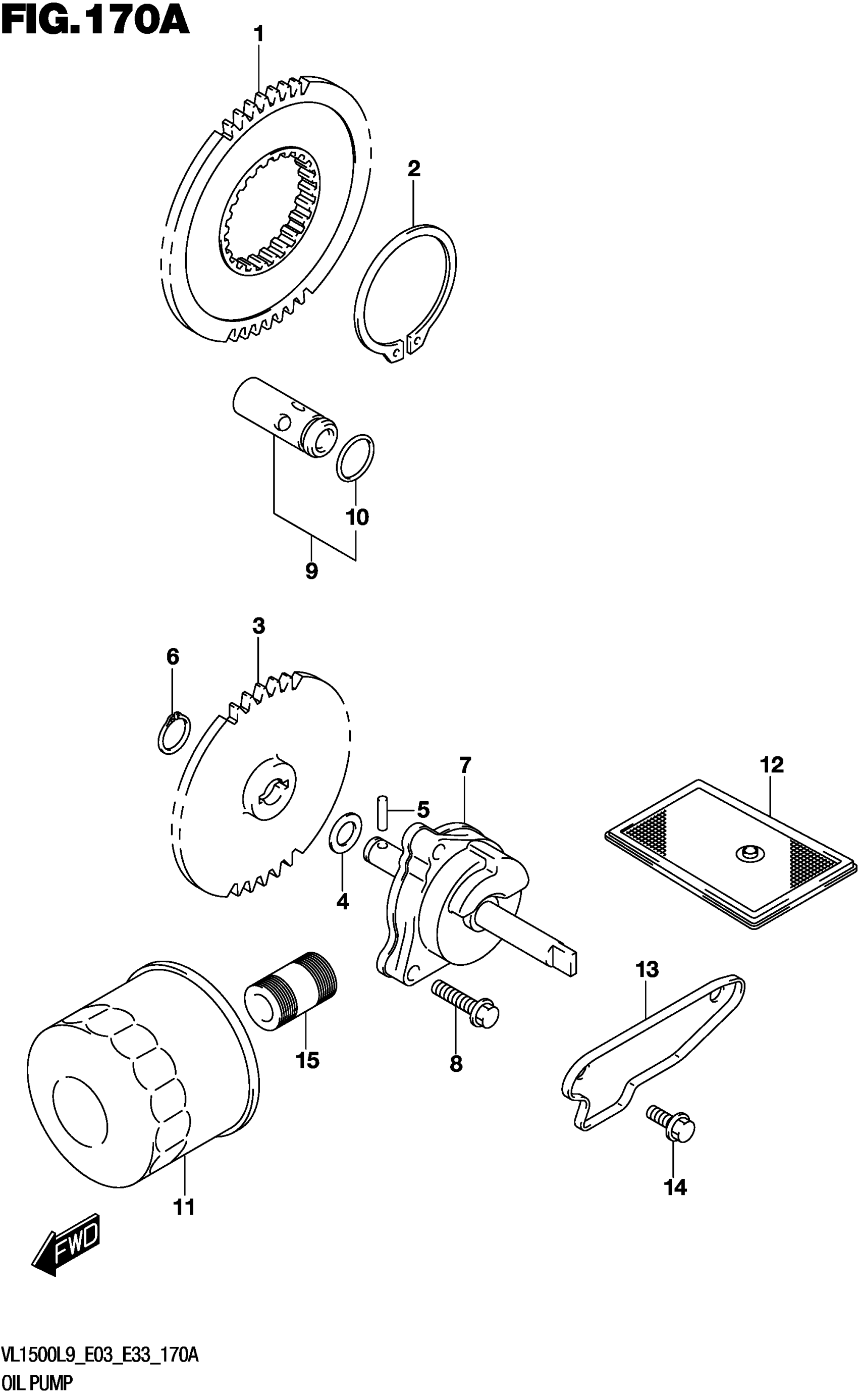

Suzuki VL1500BL9 (2019) OIL PUMP Diagram

#

Description
Price

1

GEAR

16321-40H00

Unavailable

2

CIRCLIP

08331-31529

Unavailable

3

GEAR

16331-40H00

Unavailable

4

SHIM (10X18X0.5)

09181-10158

$2.03

5

PIN (4X15.8)

09261-04009

$1.56

6

CIRCLIP

08331-31109

$1.82

7

PUMP ASSY

16400-40H00

$262.20

8

BOLT

01547-0625A

$2.09

9

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$47.86

10

.O-RING (D:1.9,ID:13)

09280-13004

$2.25

11

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

$12.35

12

STRAINER,ENG OIL This part replaces 16520-32E00.

16520-32E01

$12.88

13

CAP,OIL STRAINER

16523-17G00

Unavailable

14

BOLT

01547-0612A

$2.09

15

UNION,OIL STAND

16591-06B01

$6.74
