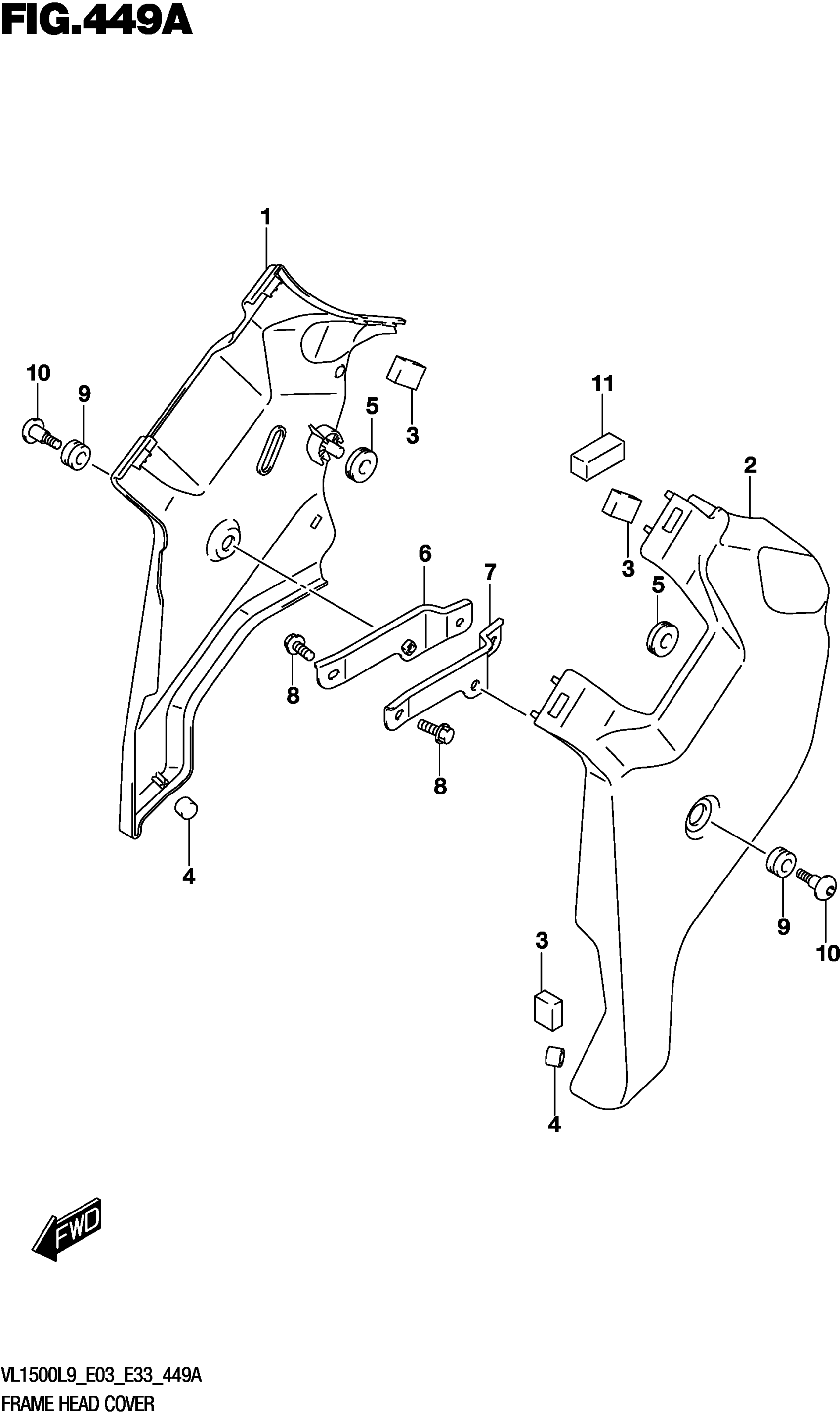

Suzuki VL1500BL9 (2019) FRAME HEAD COVER Diagram

#

Description
Price

1

COVER

47351-06J00-019

$165.70

2

COVER

47361-06J00-019

$78.97

3

CUSHION,RDTR COVER INNER | CUT AS REQUIRED

17798-39G00

$6.12

4

CAP(OD:12.3) This part replaces 09250-12013.

09250-12015

$0.72

5

CUSHION (8x26x7)

09320-08018

$2.80

6

PLATE

47370-40H01

$14.98

7

PLATE

47380-40H01

$15.22

8

BOLT

01550-0616A

$1.97

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

SCREW (6X20)

09139-06190

$3.77

11

CUSHION | CUT AS REQUIRED

47191-22D00

$5.65
