2019 Suzuki VL1500BL9 Electrical Diagram

← All diagrams

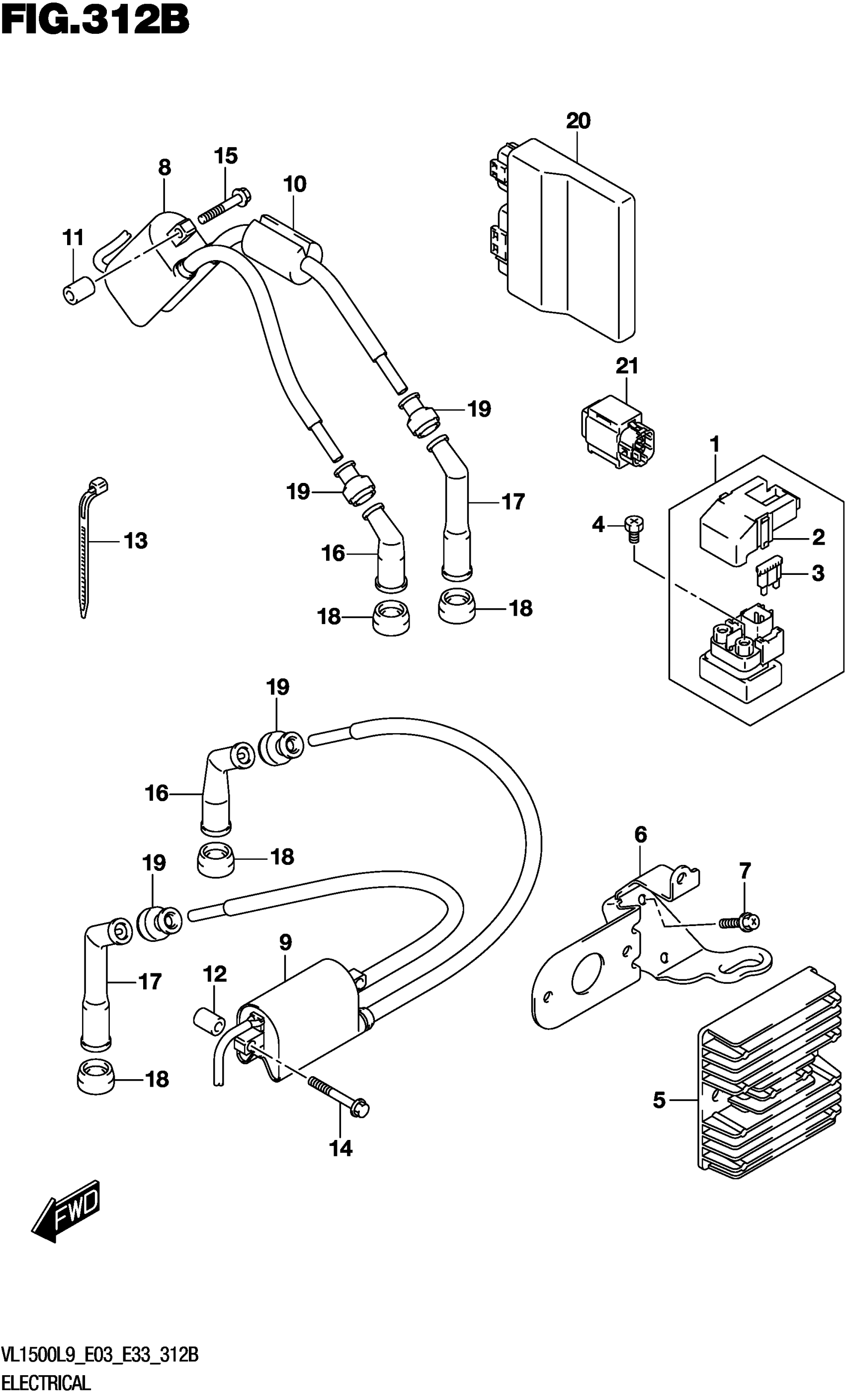

Find the part on the Electrical diagram for your 2019 Suzuki VL1500BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VL1500BL9 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

1
Out of stock

2

.COVER

31861-47E00

1
Out of stock

3

.FUSE (30A)

09481-30101

2

$2.45

In stock

4

SCREW (6X8)

09128-06013

2
Out of stock

5

RECTIFIER ASSY

32800-10G30

1

$363.52

In stock

6

BRACKET

32830-40H10

1
Out of stock

7

2

$2.22

In stock

8

COIL ASSY, IGNITION

33410-40H01

1
Out of stock

9

COIL ASSY

33420-40H11

1

$139.62

In stock

10

CUSHION,HIGH TENSION CORD (58

33442-41F00

1
Out of stock

11

2

$4.90

In stock

12

SPACER (6.2X12X16) | FRONT

09180-06198

2
Out of stock

13

CLAMP (L:165)

09407-18402

1
Out of stock

14

BOLT | FRONT

01547-0635A

2
Out of stock

15

BOLT | REAR

01547-0640A

2
Out of stock

16

CAP,SPARK PLUG (SIDE)

33510-38B00

2

$35.80

In stock

17

CAP

33510-45010

2

$25.62

In stock

18

SEAL,SPARK PLUG

33541-47D00

4
Out of stock

19

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

4
Out of stock

20

CONTROL UNIT

32920-06J70

1
Out of stock

21

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
