2019 Suzuki VL1500BL9 Crankshaft Diagram

← All diagrams

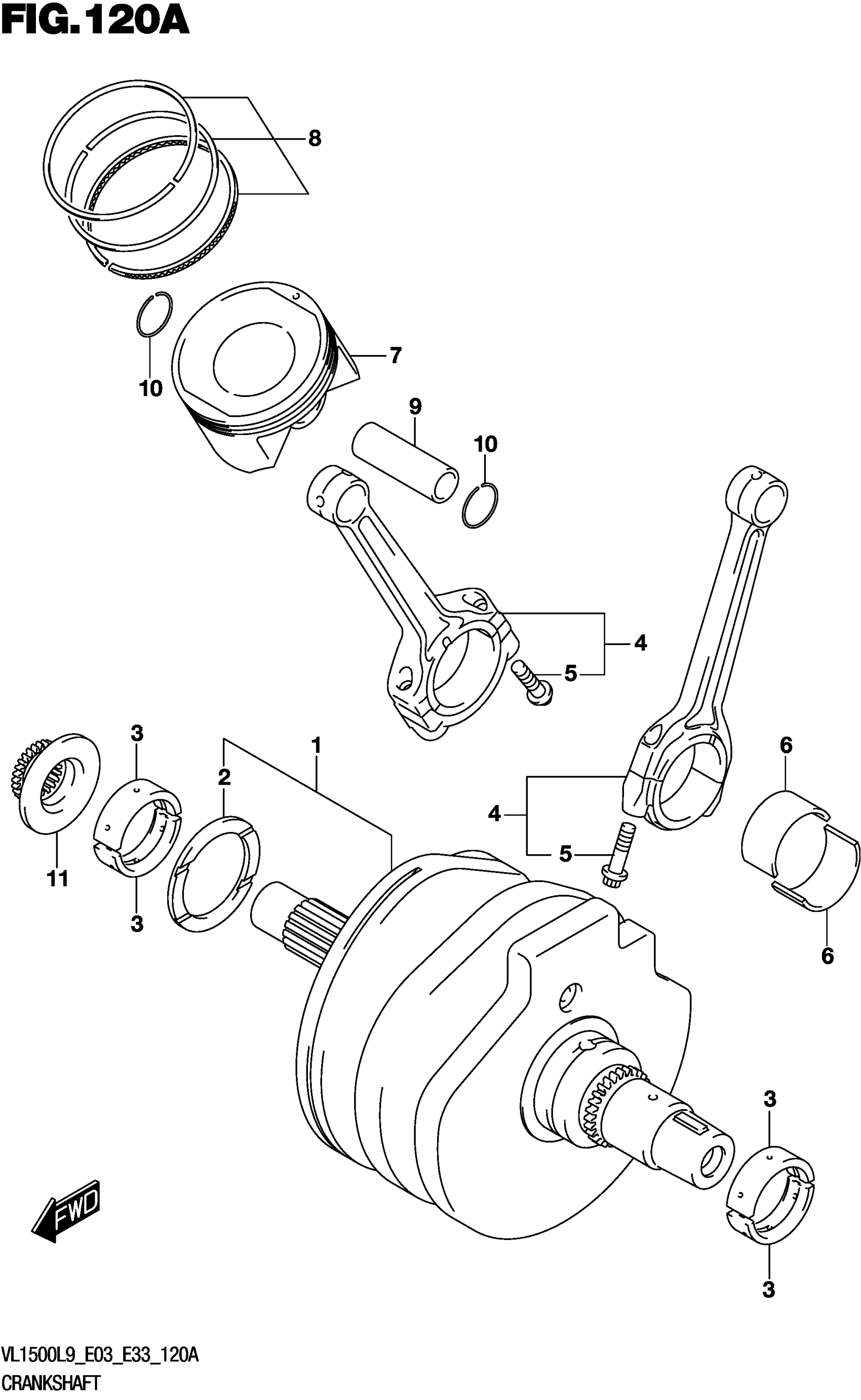

Find the part on the Crankshaft diagram for your 2019 Suzuki VL1500BL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki VL1500BL9 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12000-40851

1

$1,896.28

In stock

2-1

.BEARING

12228-40H00-0A0

1
Out of stock

2-1

.BEARING

12228-40H00-0A0

1
Out of stock

2-2

.BEARING

12228-40H00-0B0

1
Out of stock

2-2

.BEARING

12228-40H00-0B0

1
Out of stock

2-3

.BEARING

12228-40H00-0C0

1
Out of stock

2-3

.BEARING

12228-40H00-0C0

1
Out of stock

2-4

.BEARING

12228-40H00-0D0

1
Out of stock

2-4

.BEARING

12228-40H00-0D0

1
Out of stock

2-5

.BEARING

12228-40H00-0E0

1
Out of stock

2-5

.BEARING

12228-40H00-0E0

1
Out of stock

2-6

.BEARING

12228-40H00-0F0

1
Out of stock

2-6

.BEARING

12228-40H00-0F0

1
Out of stock

3-1

BEARING

12229-40H00-0A0

4
Out of stock

3-2

BEARING

12229-40H00-0B0

4
Out of stock

3-3

BEARING

12229-40H00-0C0

4
Out of stock

4

CONNROD ASSY

12160-40H00

2
Out of stock

5

.BOLT,CONNROD

12163-06G00

4

$23.55

In stock

6-1

BEARING

12164-40H00-0A0

4
Out of stock

6-2

BEARING

12164-40H00-0B0

4

$25.42

In stock

6-3

BEARING

12164-40H00-0C0

4
Out of stock

6-4

BEARING

12164-40H00-0D0

4
Out of stock

7

PISTON (YELLOW)

12111-40H10-0F0

2

$190.35

In stock

8

RING SET

12140-40H01

2

$103.33

In stock

9

PIN,PISTON

12151-02F10

2

$32.90

In stock

10

CIRCLIP

09381-22002

4

$1.78

In stock

11

SPROCKET

12731-40H00

1
Out of stock

11

SPROCKET

12731-40H00

1
Out of stock
