2018 Suzuki VL1500BL8 Windscreen Diagram

← All diagrams

Find the part on the Windscreen diagram for your 2018 Suzuki VL1500BL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

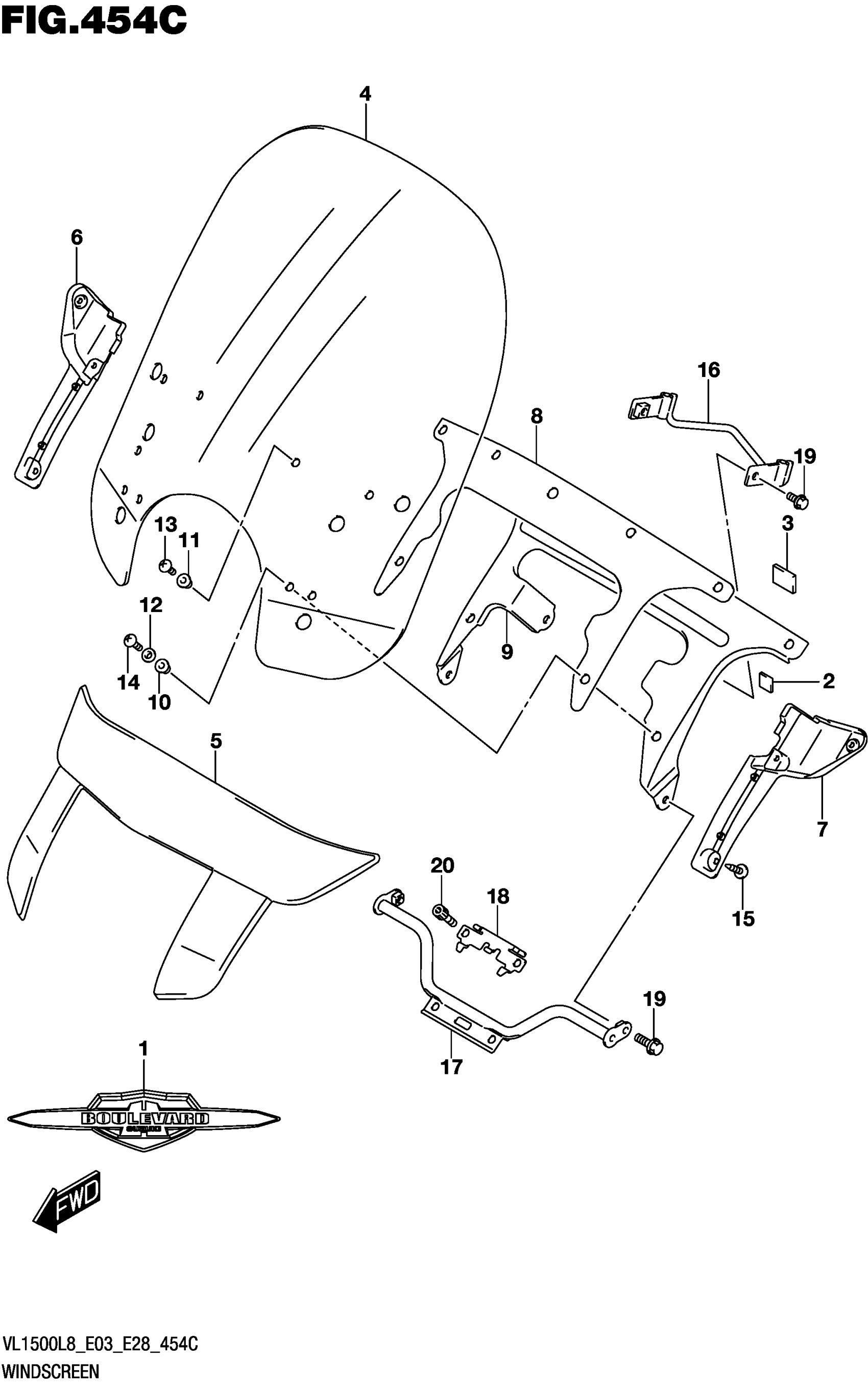

2018 Suzuki VL1500BL8 Windscreen Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM

68181-06J00

1
Out of stock

2

.CUSHION,REAR COMB

33652-48E00

4
Out of stock

3

CUSHION (20X30X8)

94422-06G00

6
Out of stock

4

WINDSCREEN

94611-06J00

1
Out of stock

5

COVER

94612-06J00

1
Out of stock

6

PANEL

94613-06J00

1
Out of stock

7

PANEL

94614-06J00

1
Out of stock

8

CUSHION

94616-06J10

1
Out of stock

9

BRACE

94621-06J10

1
Out of stock

10

NUT (M5)

09159-05019

4
Out of stock

11

NUT

09159-05048

2

$7.13

In stock

12

WASHER (5.2X14X1.5)

09161-05017

2
Out of stock

13

SCREW

02142-1516B

4
Out of stock

14

SCREW

02142-1520B

2
Out of stock

15

SCREW

03541-0516B

6
Out of stock

16

BRACE

94630-06J10

1
Out of stock

17

BRACE

94640-06J10

1
Out of stock

18

PLATE

94651-06J00

1
Out of stock

19

BOLT (8X16)

01550-0816A

4
Out of stock

20

BOLT

07130-0845A

2
Out of stock
