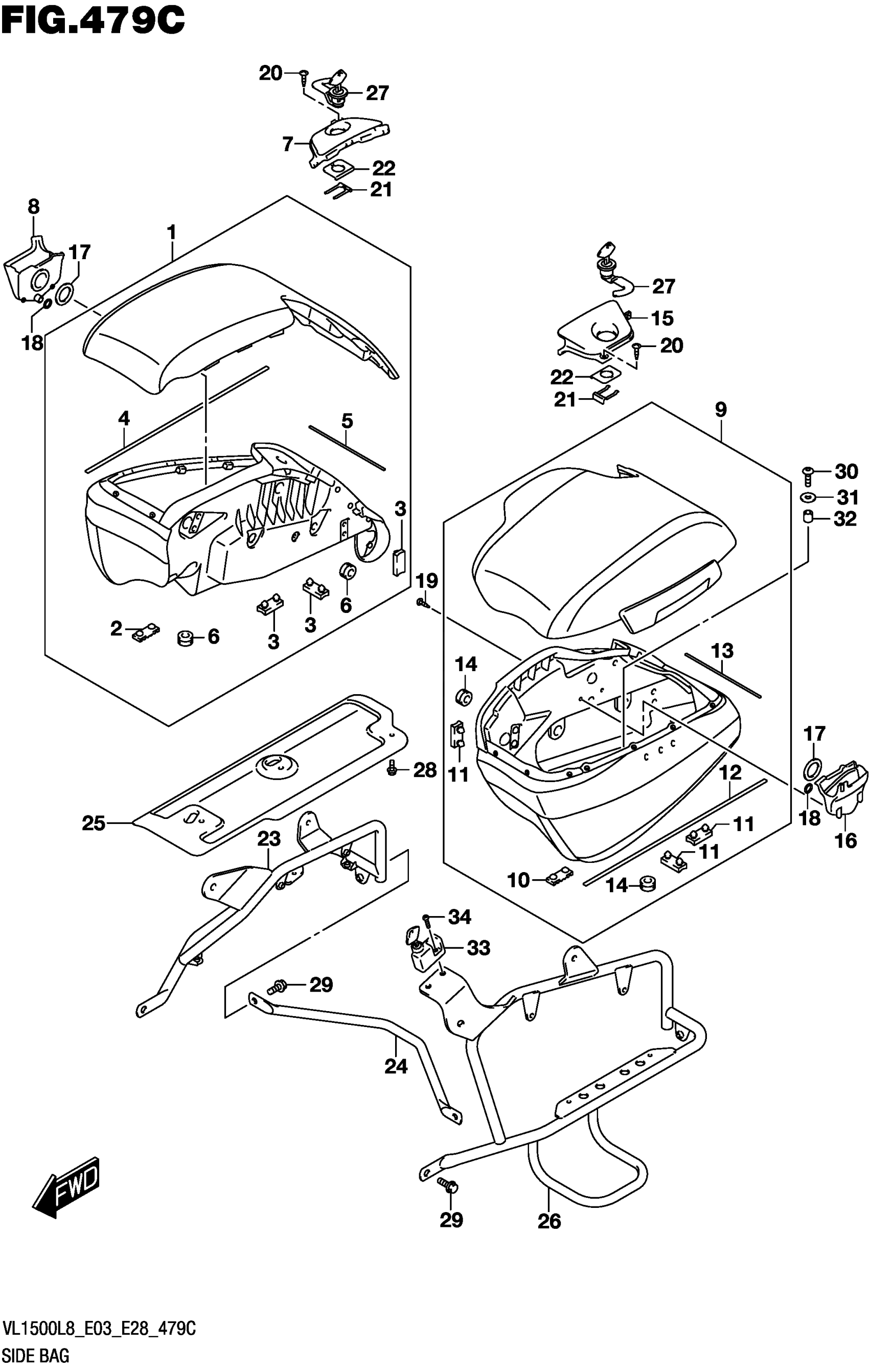

Suzuki VL1500BL8 (2018) SIDE BAG (VL1500TL8 E28) Diagram

#

Description
Price

1

BAG ASSY

95400-06J51

$2,555.77

2

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

3

.CUSHION

95424-06J00

Unavailable

4

.CUSHION

95439-06J00

$5.90

5

.CUSHION

95536-06J00

$3.48

6

.CUSHION

09320-11008

$2.58

7

COVER

95418-06J00

$41.70

8

TRAY

95419-06J00

$16.50

9

BAG ASSY,SIDE,L This part replaces 95500-06J41.

95500-06J42

$2,478.83

10

CUSHION,SEAT (40X20X6)

45149-12C00

$7.48

11

.CUSHION

95424-06J00

Unavailable

12

.CUSHION

95439-06J00

$5.90

13

.CUSHION

95536-06J00

$3.48

14

.CUSHION

09320-11008

$2.58

15

COVER

95518-06J00

$14.53

16

TRAY

95519-06J00

Unavailable

17

CUSHION

95533-06J00

Unavailable

18

O RING, OIL GALLERY This part replaces 09280-12002.

09280-12012

$4.19

19

SCREW

03541-0516A

$1.37

20

SCREW

03541-0520B

$2.87

21

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

22

PLATE

95425-06J00

Unavailable

23

BRACE

95470-06J00

Unavailable

24

BRACE

95481-06J00

$79.84

25

PLATE

95482-06J00

$78.85

26

BRACE

95570-06J00

$282.08

27

LOCK SET

95700-06810

$114.78

28

BOLT

01550-0612A

$1.97

29

BOLT

01550-0816B

$2.75

30

BOLT (6X25)

09139-06196

$2.36

31

WASHER (6.5X20X1.6)

09160-06154

$2.17

32

SPACER (6.5X11.5X12)

09180-06120

$2.31

33

LOCK SET HELMET

95700-41821

$171.60

34

SCREW (6X20)

09139-06048

$1.29
