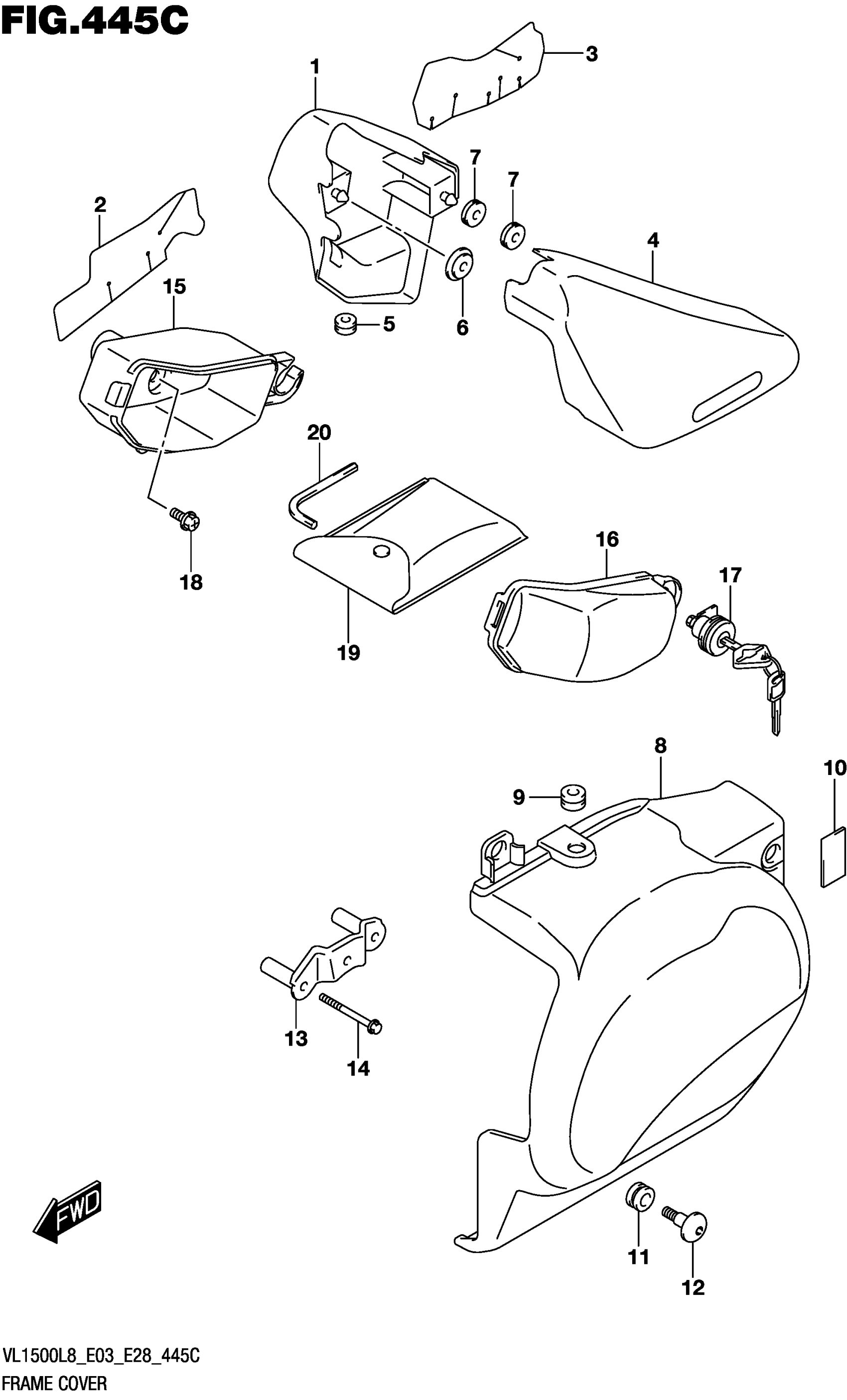

Suzuki VL1500BL8 (2018) FRAME COVER (VL1500BL8 E33) Diagram

#

Description
Price

1

COVER

47111-06J00-019

$107.27

2

SHIELD

47166-06J10

Unavailable

3

SHIELD

47166-06J20

$6.37

4

COVER

47211-40H00-019

Unavailable

5

CUSHION

47167-06J00

$8.63

6

CUSHION

47191-06J00

$5.48

7

CUSHION (8X26X7) | REAR

09320-08018

$2.80

8

COVER

47231-40H20

$134.80

9

CUSHION (6X18X6) | LH

09320-06504

$4.47

10

CUSHION | LH

51827-01A00

$6.95

11

CUSHION (9X18X9.5) | LH

09320-09016

$1.97

12

SCREW (6X20) | LH

09139-06190

$3.77

13

BRACKET

47250-06J00

$32.90

14

BOLT

01547-0650A

$2.51

15

BODY

92211-06J00

Unavailable

16

LID

92212-06J00

Unavailable

17

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

18

BOLT (6X12)

09111-06107

$2.66

19

TOOL ASSY This part replaces 09800-21056.

09800-21100

Unavailable

20

SPANNER,HEXAGON (6)

09816-00050

$5.47
