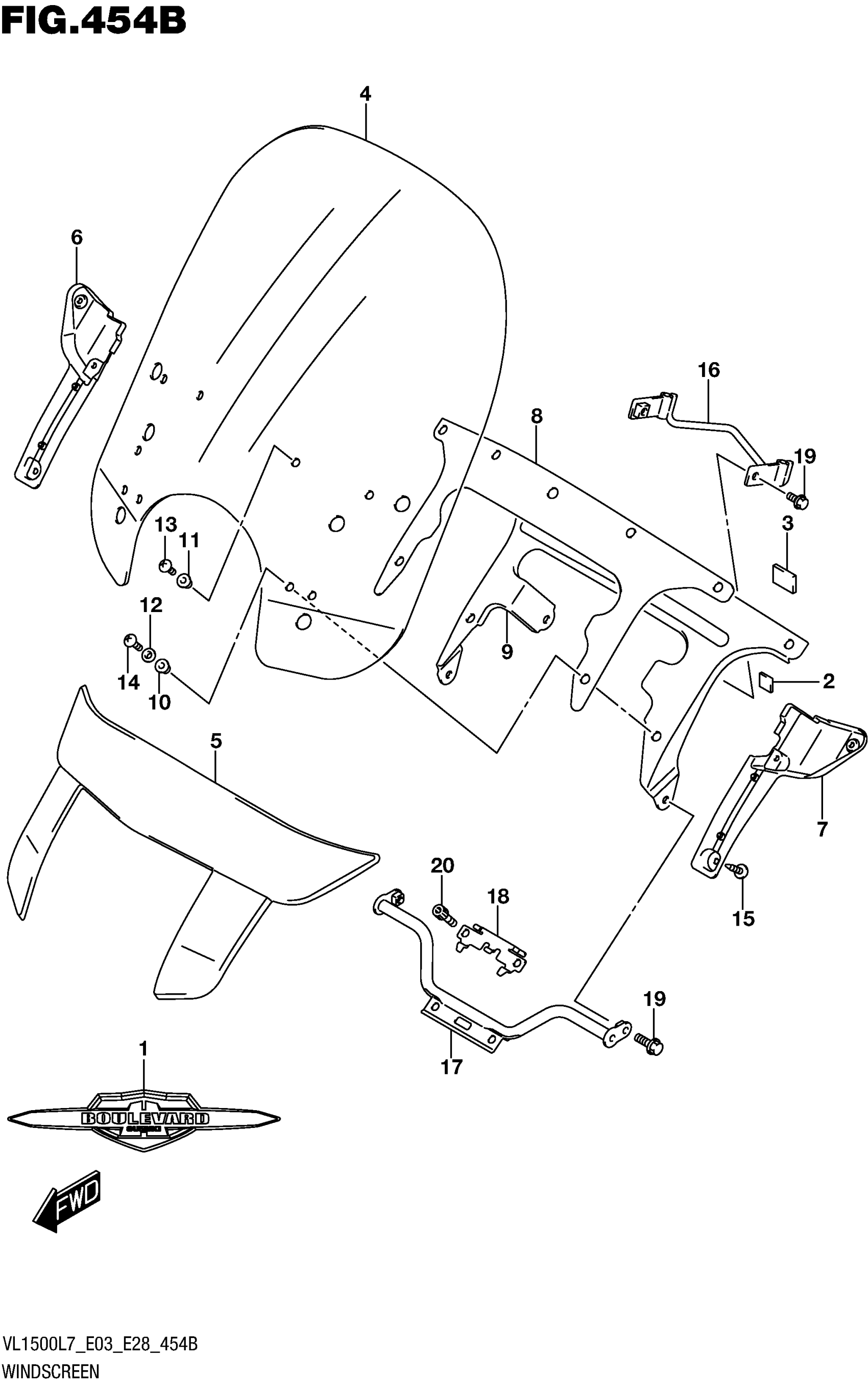

Suzuki VL1500BL7 (2017) WINDSCREEN (VL1500TL7 E03) Diagram

#

Description
Price

1

EMBLEM, WINDSCREEN

68181-06J00

$37.95

2

CUSHION, WINDSCREEN FRONT NO.

33652-48E00

$2.00

3

CUSHION, WINDSCREEN FRONT

94422-06G00

$6.57

4

WINDSCREEN

94611-06J00

$891.02

5

COVER, WINDSCREEN

94612-06J00

$193.68

6

PANEL, WINDSCREEN RH

94613-06J00

$19.40

7

PANEL, WINDSCREEN LH

94614-06J00

$19.40

8

CUSHION, WINDSCREEN REAR

94616-06J10

$203.30

9

BRACE, WINDSCREEN

94621-06J10

$235.60

10

NUT

09159-05019

$6.44

11

NUT

09159-05048

$6.61

12

WASHER (5.2X14X1.5)

09161-05017

$2.80

13

SCREW

02142-1516B

$3.08

14

SCREW

02142-1520B

$2.34

15

SCREW

03541-0516B

$1.77

16

BRACE, WINDSCREEN UPPER

94630-06J10

$120.47

17

BRACE, WINDSCREEN LOWER

94640-06J10

$120.47

18

PLATE, WINDSCREEN LOWER

94651-06J00

Unavailable

19

BOLT (8X16)

01550-0816A

$2.31

20

BOLT

07130-0845A

$4.70
