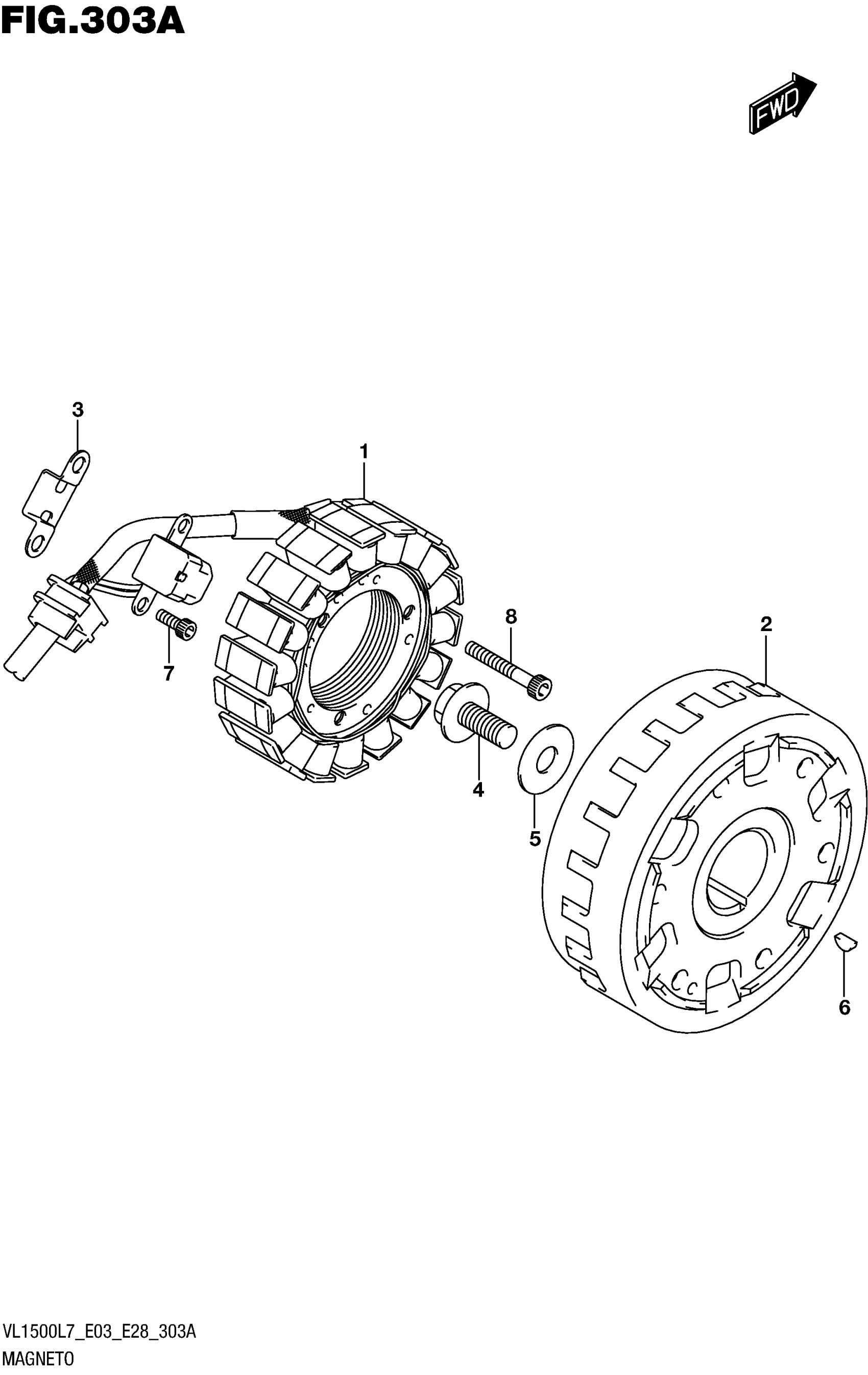

Suzuki VL1500BL7 (2017) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-40H00.

32101-40H01

$583.00

2

ROTOR ASSY, MAGNETO

32102-40H10

$724.40

3

CLAMP, MAGNETO LEAD

32371-40H00

Unavailable

4

BOLT (14X43)

09103-14001

$12.85

5

WASHER (14X29X4)

09160-14021

$7.20

6

KEY

08341-31059

$2.50

7

BOLT

07130-0512A

$2.19

8

BOLT

07130-0635A

$2.90
