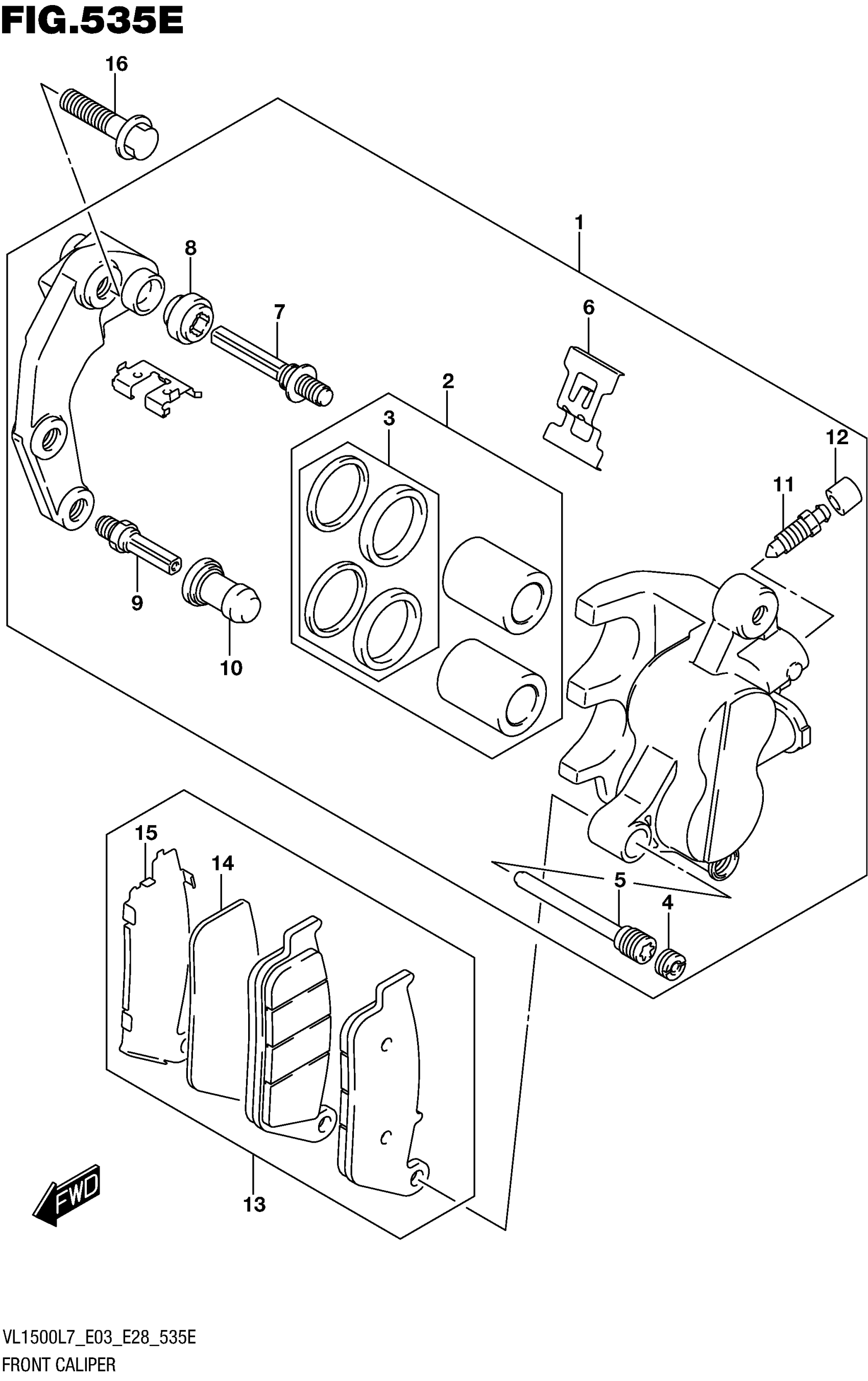

Suzuki VL1500BL7 (2017) FRONT CALIPER (VL1500TL7 E03) Diagram

Description

Price

CALIPER ASSY, FRONT

59300-06J10-999

Unavailable

.PISTON SET

59300-21810

$74.77

..SEAL SET, PISTON

59300-21860

$26.75

.PLUG, PIN

59146-21E10

$5.62

.PIN, HANGER

59145-21E10

$17.26

.SPRING, PAD

59115-21E10

$16.60

.PIN

59187-21E10

$30.18

.BOOT

59303-14500

$5.06

.PIN

59382-14500

$8.43

.BOOT

59386-13A00

$7.28

.BLEEDER

59121-01A00

$7.99

.CAP, BLEEDER

59122-46H00

$4.17

PAD SET

59300-06810

$90.48

.INSULATOR

59132-21E10

Unavailable

.RETAINER

59133-21E10

Unavailable

BOLT (8X35)

01550-0835A

$2.80
