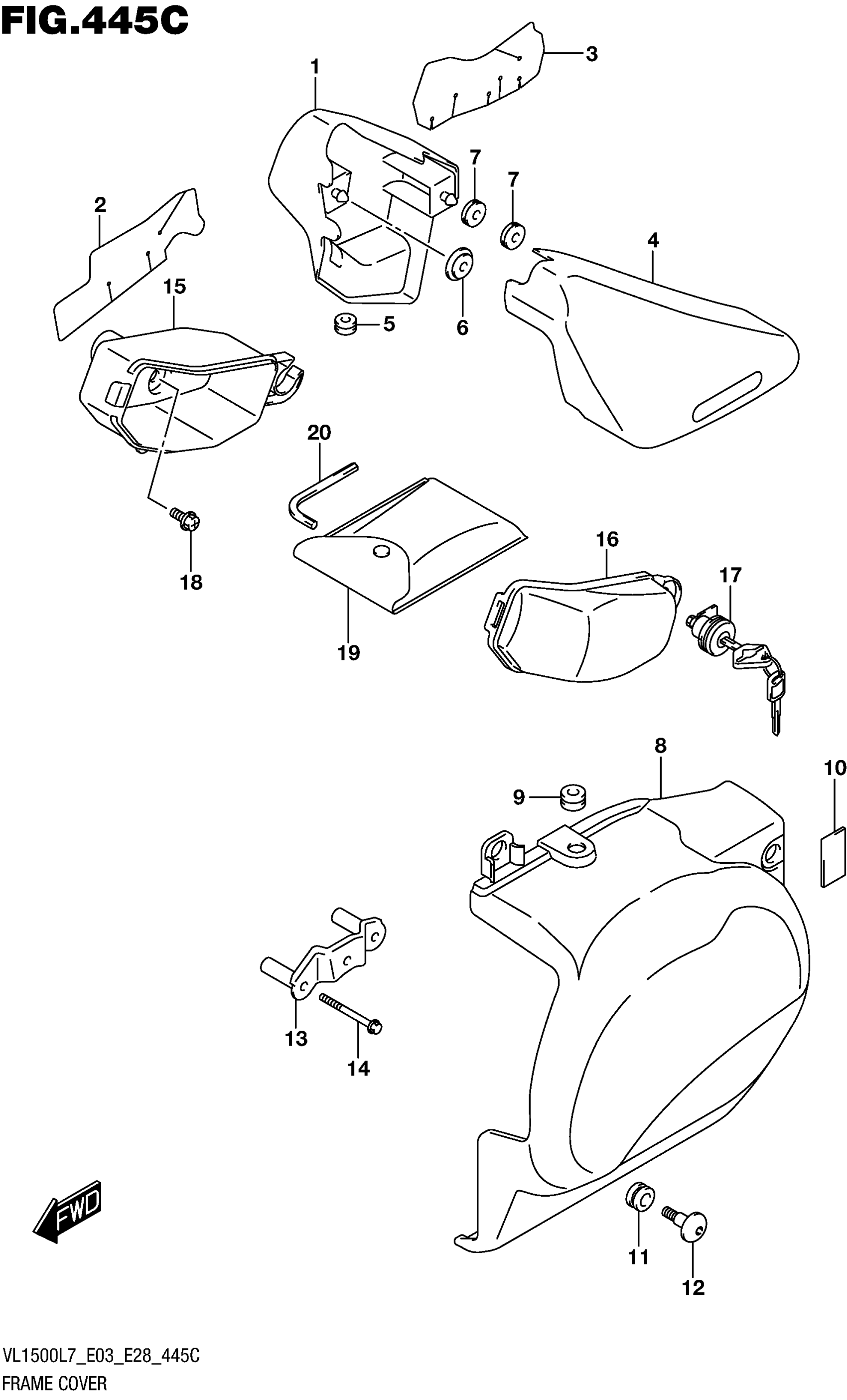

Suzuki VL1500BL7 (2017) FRAME COVER (VL1500BL7 E33) Diagram

#

Description
Price

1

COVER, SIDE RH (ORANGE)

47111-06J00-YUK

$112.63

2

SHIELD, SIDE COVER RH

47166-06J10

Unavailable

3

SHIELD, SIDE COVER RH

47166-06J20

$6.37

4

COVER, SIDE LH (ORANGE)

47211-40H00-YUK

Unavailable

5

CUSHION, SIDE COVER LOWER RH

47167-06J00

$8.63

6

CUSHION, SIDE COVER FRONT

47191-06J00

$5.48

7

CUSHION | REAR

09320-08018

$2.80

8

COVER, LOWER LH

47231-40H20

$134.80

9

CUSHION | LH

09320-06504

$4.47

10

CUSHION | LH

51827-01A00

$6.95

11

CUSHION | LH

09320-09016

$1.97

12

BOLT (6X20) | LH

09139-06190

$3.77

13

BRACKET, LOWER COVER LH

47250-06J00

$32.90

14

BOLT

01547-0650A

$2.51

15

BODY, LUGGAGE BOX

92211-06J00

Unavailable

16

LID

92212-06J00

Unavailable

17

LOCK SET,COVER This part replaces 95700-07860.

95700-07861

$69.50

18

BOLT (6X12)

09111-06107

$2.66

19

TOOL ASSY This part replaces 09800-21056.

09800-21100

Unavailable

20

SPANNER, 6 HEXAGON

09816-00050

$5.47
