2016 Suzuki VL1500BL6 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

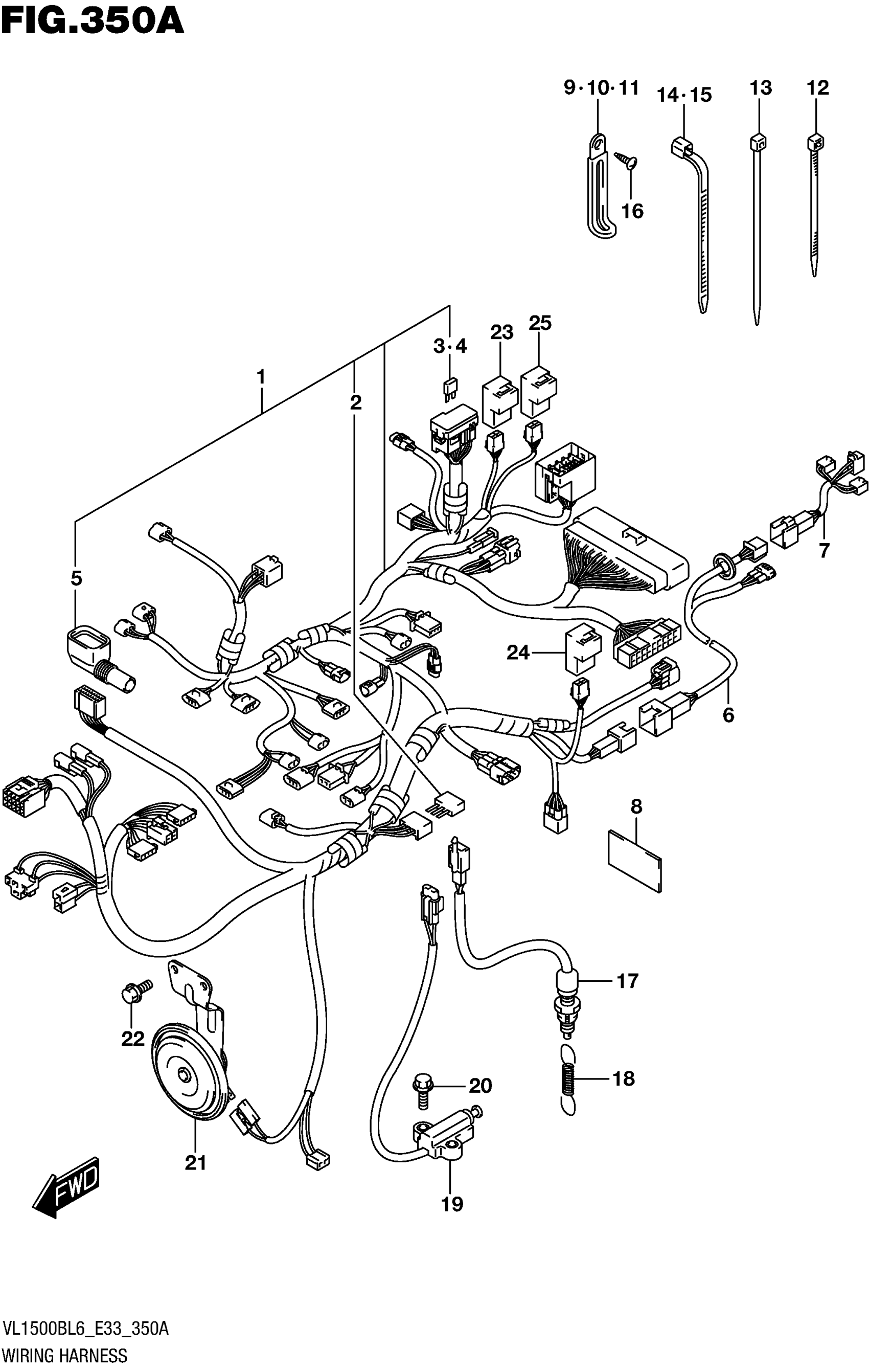

2016 Suzuki VL1500BL6 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-06J40

1
Out of stock

2

.DIODE

36611-38A10

1
Out of stock

3

.FUSE (10A)

09481-10501

4
Out of stock

4

.FUSE (15A)

09481-15501

2
Out of stock

5

.COVER, CONNECTOR

36618-41G00

1
Out of stock

6

WIRE, REAR COMBINATION

36858-06J00

1
Out of stock

7

WIRE, REAR COMBINATION NO.2

36856-41F00

1
Out of stock

8

TAPE,HARNESS (28X50X0.13)

36611-16G00

1
Out of stock

9

CLAMP (L:45)

09404-06429

3
Out of stock

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

2
Out of stock

11

CLAMP (L:135)

09404-06435

1
Out of stock

12

CLAMP (L:95)

09407-10403

2
Out of stock

13

CLAMP (L:145)

09407-14407

7
Out of stock

14

CLAMP (L:190)

09407-19401

5
Out of stock

15

CLAMP (L:235)

09407-25401

1
Out of stock

16

SCREW

03541-0512A

2
Out of stock

17

SWITCH ASSY, STOP LAMP

37740-19F00

1
Out of stock

18

SPRING

09443-06077

1
Out of stock

19

SWITCH ASSY,SID This part replaces 37840-22H00.

37840-22H01

1
Out of stock

20

BOLT

01547-0620A

2
Out of stock

21

HORN ASSY

38500-40H00

1
Out of stock

22

BOLT

01550-0612A

2
Out of stock

23

RELAY ASSY | FOR FUEL PUMP

38740-24X50

1
Out of stock

24

RELAY ASSY | FOR FAN MOTOR

38740-24X50

1
Out of stock

25

RELAY ASSY, HEADLAMP

38740-24A00

1
Out of stock
