2016 Suzuki VL1500BL6 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2016 Suzuki VL1500BL6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

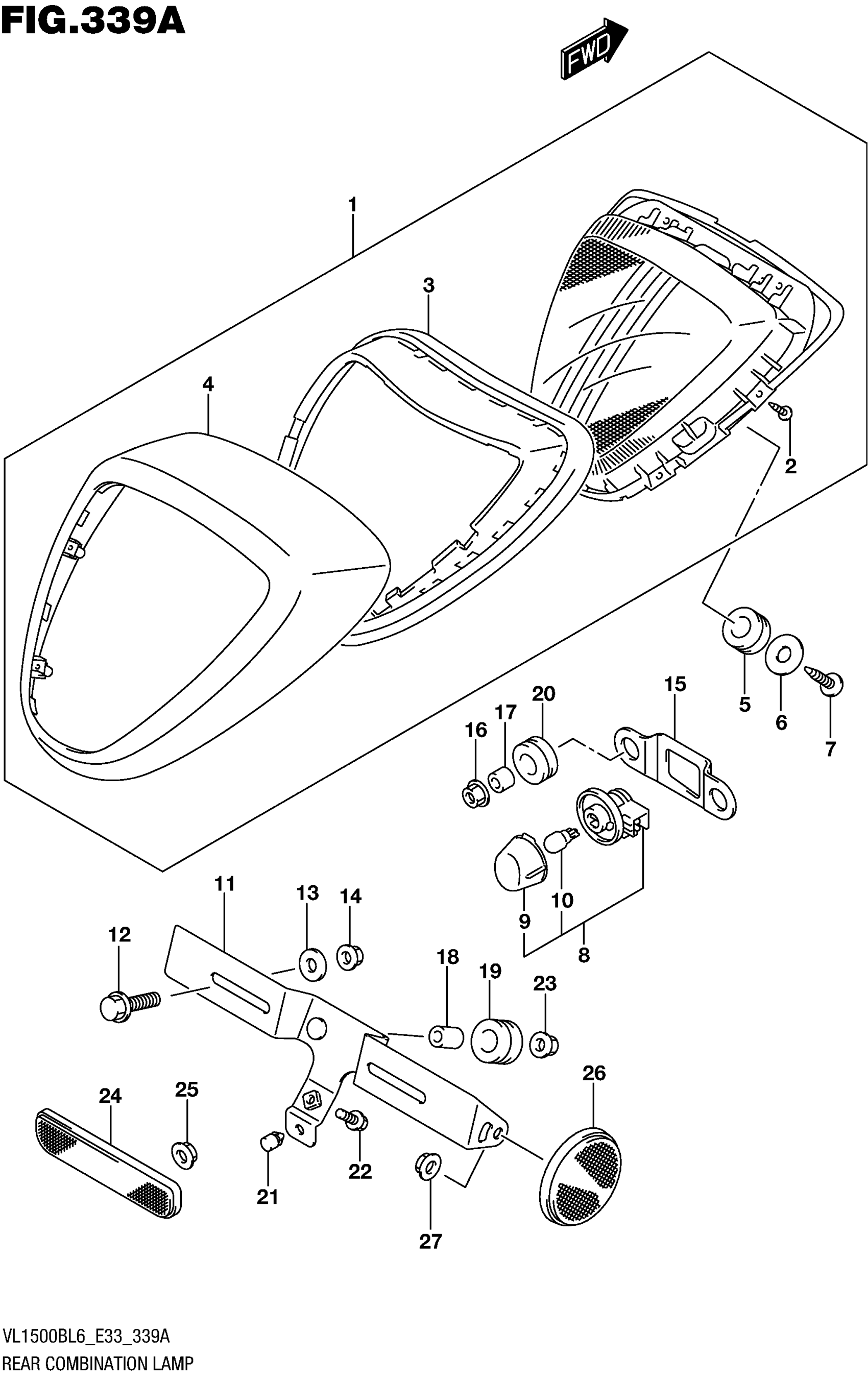

2016 Suzuki VL1500BL6 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$971.30

In stock

2

.SCREW (3X12)

35623-41400

6
Out of stock

3

.RUBBER

35713-06J00

1
Out of stock

4

.COVER

35717-06JB0

1

$368.07

In stock

5

CUSHION

09320-10067

3

$3.96

In stock

6

WASHER (5.5X20X1.2)

09160-05501

3

$2.02

In stock

7

SCREW

03541-0512A

3
Out of stock

8

LAMP ASSY, LICENSE

35910-14F01

1

$34.10

In stock

9

.LENS

35912-14F11

1

$9.35

In stock

10

.BULB (12V5W)

09471-12216

1
Out of stock

11

1

$42.57

In stock

12

BOLT (6X16)

09116-06168

2

$2.68

In stock

13

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

14

NUT

08316-1006A

2
Out of stock

15

BRACKET, LICENSE LAMP

35928-43H00

1

$12.93

In stock

16

NUT

09159-05049

2

$2.50

In stock

17

SPACER (5.5X9.5X10.5)

09180-05066

—
Out of stock

18

SPACER (6.5X10X12)

09180-06290

3
Out of stock

19

CUSHION

09320-10051

3

$3.03

In stock

20

CUSHION This part replaces 09320-10054.

09320-10073

2
Out of stock

21

CUSHION This part replaces 09321-06013.

09321-06036

1
Out of stock

22

BOLT

01550-0625A

1
Out of stock

23

NUT

08316-1006A

2
Out of stock

24

REFLECTOR ASSY, REAR

35970-05H00

1

$33.12

In stock

25

NUT

08316-1005A

2
Out of stock

26

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

27

NUT

08316-1005A

2
Out of stock
