2014 Suzuki VL1500BL4 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2014 Suzuki VL1500BL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

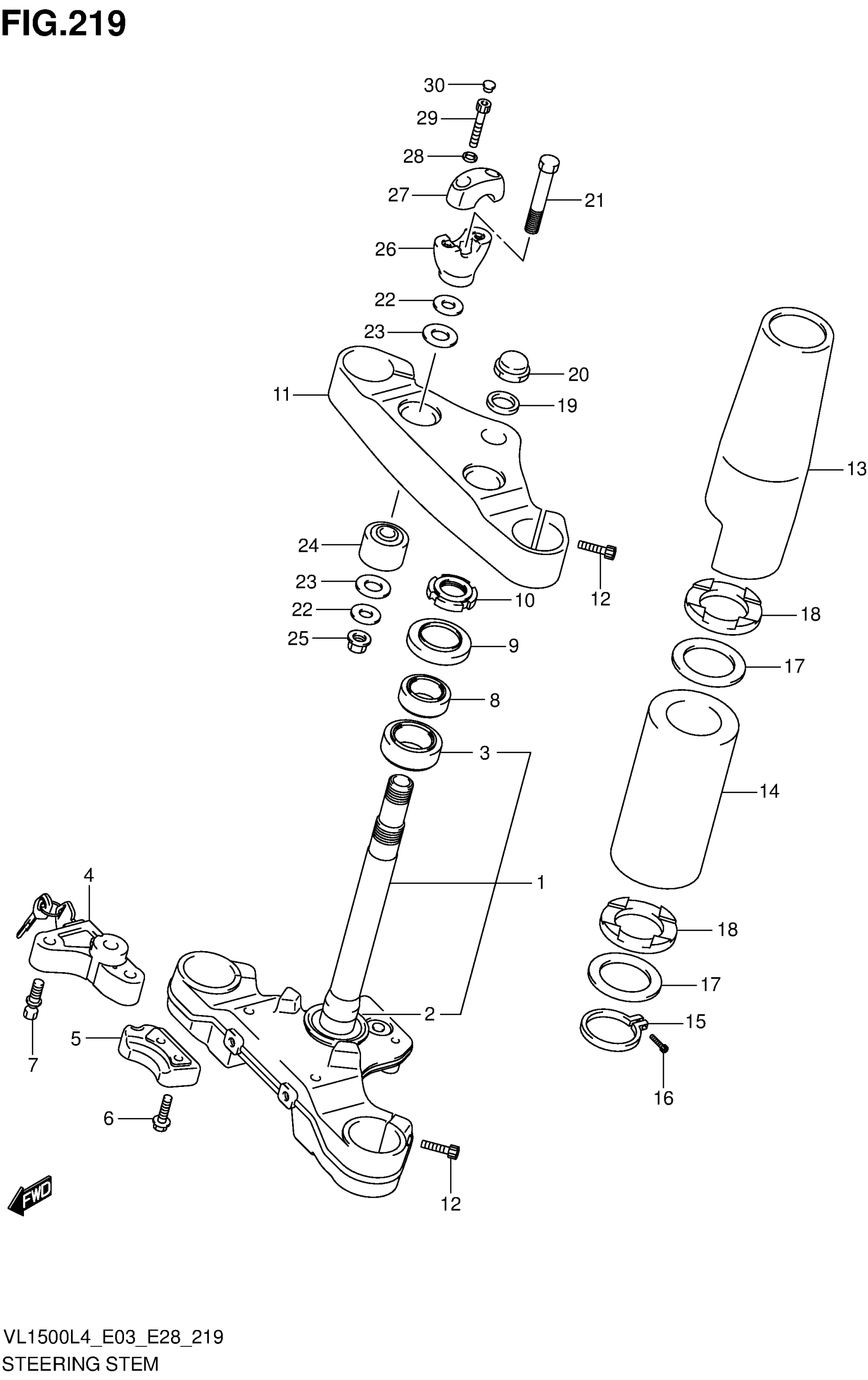

2014 Suzuki VL1500BL4 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEM, STEERING

51410-06J00

1
Out of stock

2

SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

BEARING (30X55X17)

09265-30020

1
Out of stock

4

LOCK SET, STEERING

51900-22820

1
Out of stock

5

BRACKET, STEERING LOCK

51921-40H00

1
Out of stock

6

BOLT (8X30)

09103-08197

2

$1.85

In stock

7

SCREW, STEERING LOCK

51925-48G00

2
Out of stock

8

BEARING (25X47X15)

09265-25038

1
Out of stock

9

SEAL,DUST This part replaces 51643-40502.

51643-40503

1
Out of stock

10

NUT, STEERING STEM

51631-31F00

1
Out of stock

11

BRACKET, UPPER

51311-06J20

1

$792.25

In stock

12

6

$4.98

In stock

13

COVER, UPPER

51531-06J20

2

$184.73

In stock

14

CASE, UNDER

51464-06J20

2
Out of stock

15

SPACER

51465-06J00

2

$83.45

In stock

16

BOLT

51466-10F00

2

$8.52

In stock

17

WASHER

51467-06J00

4
Out of stock

18

SEAT

51468-06J00

4
Out of stock

19

WASHER

51356-24B01

1

$7.13

In stock

20

NUT, STEM This part replaces 51353-38A01.

51353-24B00

1
Out of stock

21

BOLT

51226-10F70

2
Out of stock

22

WASHER

51354-41F20

4

$9.98

In stock

23

SEAT, RUBBER

56245-41F20

4

$9.17

In stock

24

DAMPER, RUBBER

56240-41F20

2

$46.13

In stock

25

NUT

56246-41F20

2

$14.22

In stock

26

HOLDER, HANDLE, LOWER

56221-06J20

2
Out of stock

27

HOLDER, HANDLE, UPPER

56211-06J20

2
Out of stock

28

WASHER

09164-08015

4
Out of stock

29

4

$4.98

In stock

30

CAP (OD:11)

09250-06011

4

$2.73

In stock
