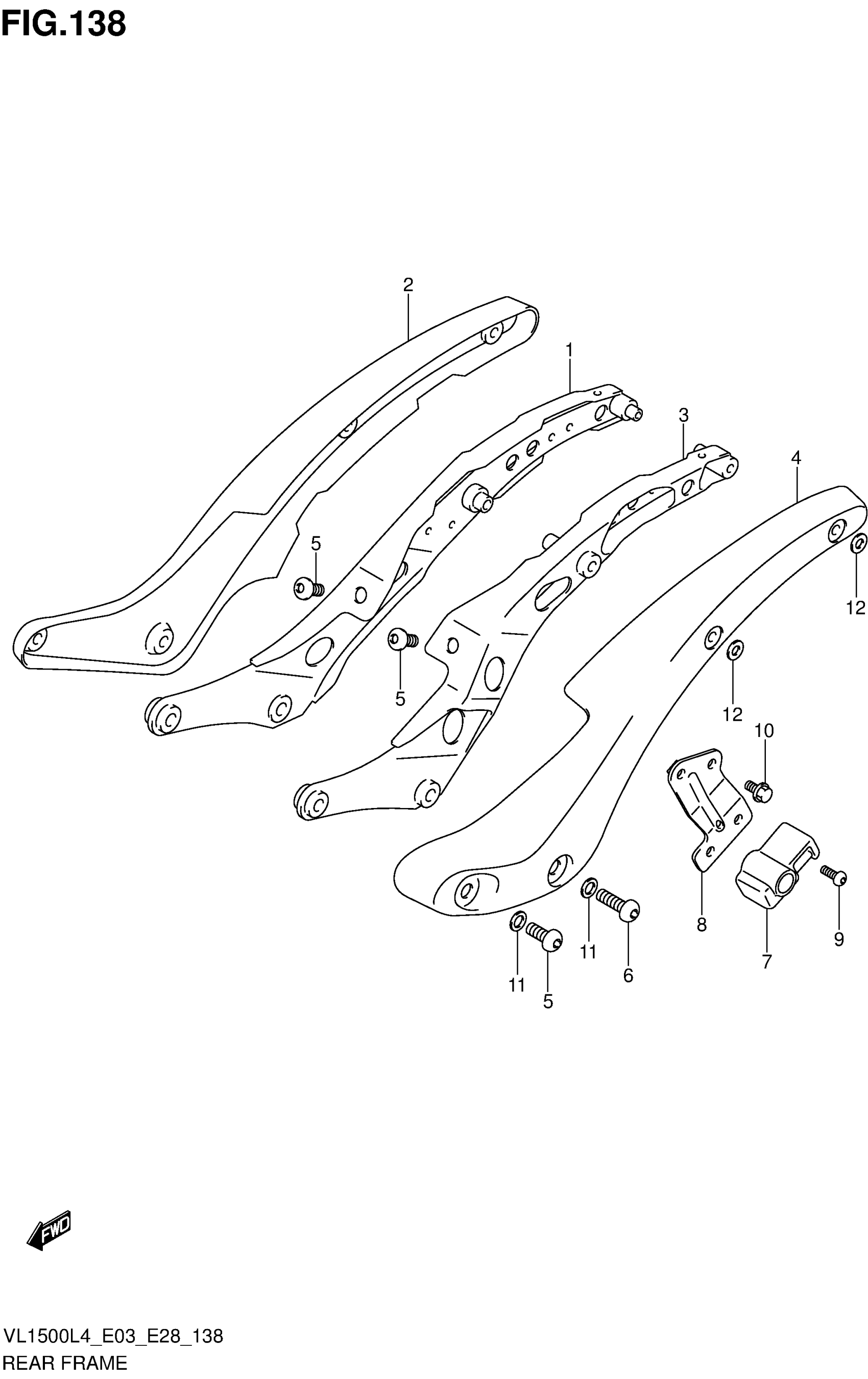

Suzuki VL1500BL4 (2014) REAR FRAME (VL1500BL4 E33) Diagram

#

Description
Price

1

FRAME, REAR RH

42650-06J00

Unavailable

2

PLATE, REAR FRAME RH

42651-06J10

Unavailable

3

FRAME, REAR LH

42660-06J00

$323.37

4

PLATE, REAR FRAME LH

42661-06J10

$351.10

5

BOLT (10X25)

09139-10003

$6.34

6

BOLT (10X35)

09139-10005

$10.33

7

LOCK SET HELMET

95700-41821

$171.60

8

BRACKET, HELMET LOCK

95710-06J00

Unavailable

9

SCREW (6X14)

09139-06089

$3.30

10

SCREW

02162-0612A

$1.93

11

WASHER, REAR FRAME FR

09160-10082

$1.62

12

WASHER, REAR FRAME RR

09160-08043

$1.81
