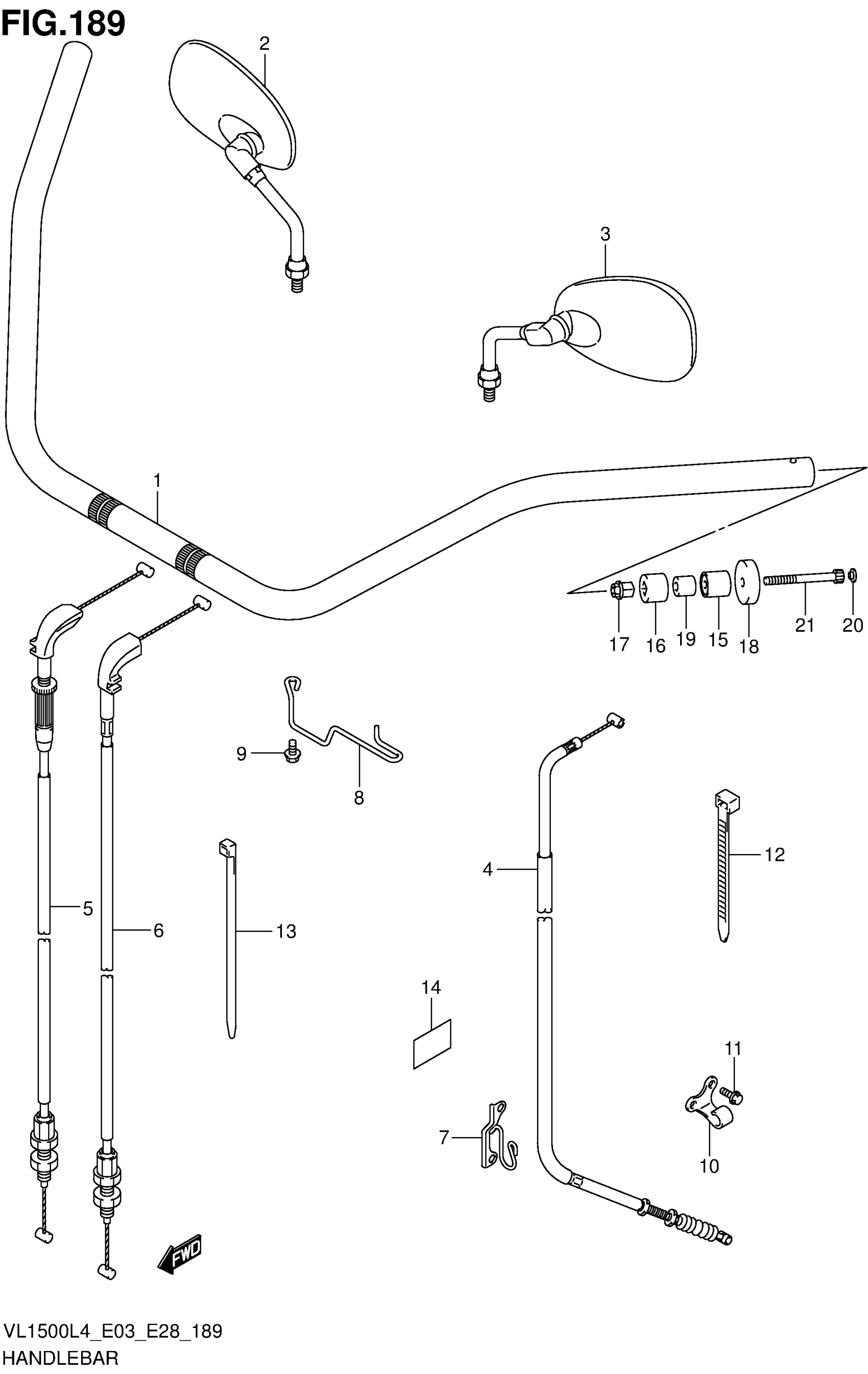

Suzuki VL1500BL4 (2014) HANDLEBAR (VL1500BL4 E28) Diagram

#

Description
Price

1

HANDLEBAR

56111-06J10

$182.55

2

MIRROR ASSY, REAR VIEW RH

56500-41F90

$171.78

3

MIRROR ASSY, REAR VIEW LH

56600-41F90

$170.95

4

CABLE ASSY, CLUTCH This part replaces 58200-06J00.

58200-06J01

$58.93

5

CABLE ASSY,THRO This part replaces 58300-06J00.

58300-06J01

$34.18

6

CABLE ASSY,THRO This part replaces 58300-06J10.

58300-06J11

$30.60

7

GUIDE, CLUTCH CABLE

58620-06J10

Unavailable

8

GUIDE, CABLE

58621-06J00

Unavailable

9

BOLT

01550-0612A

$1.97

10

STOPPER, CLUTCH CABLE

58634-40H00

$17.40

11

BOLT

01547-0612A

$2.01

12

CLAMP (L:190)

09407-19401

$3.32

13

CLAMP (L:145)

09407-14407

$2.80

14

PROTECTOR, THROTTLE CABLE

94474-17H00

$5.18

15

EXPANDER, BALANCER NO.2

56271-26D20

$5.42

16

EXPANDER, BALANCER

56272-10G10

$4.46

17

NUT

56273-10G10

$7.92

18

BALANCER, HANDLEBAR

56278-22H00

$58.95

19

.SPACER (6.5X16X15)

09180-06161

$7.10

20

CAP (OD:10)

09250-05008

$3.44

21

BOLT

07130-0660A

$3.70
