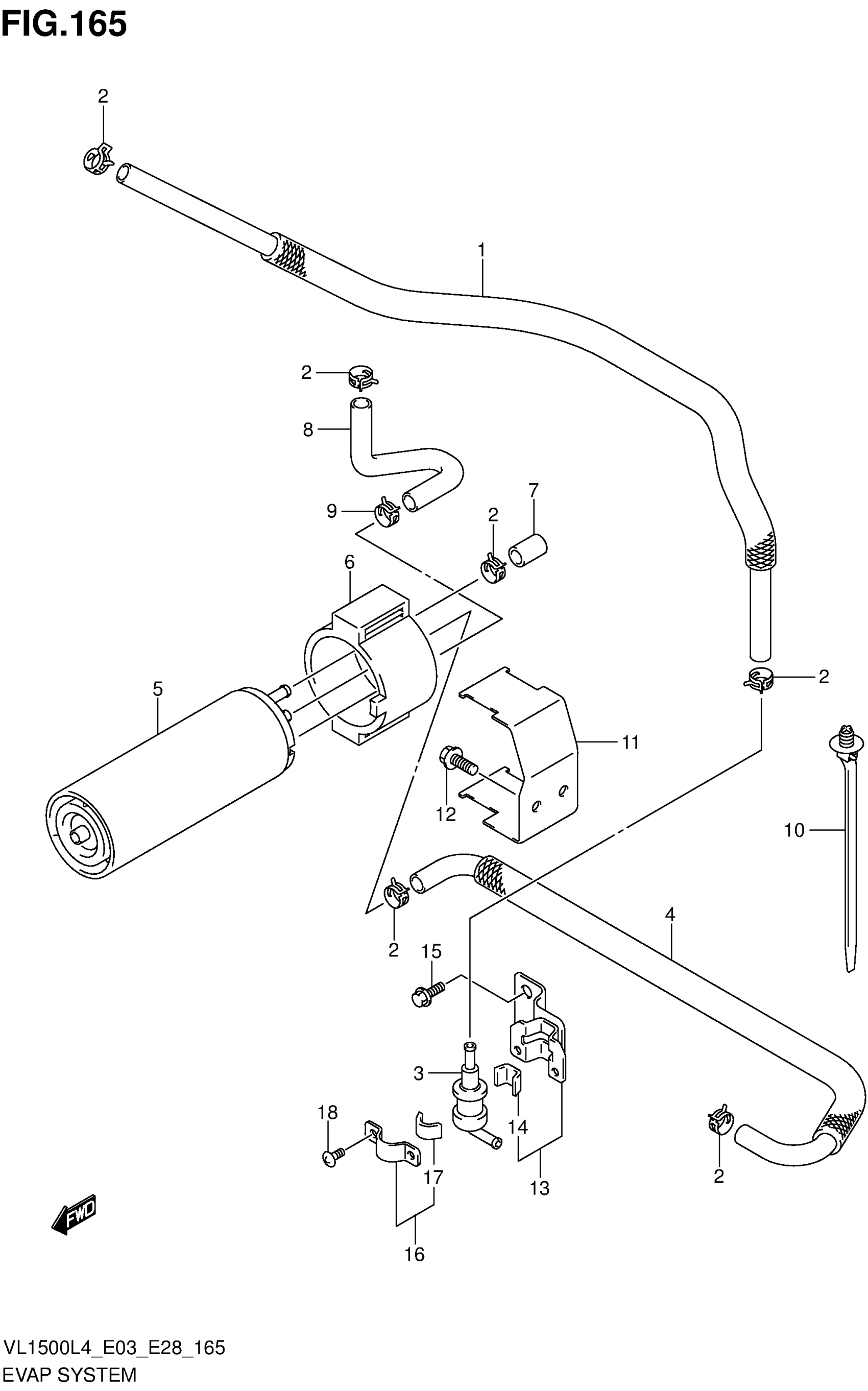

Find the part on the Evap System diagram for your 2014 Suzuki VL1500BL4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Suzuki VL1500BL4 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE

44434-40H00

1
Out of stock

2

CLIP

09401-11413

6
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

HOSE, VALVE & CANISTER

13681-06J00

1
Out of stock

5

CANISTER ASSY

17210-15H00

1
Out of stock

6

CUSHION

17211-06J00

1
Out of stock

7

CAP

09251-07003

1
Out of stock

8

HOSE, CANISTER PURGE

13682-06J00

1
Out of stock

9

CLIP

09401-12404

1
Out of stock

10

CLAMP (L:154)

09407-17403

1
Out of stock

11

BRACKET, CANISTER

17221-06J00

1
Out of stock

12

BOLT

01550-0612A

2
Out of stock

13

BRACKET, BREATHER VALVE

44880-40H00

1
Out of stock

14

CUSHION (10X30X2)

44894-24A00

1
Out of stock

15

BOLT

01547-0610A

1
Out of stock

16

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

17

CUSHION (10X30X2)

44894-24A00

1
Out of stock

18

SCREW

02142-0408A

2
Out of stock
