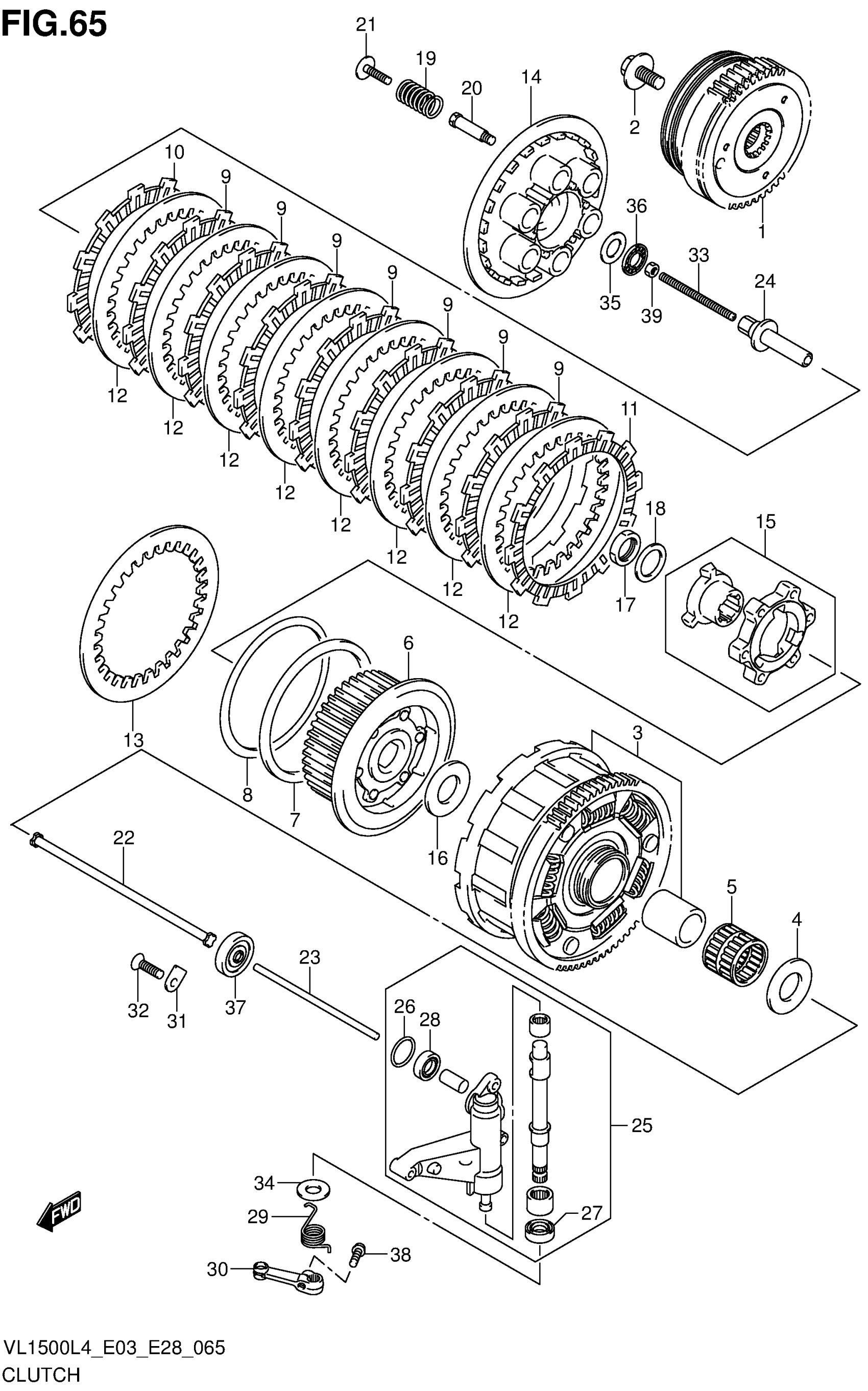

Suzuki VL1500BL4 (2014) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE (NT:54)

21100-40820

Unavailable

2

BOLT (14X28)

09103-14010

$19.02

3

GEAR This part replaces 21200-40890.

21200-40891

$608.33

4

WASHER (25X52X2.5)

09160-25074

$10.00

5

BEARING (35X40X39.8)

09263-35013

$32.08

6

HUB, CLUTCH SLEEVE

21410-40H00

Unavailable

7

.SEAT,WAVE WASHER

21471-24F00

$13.05

8

.WASHER,CLUTCH PLATE WAVE

21472-24F00

$14.59

9

PLATE, CLUTCH DRIVE (T:3.8)

21441-24F40

$40.03

10

PLATE, CLUTCH DRIVE (T:3.8)

21441-24F10

$21.99

11

PLATE, CLUTCH DRIVE (T:3.8)

21442-24F00

$22.11

12

.PLATE,CLUTCH DRIVEN NO.1 (T:

21451-24F00

$10.61

13

PLATE, CLUTCH DRIVEN (T:2.3)

21451-24F10

$10.61

14

DISC, CLUTCH PRESSURE

21462-16G00

$76.32

15

CAM SET, CLUTCH

21610-02F20

$277.12

16

WASHER (25X50X3.5)

09160-25079

Unavailable

17

NUT

09159-24010

$11.92

18

WASHER

09164-24008

$5.00

19

SPRING, CLUTCH

21413-06J00

$9.15

20

BOLT, CLUTCH SPRING SUPPORT

21481-24F32

$9.29

21

BOLT, CLUTCH SPRING

21482-24F30

$3.22

22

ROD, CLUTCH

23110-24F00

$20.93

23

ROD, CLUTCH PUSH LH

23111-40H00

Unavailable

24

PIECE, CLUTCH PUSH

23121-41G00

$55.32

25

CAMSHAFT SET, CLUTCH RELEASE

23120-41810

Unavailable

26

O RING (D:2.5,ID:21)

09280-21008

$1.89

27

OIL SEAL (10X20X6)

09282-10012

$7.20

28

OIL SEAL (10X17X5)

09285-10004

$3.04

29

SPRING, CLUTCH RELEASE RETURN

23125-48G00

$4.47

30

ARM, CLUTCH RELEASE

23271-48G10

$102.83

31

RETAINER

24741-20A00

$2.80

32

SCREW (6X12)

09126-06011

$2.01

33

SCREW (6X73)

09134-06015

$6.21

34

WASHER (10.5X24X1)

09160-10020

$1.86

35

WASHER (15.5X28X1)

09160-15045

$3.52

36

BEARING (15X28X2)

09263-15003

$7.49

37

OIL SEAL (6X18X5)

09283-06005

$12.27

38

BOLT

01547-0620A

$2.01

39

NUT

08310-0006A

$1.83
