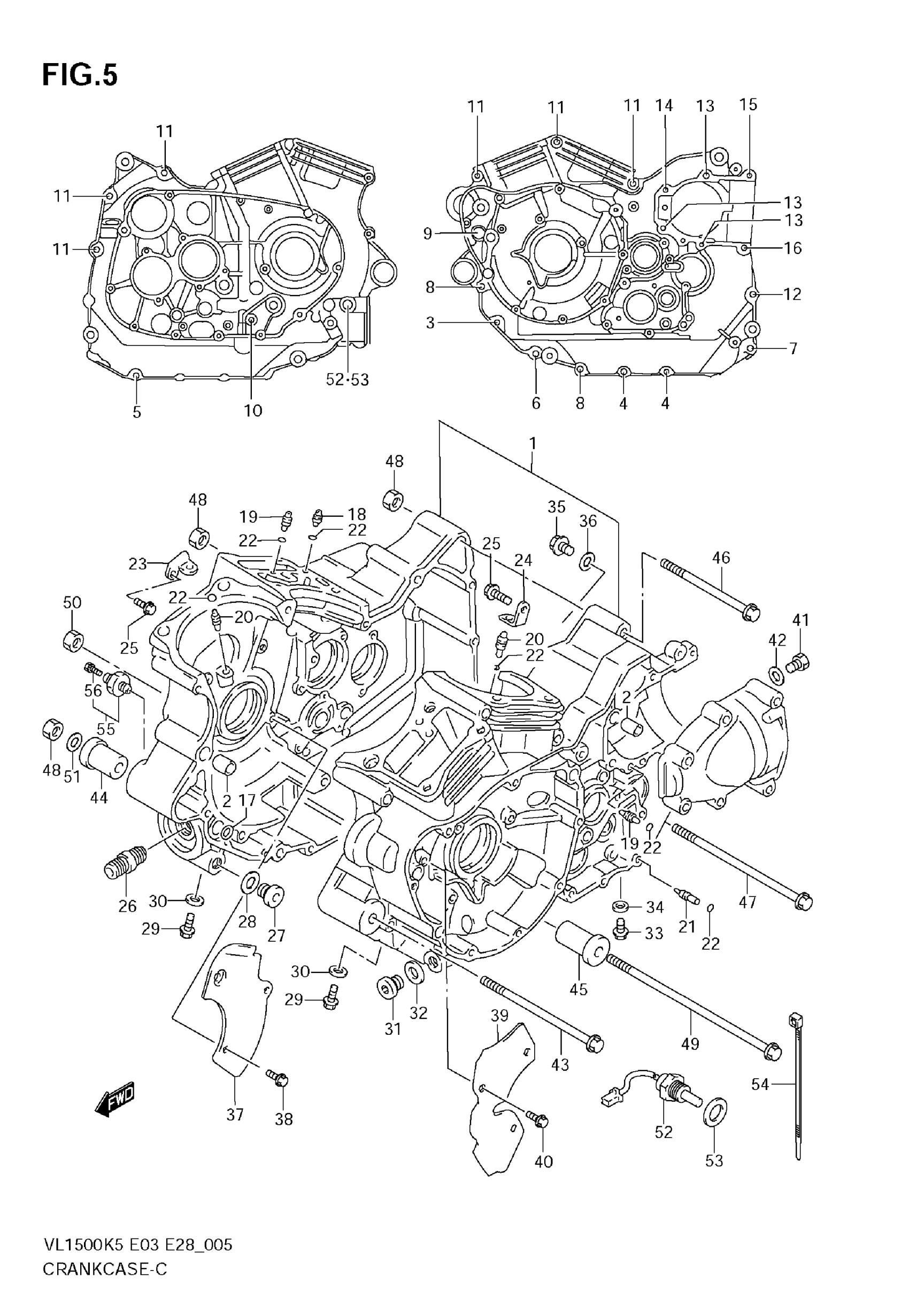

Suzuki VL1500 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 26

11300-10872

Unavailable

2

PIN

09206-11007

$2.63

3

BOLT

01550-0655B

$3.58

4

BOLT

01550-0665B

$3.70

5

BOLT

01550-0685B

$4.62

6

BOLT

01550-0855B

$4.58

7

BOLT

01550-0865B

$3.07

8

BOLT (8X70)

01550-0870B

Unavailable

9

BOLT

01550-0890B

$5.83

10

BOLT (8X115)

09103-08098

$4.20

11

BOLT (8X95)

09103-08164

$5.17

12

BOLT (8X80)

01550-0880B

Unavailable

13

BOLT

01550-0840B

$4.45

14

BOLT

01550-0850B

Unavailable

15

BOLT

01550-0855B

$4.58

16

BOLT

01550-0865B

$3.07

17

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

18

JET, HEAD COOLING

09493-44002

Unavailable

19

JET, HEAD/SECONDARY

09493-28010

$18.00

20

JET, PISTON COOLING

09493-80009

$22.52

21

JET, MISSION

09493-24011

Unavailable

22

O RING, JET (D:1.2,ID:4.0)

09280-04004

$1.76

23

PLATE, PISTON JET, FRONT

16438-38B00

Unavailable

24

PLATE, PISTON JET, REAR

16439-38B00

Unavailable

25

BOLT

01550-0612B

$2.38

26

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

$6.45

27

PLUG, CONTROL PLUNGER (16X8)

09248-16012

$4.19

28

GASKET

09168-16002

$1.89

29

PLUG, OIL GALLERY

01550-0812B

$2.73

30

GASKET (8.2X14X1)

09168-08016

$1.64

31

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

32

GASKET

09168-14002

$2.83

33

PLUG, MISSION GALLERY

01550-0610B

$2.43

34

GASKET (5.8X13X1.2)

09168-06023

$2.01

35

PLUG, MAIN GALLERY END

09247-12006

$2.80

36

GASKET

09168-12002

$1.59

37

PLATE, OIL SEPARATOR

11521-38B01

Unavailable

38

BOLT

09125-06110

$2.13

39

PLATE, OIL SEPARATOR FRONT

11522-10F00

Unavailable

40

BOLT

01547-0612B

$1.22

41

PLUG, OIL DRAIN

09247-12106

$2.73

42

GASKET

09168-12002

$1.59

43

BOLT (10X205)

09103-10145

$15.65

44

SPACER

11621-10F10

Unavailable

45

SPACER (L:27)

11610-20C00

$17.40

46

BOLT (10X140)

09103-10119

$10.42

47

BOLT (10X160)

09103-10278

$13.48

48

NUT

08319-3110B

$4.20

49

BOLT (10X260)

09103-10226

$18.20

50

NUT

09159-10047

$8.62

51

WASHER, FRONT LOW (10.5X20X3.2)

09160-10502

Unavailable

52

SENSOR, OIL TEMP

13650-42F10

$131.02

53

.GASKET (14X20X1.5)

09168-14015

$2.01

54

CLAMP | MODEL K5

09407-14407

$2.80

54

CLAMP | MODEL K6/K7/K8/K9

09407-10404

$2.71

55

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 56 This part replaces 37820-33D10.

37820-33D11

$27.58

56

BOLT

37822-33D00

$4.92
