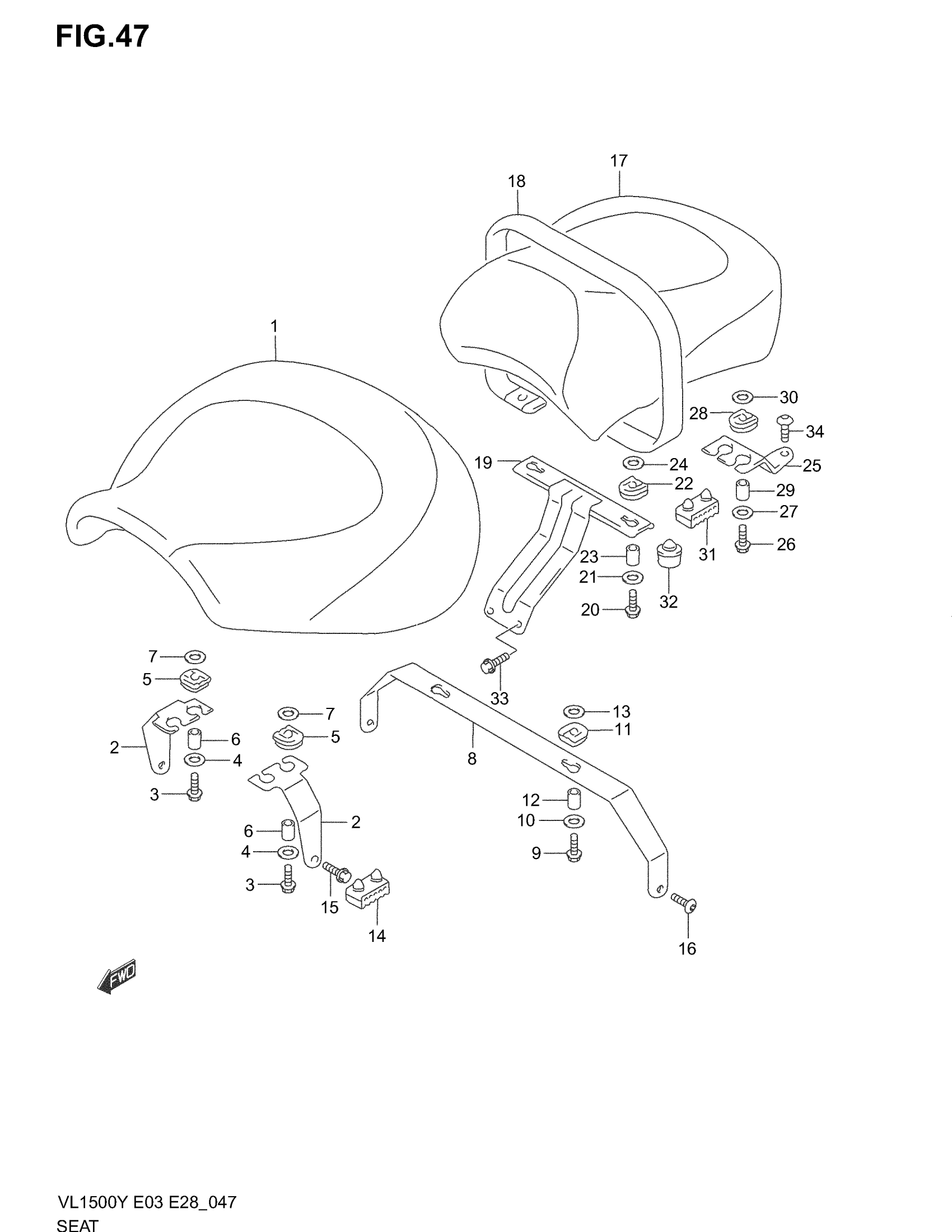

Suzuki VL1500 (2004) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | MODEL W/X/Y

45100-10F00-R22

Unavailable

1

SEAT ASSY (BLACK) | MODEL K1/K2/K3/K4; Includes Item(s) 2 - 14

45100-10F10-P8Z

Unavailable

2

BRACKET, FRONT

45115-10F00

Unavailable

3

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

4

WASHER

09160-06066

$1.97

5

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.42

6

SPACER

45216-06B00

$3.80

7

WASHER

09160-06066

$1.97

8

BRACKET, REAR

45116-10F00

Unavailable

9

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

10

WASHER

09160-06066

$1.97

11

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.42

12

SPACER

45216-06B00

$3.80

13

WASHER

09160-06066

$1.97

14

CUSHION

45149-31300

$3.41

15

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

16

BOLT, REAR (8X16)

09106-08140

$5.92

17

SEAT ASSY, PILLION (BLACK) | MODEL W/X/Y

45300-10F00-R22

Unavailable

17

SEAT ASSY, PILLION (BLACK) | MODEL K1/K2/K3/K4; Includes Item(s) 18 - 32

45300-10F10-FW5

Unavailable

18

BAND ASSY (BLACK)

45180-10F00-R22

Unavailable

19

BRACKET, FRONT

45315-10F00

Unavailable

20

BOLT This part replaces 01550-06303.

01550-0630A

$2.38

21

WASHER

09160-06066

$1.97

22

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.42

23

SPACER

45216-06B00

$3.80

24

WASHER

09160-06066

$1.97

25

BRACKET, REAR

45316-10F00

Unavailable

26

BOLT This part replaces 01550-06253.

01550-0625A

$2.01

27

WASHER

09160-06066

$1.97

28

CUSHION This part replaces 45215-06B00.

45215-06B01

$3.42

29

SPACER

45216-06B00

$3.80

30

WASHER

09160-06066

$1.97

31

CUSHION

45149-31300

$3.41

32

CUSHION

09321-10011

$2.80

33

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

34

BOLT, REAR (8X16)

09106-08140

$5.92
