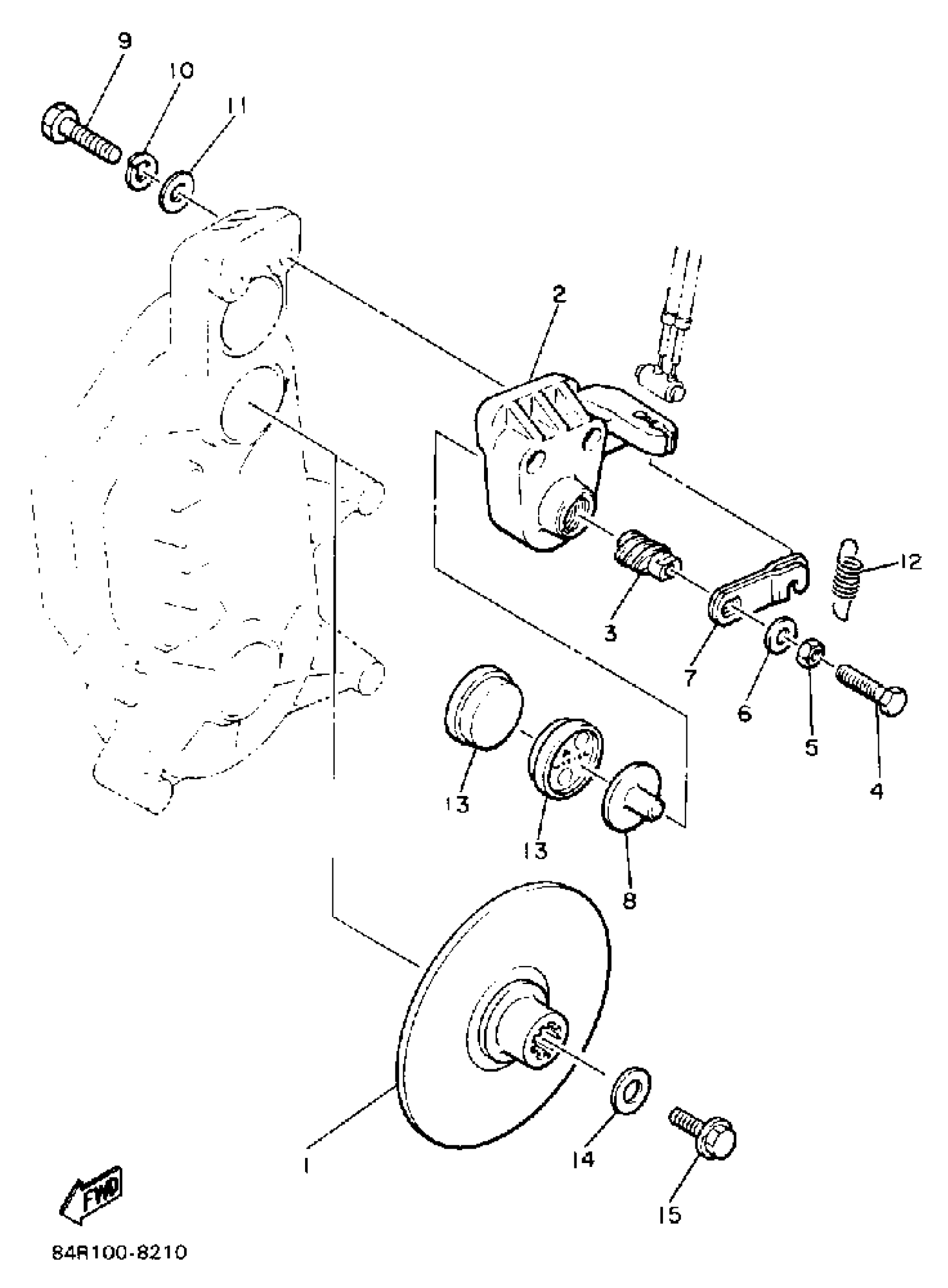

Yamaha VK540M (VK540) 1988 BRAKE Diagram

#

Description
Price

1

DISC, BRAKE (RIGHT)

83R-25831-00-00

Unavailable

2

BODY, CALIPER 1

84R-25731-00-00

Unavailable

3

CAM

878-25728-00-00

Unavailable

4

BOLT (8K4)

90101-08499-00

Unavailable

5

. NUT

95380-08700-00

$3.05

6

.. WASHER, PLATE

92990-08600-00

$2.17

7

LEVER, BRAKE

878-25726-00-00

Unavailable

8

PLATE, BACK UP

878-25733-00-00

Unavailable

9

BOLT

97017-10055-00

$3.73

10

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

11

WASHER, PLATE

92990-10600-00

$2.57

12

SPRING, COMPRESSION

90501-23337-00

Unavailable

13

PAD, CALIPER 2

89J-25811-00-00

$23.03

14

WASHER PLATE (3L6)

90201-10742-00

$6.70

15

BOLT, FLANGE

95817-10020-00

$4.89
