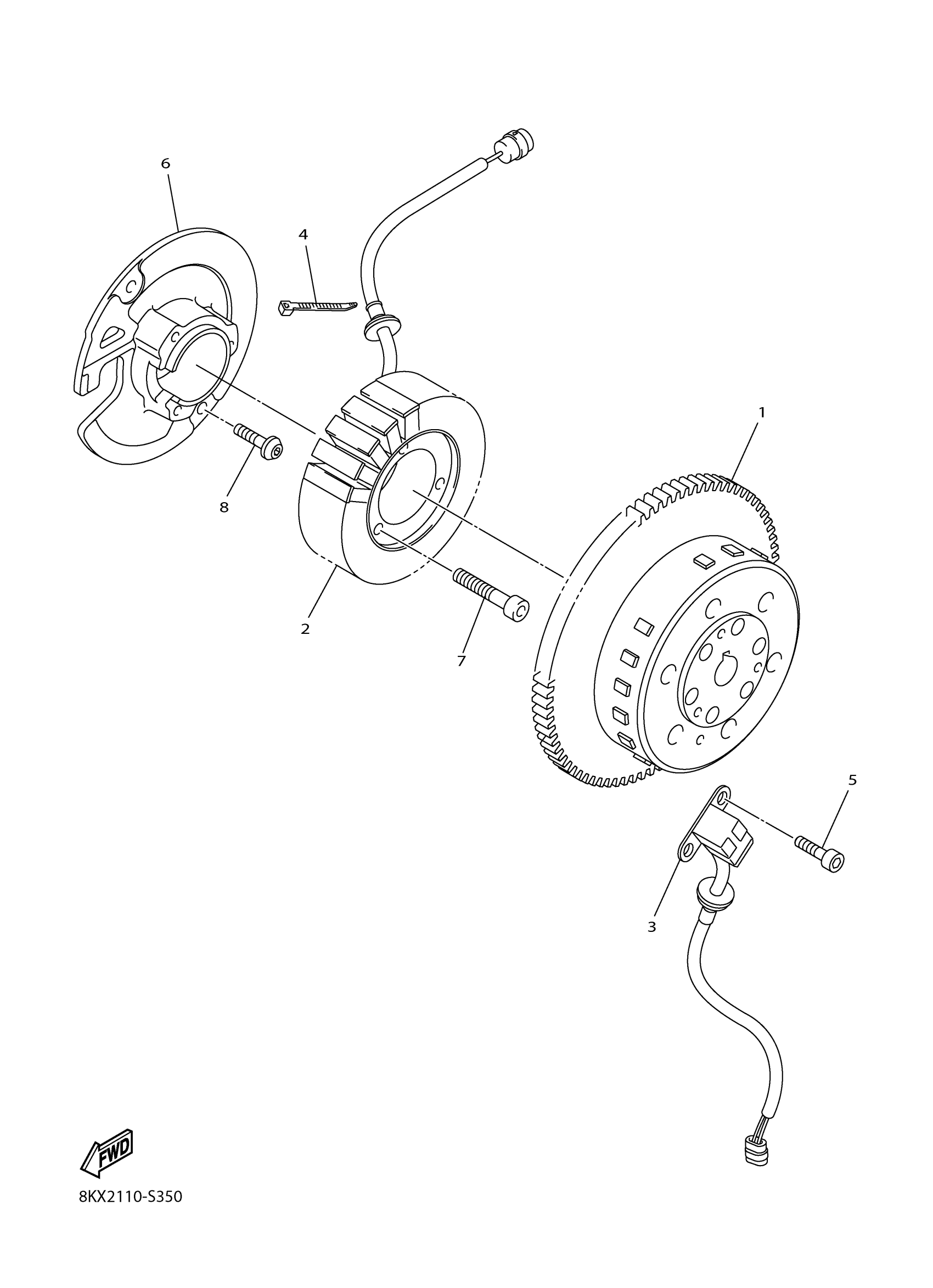

Yamaha VK540FHW (VK540) 8KX21 2017 GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

8KX-81450-00-00

Unavailable

2

STATOR ASSY

8KX-81410-00-00

$426.99

3

PICK-UP ASSY

8KX-81670-00-00

Unavailable

4

CLAMP

90465-10098-00

$2.24

5

BOLT, SOCKET

91317-05016-00

$2.31

6

BASE, PLATE 2

8KX-81412-00-00

$52.58

7

BOLT(J17)

91312-06035-00

$2.31

8

BOLT, BUTTON HEAD

92012-06016-00

$5.80
