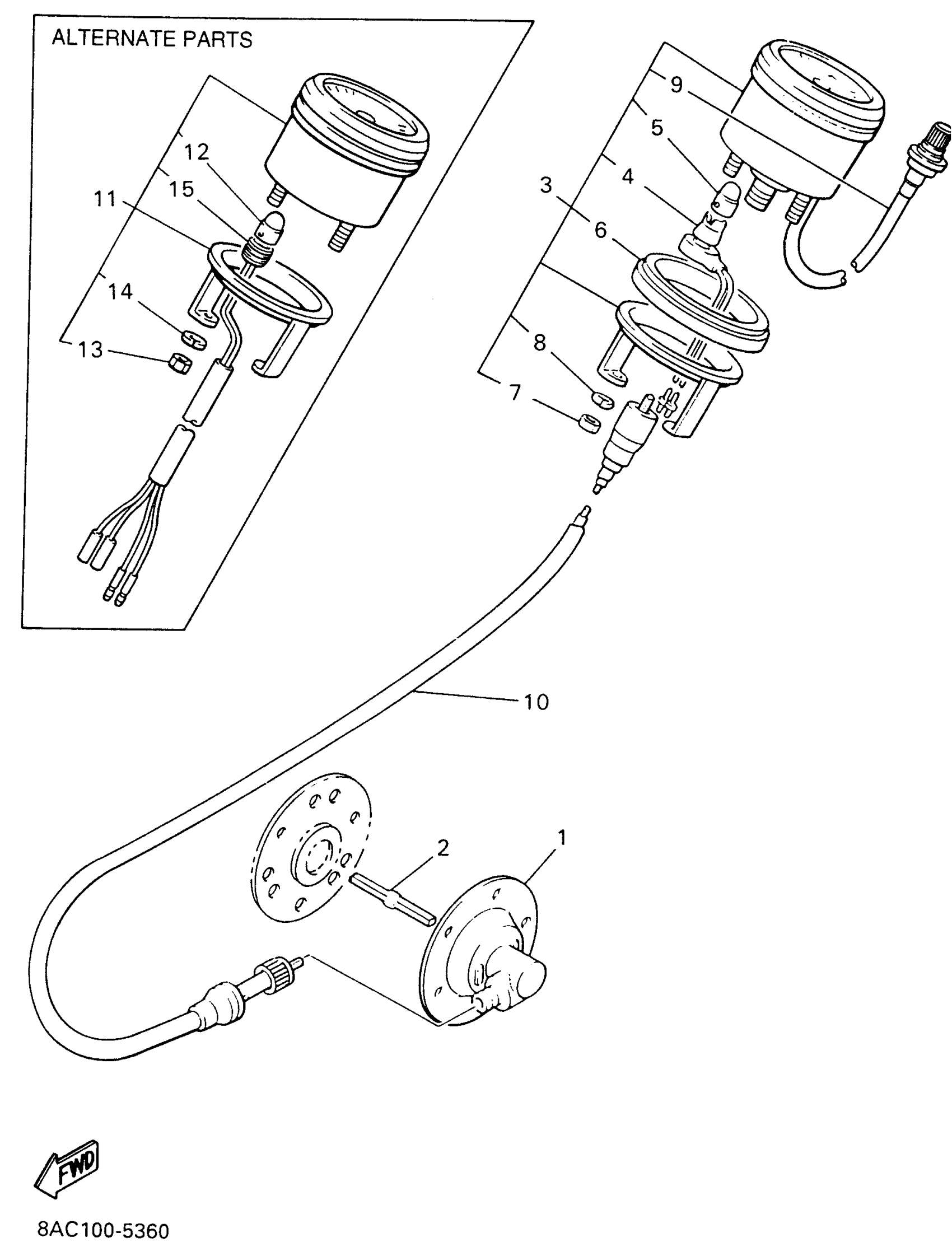

Find the part on the Meter diagram for your 1996 Yamaha VK540 Ii (VK540EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha VK540 Ii (VK540EW) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER GEAR HOUSING COMP

83R-47700-00-00

—
Out of stock

2

JOINT

8K4-47715-00-00

1
Out of stock

3

SPEEDOMETER ASSY

87R-83510-40-00

—
Out of stock

4

SOCKET CORD ASSY

5E2-83509-20-00

1
Out of stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—
Out of stock

7

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

TRIP METER CABLE ASSY

8K1-83603-01-00

—
Out of stock

10

TACHOMETER CABLE ASSY

8H4-83560-00-00

1
Out of stock

11

TACHOMETER ASSY

85L-83540-00-00

1
Out of stock

12

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

SOCKET CORD ASSY

85L-83509-00-00

—
Out of stock
