1996 Yamaha VK540 II (VK540EW) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1996 Yamaha VK540 II (VK540EW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

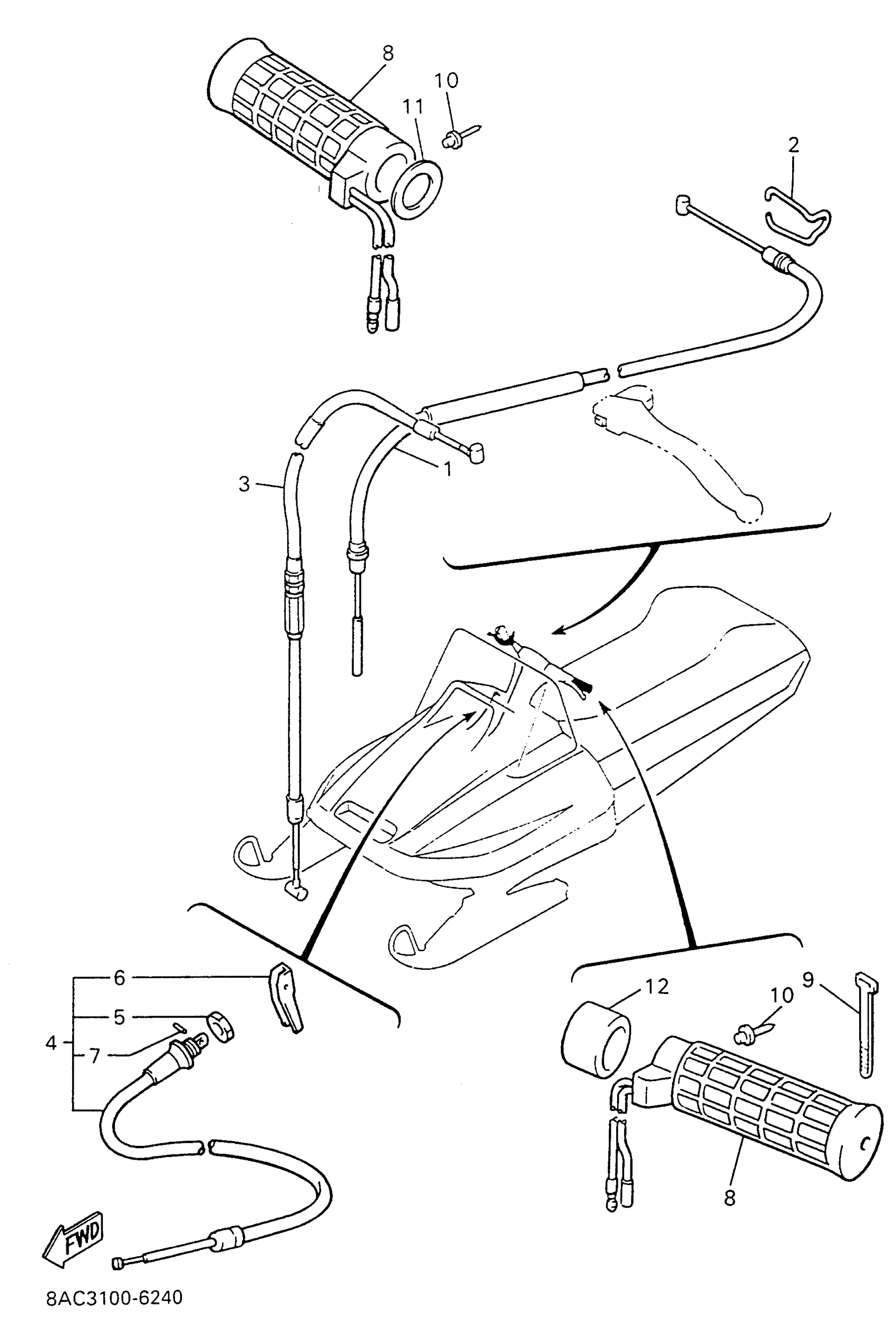

1996 Yamaha VK540 II (VK540EW) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, THROTTLE 1

83R-26311-10-00

—

$31.77

In stock

2

CLAMP (8X0)

90465-10189-00

1

$2.57

In stock

3

CABLE, BRAKE

87R-26340-01-00

—

$66.35

In stock

4

CABLE, STARTER 1

89X-26331-00-00

1
Out of stock

5

Nut

8G8-26333-00-00

—

$7.35

In stock

6

KNOB, STARTER

8U9-26325-00-00

1

$10.03

In stock

7

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

8

88T GRIP BLACK 1 PC

88T-26240-85-BK

1
Out of stock

9

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

10

RIVET, BLIND (8K1)

90267-40076-00

1
Out of stock

11

WASHER, PLAIN

80Y-23843-00-00

1
Out of stock

12

COLLAR

90387-22726-00

1
Out of stock
← Brake 1 SKI →
