1994 Yamaha VK540 Ii (VK540EU) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1994 Yamaha VK540 Ii (VK540EU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

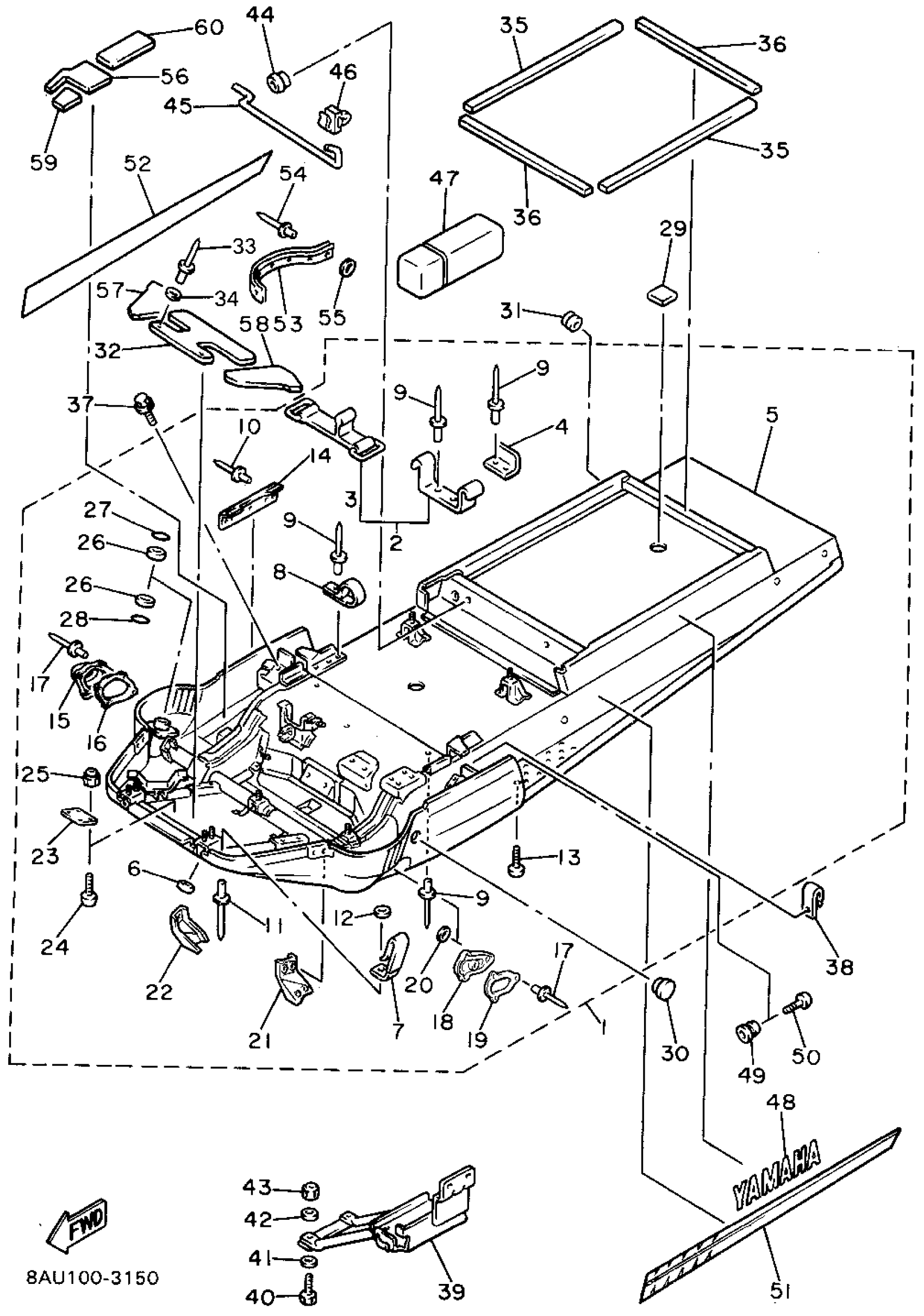

1994 Yamaha VK540 Ii (VK540EU) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

8AT-21910-00-00

1
Out of stock

2

BRACKET, TOOL BOX FITTING

81E-21945-00-00

1
Out of stock

3

BAND, BATTERY

4J2-82131-01-00

1
Out of stock

4

BRACKET, TOOL BOX FITTING

83R-21955-00-00

1
Out of stock

5

PANEL, SUB FRAME 1

8AT-21912-00-00

—
Out of stock

6

C0LLAR

90387-062M9-00

1
Out of stock

7

CLAMP(51Y)

90465-08277-00

—
Out of stock

8

CLAMP

90462-10236-00

1
Out of stock

9

RIVET, BLIND

90267-48060-00

1
Out of stock

10

RIVET, BLIND (8M6)

90267-48051-00

1
Out of stock

11

RIVET, BLIND

90267-48018-00

1
Out of stock

12

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

13

SCREW, BINDING

98907-06016-00

1
Out of stock

14

PLATE, BACK UP

8AT-77527-00-00

—
Out of stock

15

COVER, STEERING

8AT-23818-00-00

—
Out of stock

16

WASHER 2

8AT-77526-00-00

—
Out of stock

17

RIVET, BLIND

90267-40029-00

—
Out of stock

18

COVER 1

8M6-2198F-00-00

—
Out of stock

19

SPACER

8M6-21998-00-00

—
Out of stock

20

WASHER, PLATE

90201-04027-00

—
Out of stock

21

BRACKET, FRONT GUARD 3

8AT-2194Y-00-00

—
Out of stock

22

BRACKET, FRONT GUARD 4

8AT-2195Y-00-00

—
Out of stock

23

PANEL, SUB FRAME 6

89X-21917-00-00

—
Out of stock

24

SCREW, BINDING

98907-05014-00

—
Out of stock

25

NUT, NYLON

95707-05300-00

—
Out of stock

26

BUSH, BIMETAL FORMED (8M6)

90384-36134-00

—
Out of stock

27

OIL SEAL (8M6)

93102-36232-00

—
Out of stock

28

OIL SEAL (8M6)

93103-36117-00

—
Out of stock

29

COVER 3

8CR-2198J-00-00

—
Out of stock

30

PLUG (8H8)

90338-44093-00

—
Out of stock

31

GROMMET (438)

90480-15061-00

—
Out of stock

32

DAMPER, NOISE 11

8AT-77271-00-00

—
Out of stock

33

RIVET, BLIND

90267-48018-00

1
Out of stock

34

. WASHER, PLATE (90201-04325-00 )

90201-044R6-00

1
Out of stock

35

TAPE 1

83R-7717E-00-00

—
Out of stock

36

TAPE 1

83R-7717E-00-00

—
Out of stock

37

BOLT, FLANGE

95817-06012-00

—
Out of stock

38

CLAMP(4MX)

90465-06376-00

—
Out of stock

39

BRACKET, BATTERY

8AT-2199G-00-00

1
Out of stock

40

BOLT, HEXAGON

97017-06025-00

—
Out of stock

41

WASHER, PLATE (8K2)

90201-06778-00

—
Out of stock

42

WASHER, PLATE (4F4)

90201-063A5-00

—
Out of stock

43

NUT, NYLON

95707-06300-00

—
Out of stock

44

GROMMET (22F)

90480-10348-00

—
Out of stock

45

STAY, SEAT

85R-2471A-00-00

—
Out of stock

46

HOLDER, 2

85R-2639F-00-00

—
Out of stock

47

TOOL KIT

85L-28100-01-00

—
Out of stock

48

EMBLEM, YAMAHA

99247-00280-00

—
Out of stock

49

. HOLDER, LATCH

8M6-77175-00-00

1
Out of stock

50

SCREW, BINDING

98907-06035-00

—
Out of stock

51

EMBLEM 1

8AT-77351-10-00

1
Out of stock

52

EMBLEM 2

8AT-77352-10-00

1
Out of stock

53

TRIM 1

8AT-2196T-00-00

—
Out of stock

54

RIVET, BLIND

90267-40954-00

1
Out of stock

55

WASHER, PLATE

90201-042E0-00

—
Out of stock

56

DAMPER, NOISE 12

8AT-77272-00-00

1
Out of stock

57

DAMPER, NOISE 13

8AT-77273-00-00

—
Out of stock

58

DAMPER, NOISE 14

8AT-77274-00-00

—
Out of stock

59

DAMPER, NOISE 15

8AT-77275-00-00

—
Out of stock

60

DAMPER, NOISE 16

8AT-77276-00-00

1
Out of stock
