1990 Yamaha VK540 (VK540EP) Starter Diagram

← All diagrams

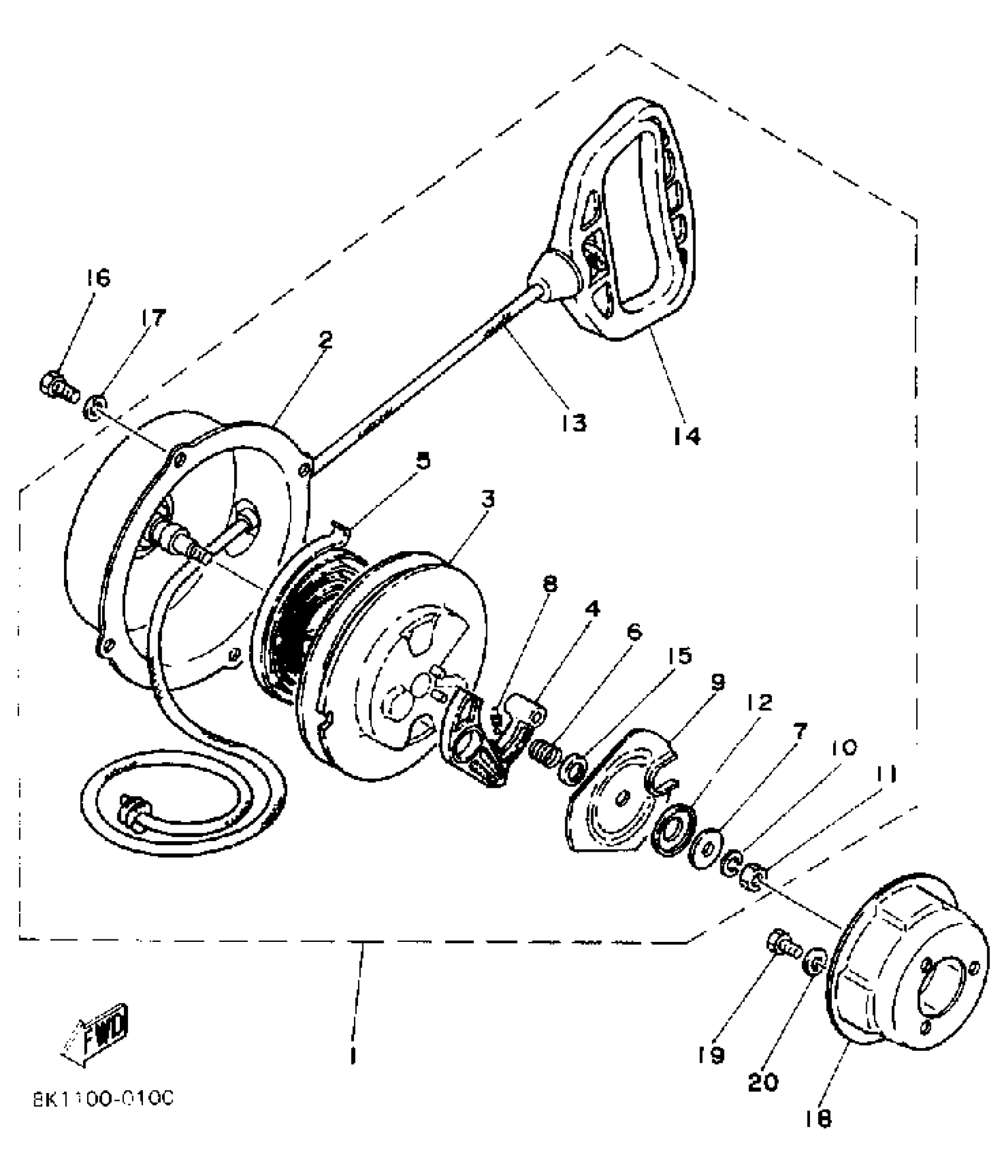

Find the part on the Starter diagram for your 1990 Yamaha VK540 (VK540EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha VK540 (VK540EP) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER ASSY

8H8-15710-00-00

1

$249.89

In stock

2

CASE, STARTER

8H8-15711-00-00

—

$110.25

In stock

3

DRUM, SEAVE

8F3-15714-01-00

1

$45.63

In stock

4

PAWL, DRIVE

8F3-15741-01-00

1

$21.05

In stock

5

SPRING, STARTER

8F3-15713-01-00

1

$41.31

In stock

6

SPRING, DRIVE PLATE

8F3-15715-00-00

1

$9.15

In stock

7

WASHER, THRUST

8F3-15739-01-00

1

$11.03

In stock

8

SPRING, RETURN

8F3-15734-00-00

1

$5.12

In stock

9

PLATE, DRIVE

8F3-15716-03-00

1

$23.00

In stock

10

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

11

NUT(650)

95380-06700-00

1

$6.17

In stock

12

WASHER, THRUST

8G5-15739-00-00

1

$6.94

In stock

13

WIRE, STARTER (BRAIDED)

89A-15751-00-00

1

$27.50

In stock

14

HANDLE, STARTER

8F3-15755-00-00

1

$23.00

In stock

15

COLLOR

82M-15779-00-00

1

$6.88

In stock

16

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

PULLEY, STARTER

8H8-15723-01-00

—

$16.71

In stock

19

BOLT, HEXAGON

97013-08020-00

—

$1.54

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
