1990 Yamaha VK540 (VK540EP) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1990 Yamaha VK540 (VK540EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

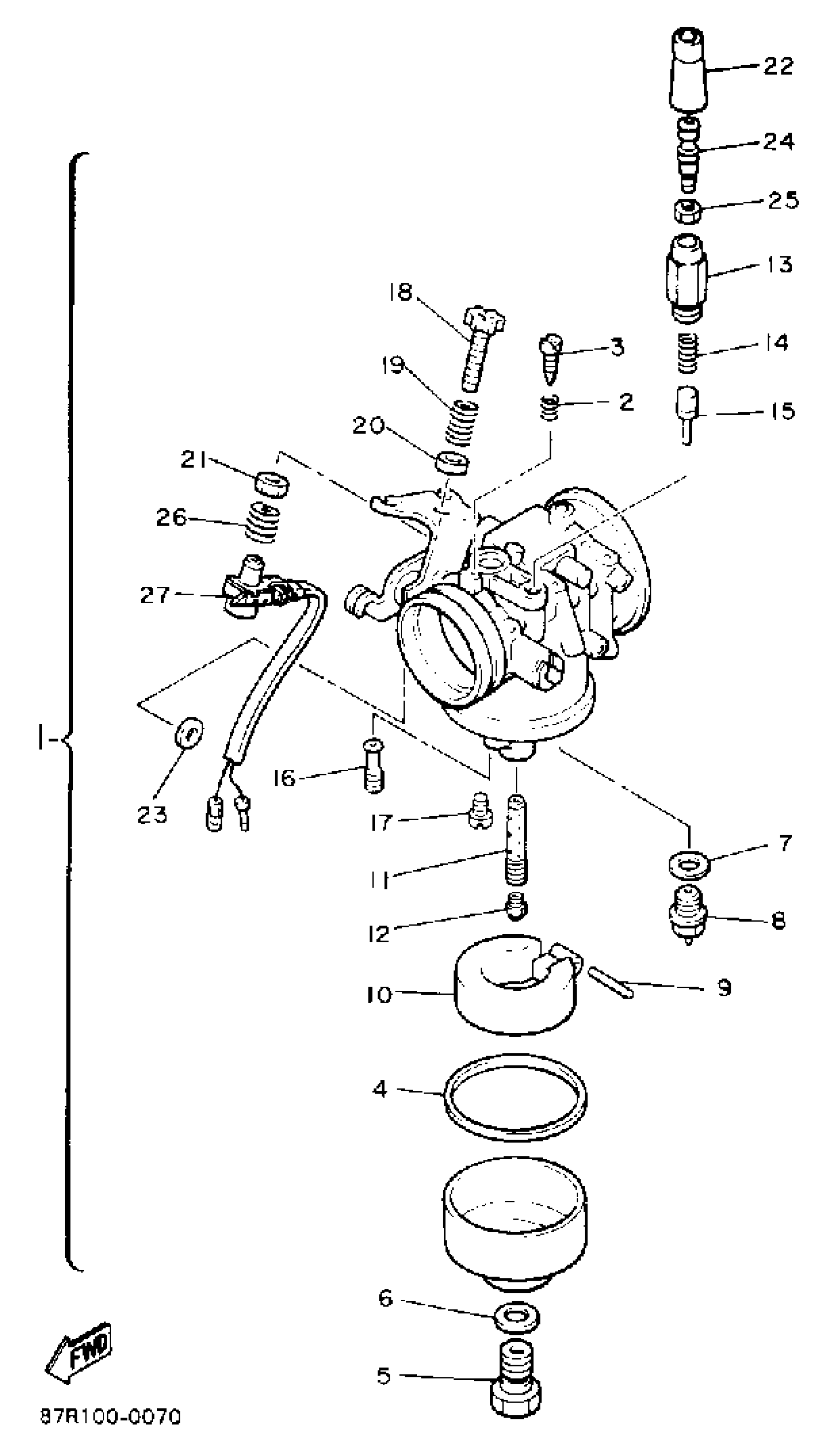

1990 Yamaha VK540 (VK540EP) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY 1

86R-14101-03-00

—

$619.88

In stock

2

SPRING, AIR ADJUSTING

82A-14134-00-00

1

$8.22

In stock

3

SCREW, PILOT ADJUSTING

620-14211-00-00

1

$17.41

In stock

4

GASKET, FLOAT CHAMBER

8M6-14126-00-00

1

$16.37

In stock

5

HOLDER

8M6-14261-00-00

1

$39.83

In stock

6

GASKET

286-14198-00-00

1

$7.45

In stock

7

WASHER, VALVE SEAT

214-14195-00-00

1

$6.11

In stock

8

NEEDLE VALVE ASSY

83R-14190-15-00

1

$44.40

In stock

9

PIN,FLOAT

8M6-14186-00-00

1

$9.46

In stock

10

FLOAT ASSY

8M6-14185-00-00

1

$85.35

In stock

11

NOZZLE, MAIN

83R-14941-4E-00

—

$27.45

In stock

12

JET, MAIN (#141.3)

3G2-1423E-56-00

1

$10.45

In stock

12

JET, MAIN (#135)

3G2-14231-27-00

1
Out of stock

12

JET, MAIN (#140)

3G2-14231-28-00

1
Out of stock

12

JET,MAIN #132.5

3G2-1423A-77-00

1

$12.17

In stock

12

JET,MAIN #137.5

3G2-1423A-78-00

—
Out of stock

12

JET,MAIN #142.5

3G2-1423A-79-00

—

$8.02

In stock

13

CAP, PLUNGER

8G8-14174-00-00

—

$23.77

In stock

14

SPRING, PLUNGER

127-14135-00-00

—

$6.40

In stock

15

PLUNGER, STARTER

8G8-14171-00-00

—

$26.92

In stock

16

JET, PILOT (# 90)

193-14142-90-A1

—

$11.08

In stock

16

JET, PILOT # 100

193-1414F-00-A1

1
Out of stock

17

CAP

8V0-14118-00-00

—

$12.45

In stock

18

. SCREW, THROTTLE

8V0-14122-00-00

1
Out of stock

19

SPRING

8X0-14500-00-00

—

$17.91

In stock

20

RING

8X0-14184-00-00

—

$20.43

In stock

21

. NUT

8V0-14358-00-00

1
Out of stock

22

CAP

8A7-14169-00-00

—

$15.80

In stock

23

WASHER

80L-14227-00-00

—

$3.78

In stock

24

CABLE ADJUST SCREW SET

12G-14106-00-00

—

$17.66

In stock

25

NUT, WIRE ADJUSTING

802-14161-00-00

—

$6.65

In stock

26

SPRING, THROTTLE STOP

8X0-14133-00-00

—

$15.40

In stock

27

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock
