1990 Yamaha VK540 (VK540EP) Brake Diagram

← All diagrams

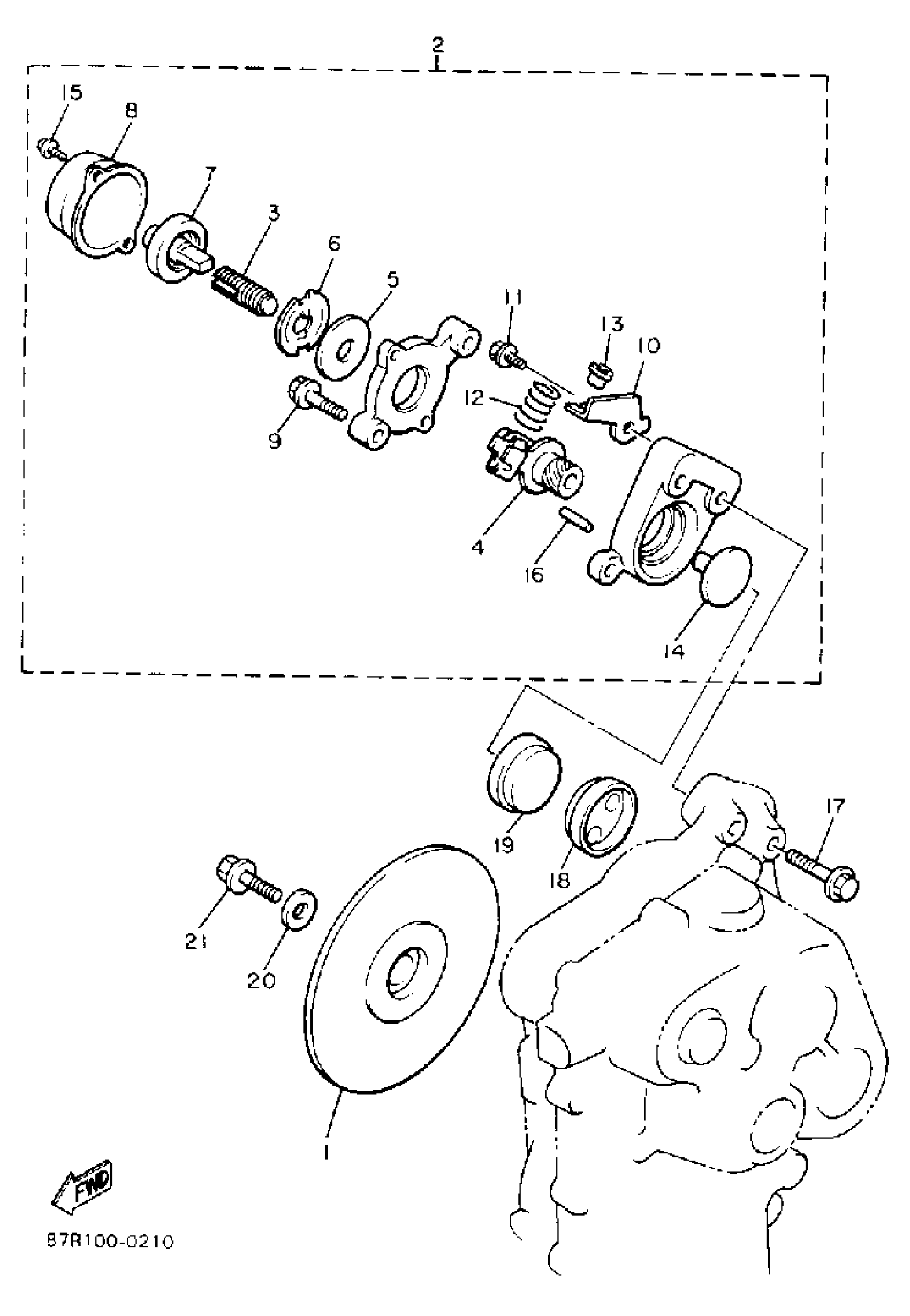

Find the part on the Brake diagram for your 1990 Yamaha VK540 (VK540EP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha VK540 (VK540EP) Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE (RIGHT)

83R-25831-00-00

—

$186.34

In stock

2

CALIPER BODY COMP.1

87R-25730-01-00

1

$241.25

In stock

3

SCREW, ADJUSTING 1

86M-25738-00-00

1

$8.91

In stock

4

. LEVER, BRAKE

87R-25726-00-00

1
Out of stock

5

SHIM, CALIPER

86M-25827-00-00

—

$2.37

In stock

6

LOCK, ONE WAY 2

86M-25773-00-00

—

$8.91

In stock

7

RATCHET, ADJUSTING

86M-25771-00-00

1

$6.58

In stock

8

COVER

86M-25772-00-00

—

$35.52

In stock

9

BOLT, CALIPER

86M-25818-00-00

—

$4.29

In stock

10

BRACKET, CALIPER

87R-25721-00-00

1

$30.91

In stock

11

BOLT 3

86M-25826-00-00

1

$1.95

In stock

12

SPRING, RETURN

87R-25743-00-00

—

$7.74

In stock

13

BRACKET, ADJUSTING

87R-25722-00-00

—

$45.48

In stock

14

PLATE, BACK UP

86M-25733-00-00

—

$12.78

In stock

15

BOLT, FITTING

86M-25833-00-00

1

$0.28

In stock

16

PIN 2

86M-25744-00-00

—

$1.27

In stock

17

BOLT, FLANGE(8AB)

95817-10050-00

—

$5.03

In stock

18

PAD, CALIPER 2

89J-25811-00-00

—

$23.38

In stock

19

PAD, CALIPER 2

89J-25911-00-00

—

$50.02

In stock

20

WASHER PLATE (3L6)

90201-10742-00

—

$6.80

In stock

21

BOLT, FLANGE

95817-10020-00

—

$6.17

In stock
