1989 Yamaha VK540 (VK540EN) Windsheild Diagram

← All diagrams

Find the part on the Windsheild diagram for your 1989 Yamaha VK540 (VK540EN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

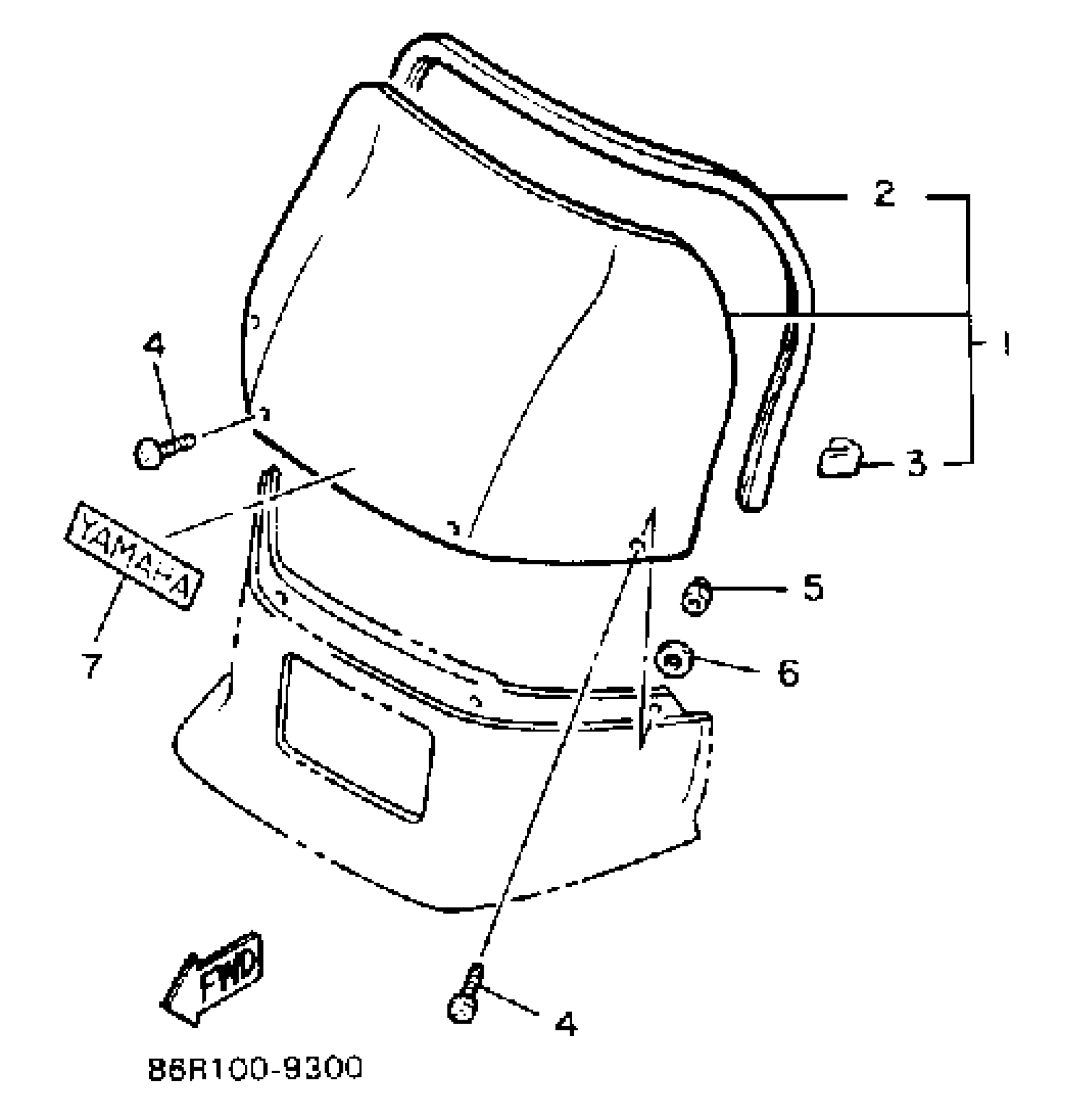

1989 Yamaha VK540 (VK540EN) Windsheild Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WINDSHIELD, VK540

86V-77210-10-XX

1
Out of stock

2

TRIM,UPPER

87K-77213-00-00

1
Out of stock

3

. FASTENER

80V-77223-00-00

1
Out of stock

4

SCREW, BINDING(83R)

90154-05047-00

1

$3.29

In stock

5

NUT, CROWN(8V0)

90176-05059-00

1

$2.15

In stock

6

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

7

EMBLEM, YAMAHA(PASTEL GOLD)

99245-00120-00

—
Out of stock
