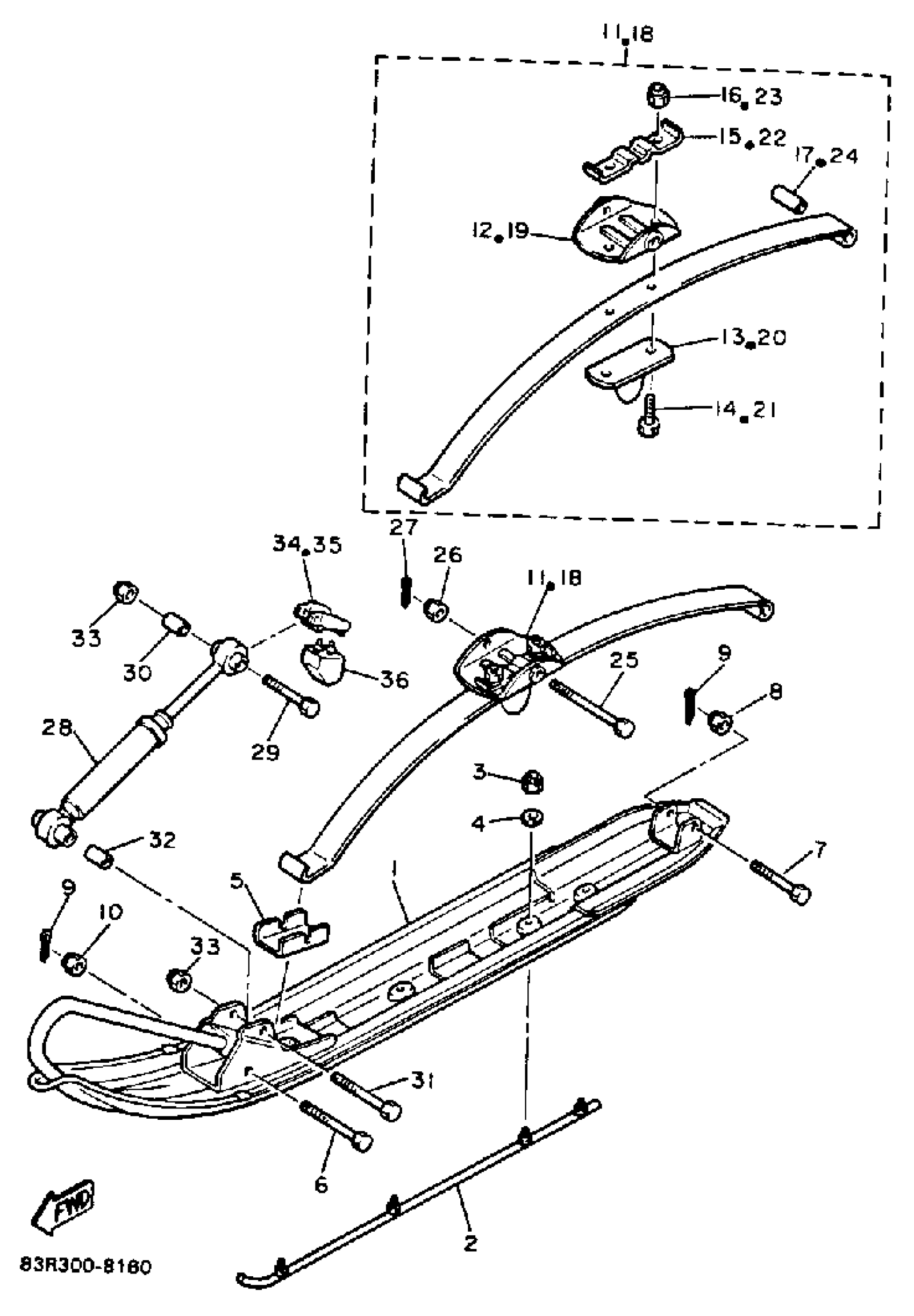

Find the part on the SKI diagram for your 1989 Yamaha VK540 (VK540EN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha VK540 (VK540EN) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

83R-23710-00-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

PLATE, WEAR 1

8K4-23735-00-00

1
Out of stock

6

1

$8.14

In stock

7

BOLT, PIN HOLE (8A7)

90102-08027-00

1

$7.35

In stock

8

NUT, NYLON

95717-08300-00

1

$2.57

In stock

9

PIN, COTTER

91490-20025-00

1

$1.31

In stock

10

NUT, U

95617-08100-00

1

$6.78

In stock

11

SPRING ASSEMBLY 1

83R-23760-00-00

1
Out of stock

12

SADDLE

8G6-23766-00-00

—

$32.37

In stock

13

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

14

. BOLT

90109-105E7-00

1
Out of stock

15

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

16

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

17

COLLAR

90387-08478-00

1
Out of stock

18

SPRING ASSEMBLY 2

83R-23770-00-00

1
Out of stock

19

SADDLE

8G6-23766-00-00

—

$32.37

In stock

20

. SEAT, SPRING 1

878-23768-00-00

1

$18.71

In stock

21

. BOLT

90109-105E7-00

1
Out of stock

22

WASHER, ROCK (8J5)

90215-10155-00

1

$11.66

In stock

23

NUT, SELF-LOCKING (8J8)

90185-10085-00

—

$2.57

In stock

24

COLLAR

90387-08478-00

1
Out of stock

25

BOLT, PIN HOLE (8G6)

90102-12030-00

—

$11.28

In stock

26

NUT, CASTLE

95307-12900-00

—

$5.85

In stock

27

PIN, COTTER

91490-30030-00

—

$7.15

In stock

28

SHOCK ABSORBER ASSEMBLYASSY

83R-23350-00-00

1
Out of stock

29

BOLT, HEXAGON

97017-08060-00

—

$7.72

In stock

30

COLLAR (878)

90387-08262-00

—

$9.02

In stock

31

BOLT, HEXAGON

97017-08075-00

—
Out of stock

32

COLLAR (864)

90387-08224-00

—

$7.52

In stock

33

NUT, NYLON

95717-08300-00

1

$2.57

In stock

34

WASHER, LOCK

80M-23857-01-00

1
Out of stock

35

HOLDER 2

80M-23867-01-00

1
Out of stock

36

SPACER

83R-23858-00-00

1
Out of stock
