1989 Yamaha VK540 (VK540EN) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1989 Yamaha VK540 (VK540EN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

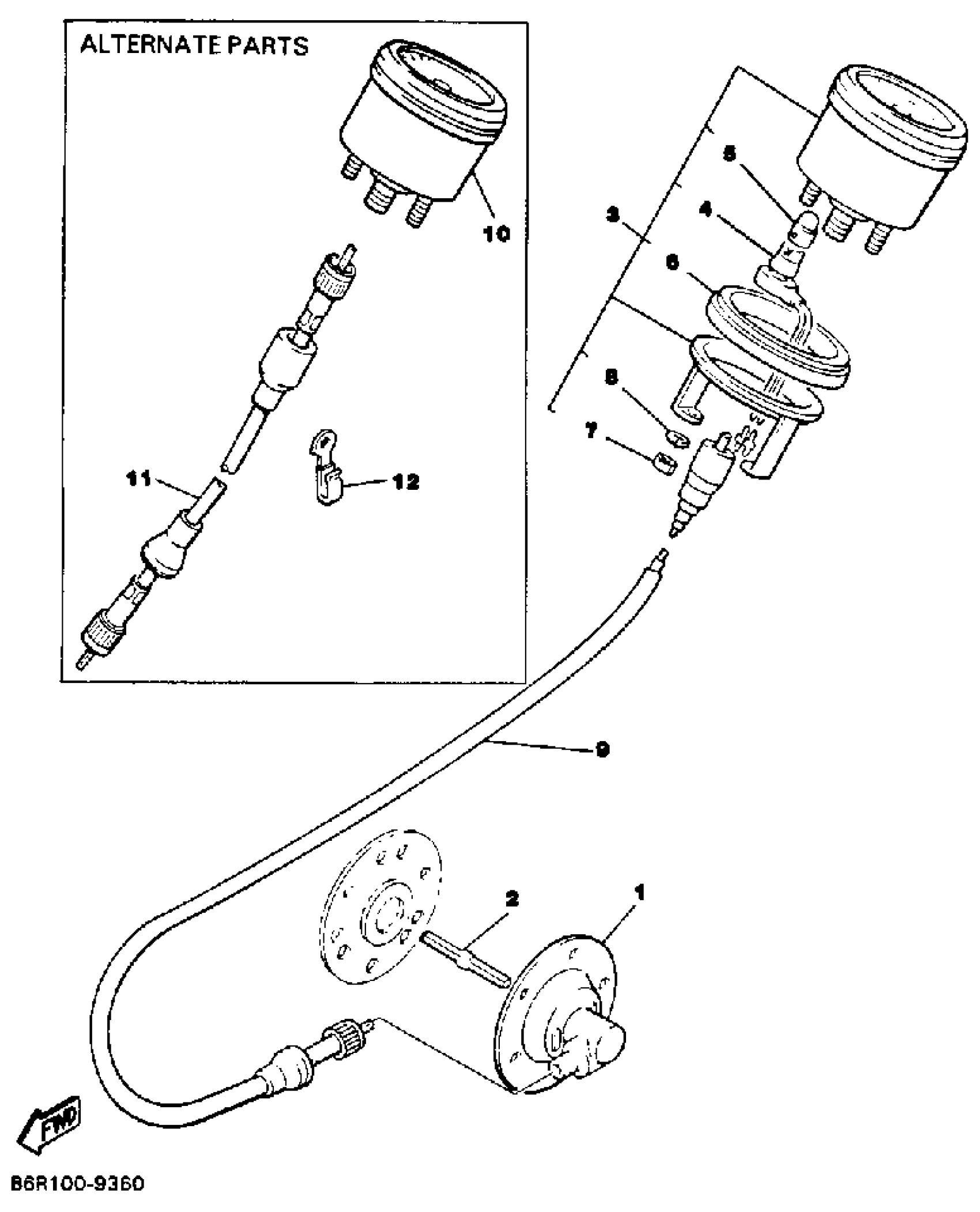

1989 Yamaha VK540 (VK540EN) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER GEAR HOUSING COMP

83R-47700-00-00

—

$147.58

In stock

2

JOINT

8K4-47715-00-00

1

$4.60

In stock

3

. SPEEDOMETER ASSY (MILE/H)

80V-83510-40-00

1
Out of stock

4

. UNAVAILABLE IN PRICE BOOK

8V-78353-64-00

1
Out of stock

5

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

6

DAMPER, METER

8G6-83523-00-00

—

$8.91

In stock

7

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

TACHOMETER CABLE ASSY

8H4-83560-00-00

1

$55.71

In stock

10

TACHOMETER ASSEMBLY

8W0-83540-00-00

1
Out of stock

11

TACHOMETER CABLEASSEMBLY

8H6-83560-00-00

1
Out of stock

12

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock
