1989 Yamaha VK540 (VK540EN) Bumper Diagram

← All diagrams

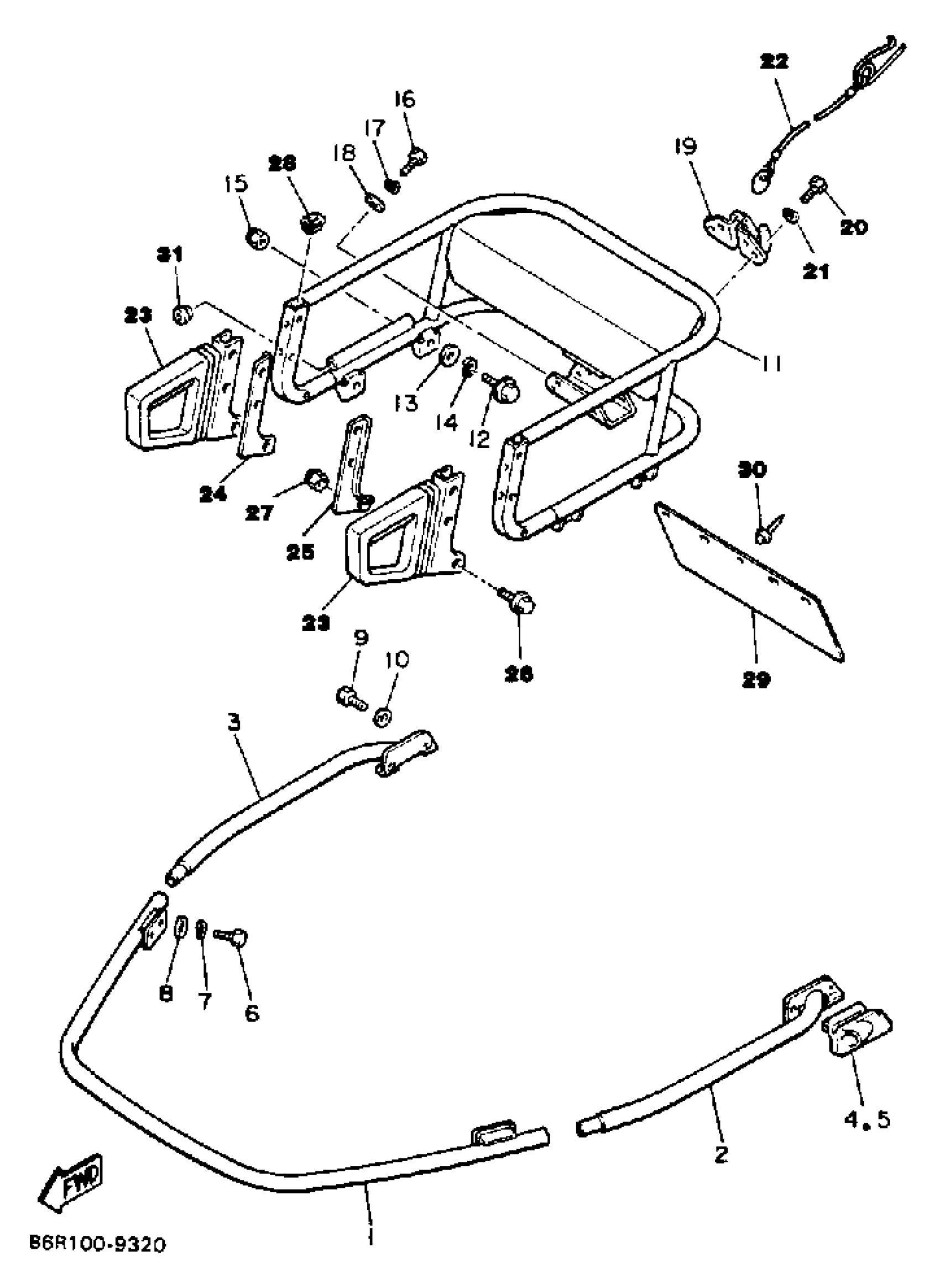

Find the part on the Bumper diagram for your 1989 Yamaha VK540 (VK540EN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha VK540 (VK540EN) Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BUMPER, FRONT 1

83R-77511-01-00

1
Out of stock

2

BUMPER, FRONT 3

83R-77513-00-00

1
Out of stock

3

BUMPER, FRONT 4

83R-77514-00-00

1
Out of stock

4

END, BUMPER

83R-77523-00-00

1
Out of stock

5

END, BUMPER

83R-77524-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

10

WASHER, PLATE

90201-06M02-00

1

$2.23

In stock

11

REAR BUMPER COMP.

83R-77540-00-00

1
Out of stock

12

BOLT, FLANGE

95817-08014-00

1

$1.94

In stock

13

WASHER(6TC)

92907-08200-00

1
Out of stock

14

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

15

NUT, CAP

95307-08800-00

1
Out of stock

16

BOLT, HEXAGON

97017-08020-00

—
Out of stock

17

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

18

WASHER(6TA)

92907-08600-00

—

$2.52

In stock

19

BRACKET, HITCH 1

86D-77591-00-00

—

$81.69

In stock

20

BOLT, HEXAGON

97017-08020-00

—
Out of stock

21

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

22

PIN, HINGE

8U1-77157-00-00

—
Out of stock

23

GRIP, ASSIST 1

8X0-77571-00-00

—

$170.71

In stock

24

WASHER 1

8X0-77525-00-00

—
Out of stock

25

WASHER 2

8X0-77526-00-00

—
Out of stock

26

BOLT, FLANGE

95817-08040-00

—

$5.43

In stock

27

NUT, CROWN(82U)

90176-08063-00

—
Out of stock

28

CAP

8X1-77517-00-00

1
Out of stock

29

FLAP

83R-77595-00-00

—

$157.15

In stock

30

RIVET, BLIND (8R6)

90267-48086-00

—

$3.49

In stock

31

GROMMET (8L1)

90480-15268-00

—

$20.82

In stock
