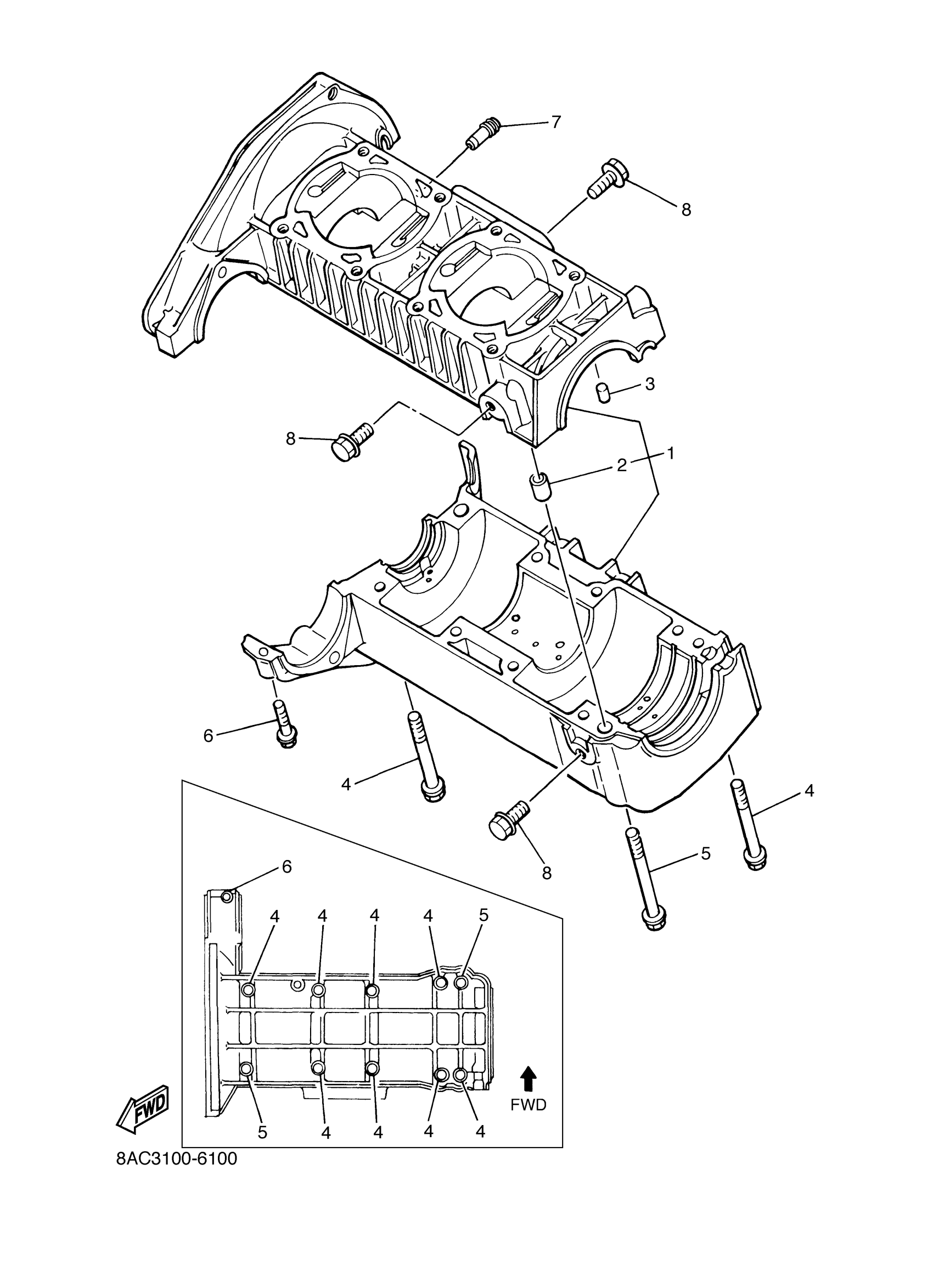

Yamaha VK540EK (VK540 III) 8ACF 2005 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE ASSY

8H8-15109-08-00

Unavailable

2

PIN, DOWEL

99530-12016-00

$3.85

3

PIN, DOWEL (8H1)

93604-07141-00

$1.29

4

BOLT, FLANGE

95817-08075-00

$3.27

5

BOLT, FLANGE(8BN)

95817-08085-00

$2.99

6

BOLT, FLANGE

95817-06030-00

$3.65

7

JOINT, BREATHER

J38-11116-00-00

$2.69

8

BOLT, FLANGE(JN5)

95817-08016-00

$3.85
