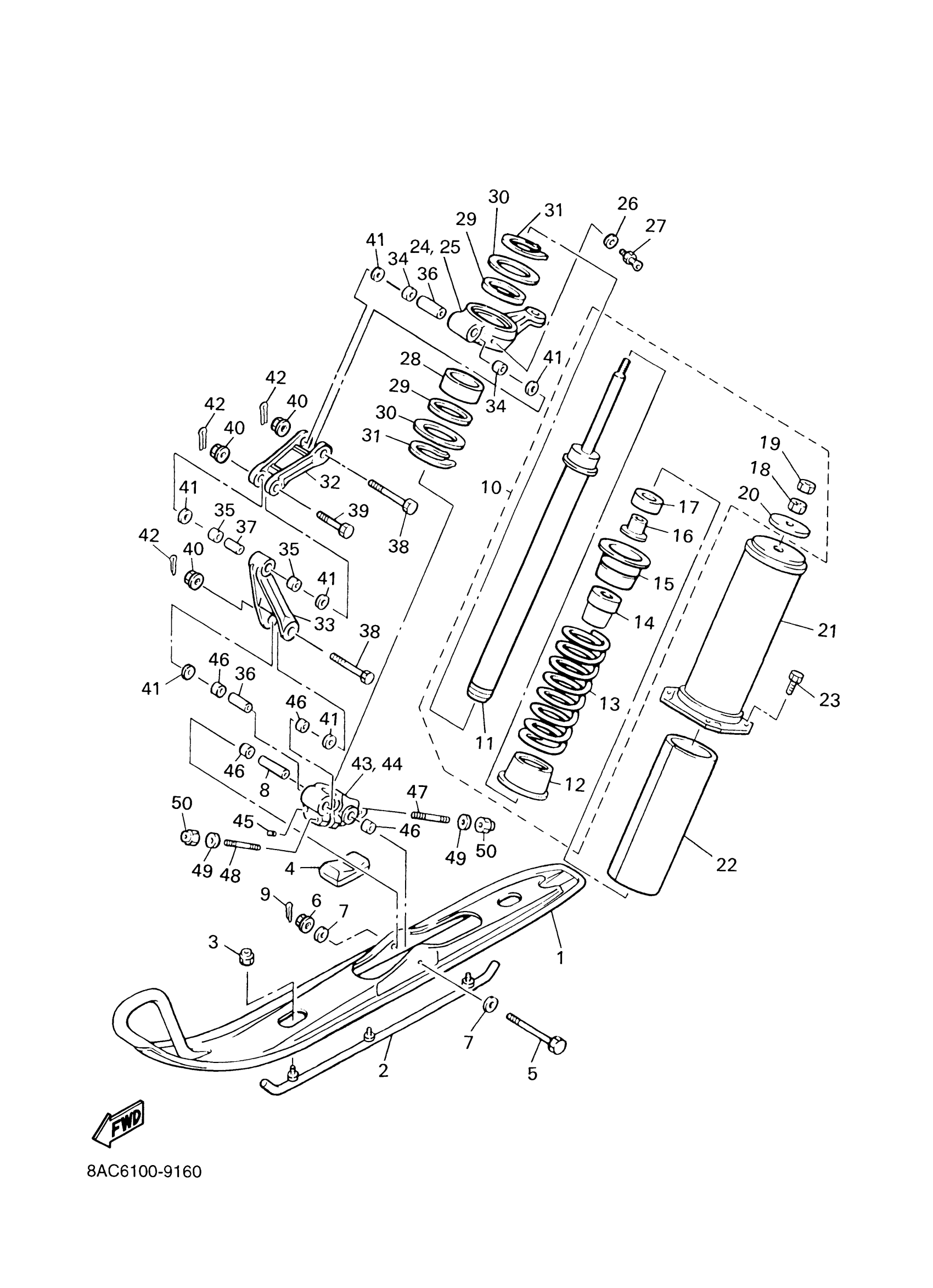

Find the part on the Ski diagram for your 2001 Yamaha VK540 Iii (VK540EF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VK540 Iii (VK540EF) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI COMP. 1

8AT-23710-00-00

—
Out of stock

2

RUNNER 1

8AC-23731-01-00

—
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1
Out of stock

4

STOPPER 1

88T-23743-00-00

1
Out of stock

5

BOLT, WITH HAUL (31A)

90102-10050-00

1
Out of stock

6

NUT, NYLON

95707-10300-00

1
Out of stock

7

WASHER (7A9)

90201-100F7-00

1
Out of stock

8

COLLAR (8V0)

90387-106J3-00

1
Out of stock

9

PIN, COTTER

91490-20025-00

1
Out of stock

10

ABSORBER ASSY 1

8AC-2376A-00-00

—
Out of stock

11

DAMPER SUB ASSY

8AT-22401-00-00

—
Out of stock

12

SEAT, SPRING 2

82M-23777-00-00

—
Out of stock

13

SPRING, COMPRESSION (8L9)

90501-75612-00

1
Out of stock

14

BUMP, STOP

89L-22493-00-00

—
Out of stock

15

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

16

COLLAR(82M)

90387-084R1-00

—
Out of stock

17

WASHER

82M-23779-00-00

—
Out of stock

18

. NUT

90170-08220-00

1
Out of stock

19

NUT(6TA)

95337-08600-00

—
Out of stock

20

WASHER, PLATE(82M)

90201-080L1-00

—
Out of stock

21

HOLDER, ABSORBER

8AT-2376J-00-00

—
Out of stock

22

PROTECTOR

8L0-2376R-00-00

—
Out of stock

23

BOLT, HEXAGON

97017-06020-00

—
Out of stock

24

ARM, OUTSIDE 1

82M-23851-00-00

—
Out of stock

25

ARM, OUTSIDE 2

8AT-23852-00-00

—
Out of stock

26

WASHER, PLATE (8U7)

90201-067F9-00

—
Out of stock

27

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

28

BUSH, BIMETAL FORMED (8U7)

90384-53175-00

—
Out of stock

29

OIL SEAL (8U7)

93109-53036-00

—
Out of stock

30

WASHER, PLATE(8W1)

90201-535H6-00

—
Out of stock

30

WASHER, PLATE (8L9)

90201-536A1-00

—
Out of stock

31

CIRCLIP (8L9)

93410-52061-00

—
Out of stock

32

ARM, FRONT 1

8L0-2382E-01-00

—
Out of stock

33

ARM, FRONT 2

8L0-2382F-00-00

—
Out of stock

34

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

35

BUSH, BIMETAL FORMED (8L0)

90384-14096-00

—
Out of stock

36

COLLAR(89A)

90387-101Y9-00

—
Out of stock

37

COLLAR (8L0)

90387-100A4-00

—
Out of stock

38

BOLT, WITH HOLE (8L0)

90102-10039-00

—
Out of stock

39

BOLT, HEXAGON SOCKET HEAD(85L)

90110-10173-00

—
Out of stock

40

NUT, NYLON

95707-10300-00

1
Out of stock

41

WASHER PLATE 626441260000

90202-14037-00

—
Out of stock

42

PIN, COTTER

91490-20025-00

1
Out of stock

43

BRACKET 1

84M-2376E-00-00

—
Out of stock

44

BRACKET 2

84M-2377E-00-00

—
Out of stock

45

BOLT, SET (8K2)

90113-06039-00

—
Out of stock

46

BUSH, BIMETAL FORMED (8L0)

90384-14091-00

—
Out of stock

47

BOLT, STUD 3

95617-08655-00

—
Out of stock

48

BOLT, STUD 3

95617-08640-00

—
Out of stock

49

WASHER(6TA)

92907-08600-00

—
Out of stock

50

NUT, NYLON

95717-08300-00

—
Out of stock
