2001 Yamaha VK540 III (VK540EF) Engine Bracket Diagram

← All diagrams

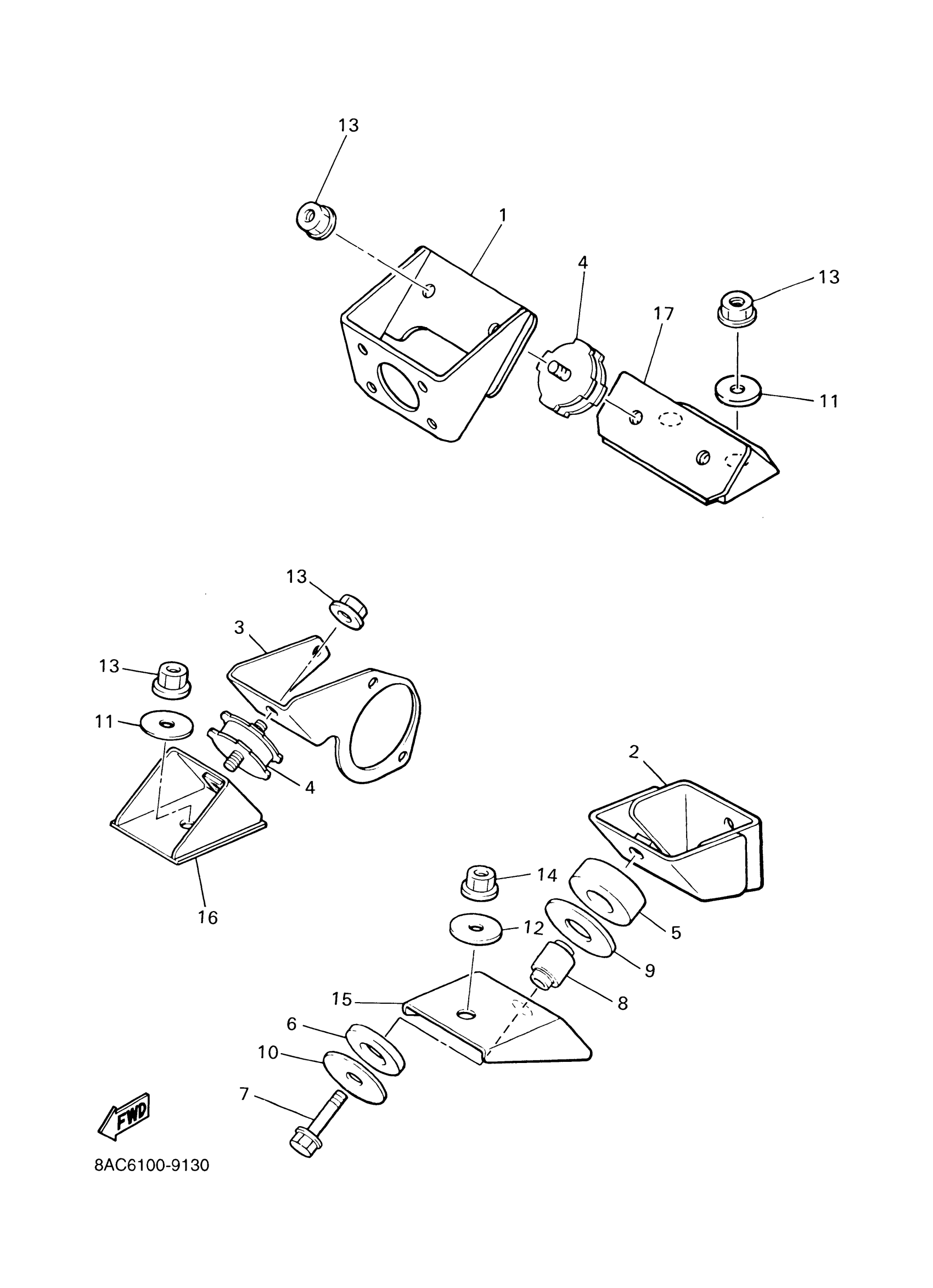

Find the part on the Engine Bracket diagram for your 2001 Yamaha VK540 III (VK540EF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha VK540 III (VK540EF) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8H8-21411-01-00

—

$33.54

In stock

2

BRACKET, ENGINE 2

83R-21419-01-00

1

$41.35

In stock

3

BRACKET, ENGINE 3

8H8-21429-01-00

—

$24.58

In stock

4

DAMPER 2

8N7-21486-00-00

1

$24.58

In stock

5

DAMPER, RUBBER 1

8V9-21485-00-00

1

$20.58

In stock

6

DAMPER 2

8V9-21486-00-00

—

$29.06

In stock

7

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

8

BUSH, SOLID (8V9)

90380-10129-00

—

$53.78

In stock

9

WASHER, PLATE (8V9)

90201-257G7-00

—

$14.45

In stock

10

WASHER (888)

90201-10151-00

—

$3.94

In stock

11

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

12

WASHER (856)

90201-12317-00

—

$4.15

In stock

13

NUT, FLANGE(8AB)

95707-10500-00

1

$1.66

In stock

14

NUT(3GG)

90179-12588-00

1

$5.65

In stock

15

BRACKET, FRONT LOWER 1

8AT-21417-00-00

1

$16.71

In stock

16

BRACKET, FRONT UNDER 2

8H8-21418-01-00

—

$16.71

In stock

17

BRACKET, REAR UNDER 1

8H8-21427-00-00

—

$25.75

In stock
