1997 Yamaha VK540 Ii (VK540EA) Primary Sheave Diagram

← All diagrams

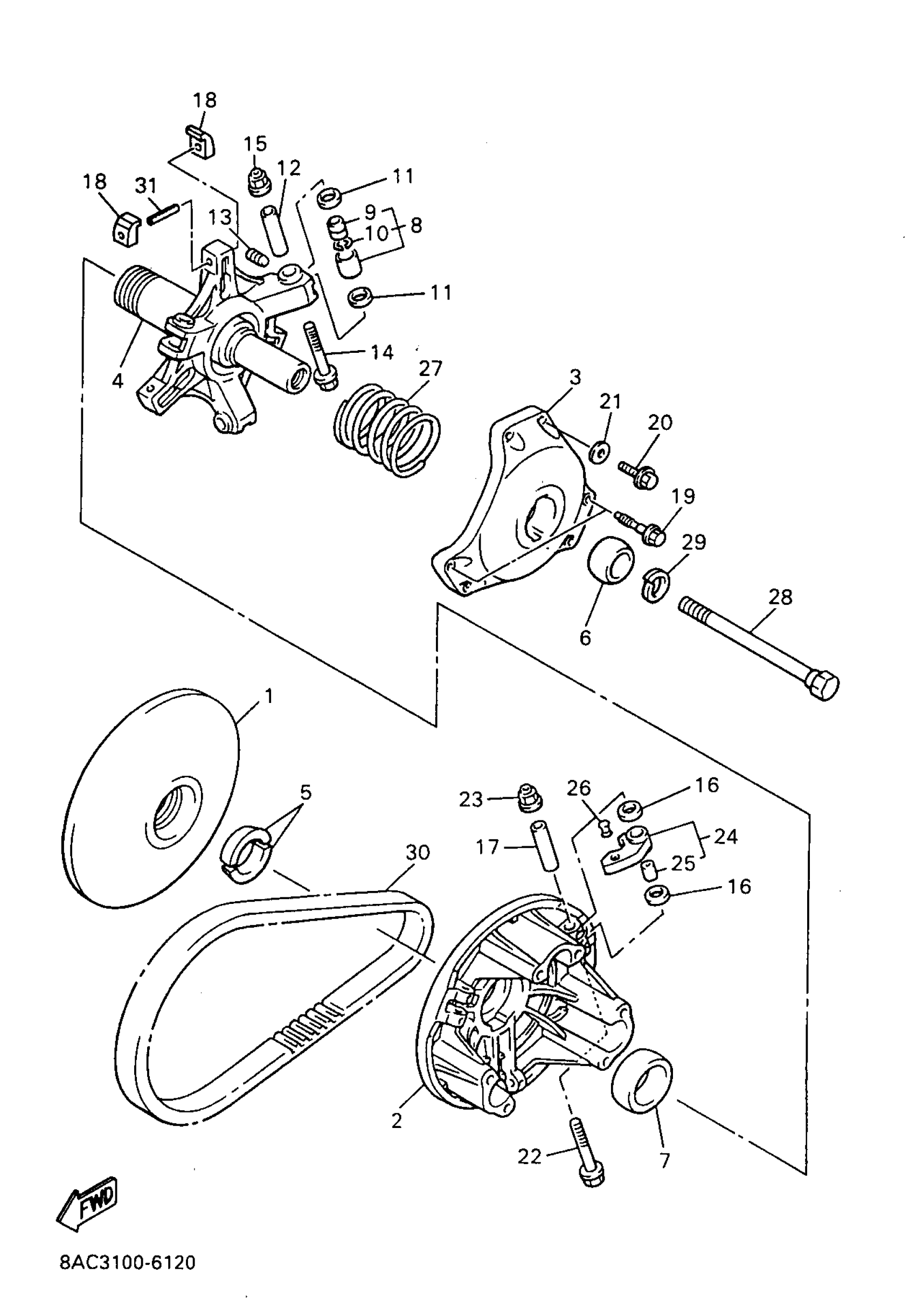

Find the part on the Primary Sheave diagram for your 1997 Yamaha VK540 Ii (VK540EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha VK540 Ii (VK540EA) Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHEAVE, PRIMARY FIXED

88R-17611-02-00

1

$103.89

In stock

2

SHEAVE, PRIMARY SLIDING

89F-17621-00-00

—
Out of stock

3

CAP

88R-17631-01-00

—
Out of stock

4

SPIDER COMPLETE

8BW-17640-03-00

—

$326.25

In stock

5

STOPPER

8V0-17639-00-00

1

$10.52

In stock

6

BUSH(83R)

90389-28032-00

1

$55.86

In stock

7

BUSH(88R)

90389-41031-00

1

$73.72

In stock

8

ROLLER, COMP

88R-17624-01-00

1

$42.62

In stock

9

BUSH(88K)

90386-08183-00

—

$22.97

In stock

10

CIRCLIP(88K)

93450-13133-00

—

$1.78

In stock

11

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

12

COLLAR

90387-0514T-00

1

$14.86

In stock

13

BOLT, SET

90113-05041-00

1
Out of stock

14

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

15

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

16

WASHER, PLATE(88R)

90202-08204-00

1
Out of stock

17

COLLAR

90387-0514T-00

1

$14.86

In stock

18

SLIDER

8BW-17653-00-00

—

$13.86

In stock

19

BOLT(89J)

90109-066F4-00

—
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

21

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

22

BOLT, WASHER BASED(88R)

90105-05644-00

1

$1.94

In stock

23

NUT, S/L FLANGE

95607-05200-00

1

$6.86

In stock

24

WEIGHT COMP

8AT-17605-00-00

—

$83.94

In stock

25

. BUSH, SOLID

90380-08244-00

1
Out of stock

26

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

26

—

$6.82

In stock

27

SPRING, COMPRESSION(8AT)

90501-481J1-00

—

$38.01

In stock

27

SPRING, COMPRESSION(89F)

90501-556G6-00

—

$33.15

In stock

27

SPRING, COMPRESSION(8AX)

90501-581J7-00

—

$31.54

In stock

28

. BOLT (L=1653MM)

88R-17647-00-00

1
Out of stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

30

V-BELT

89L-17641-02-00

1
Out of stock

31

PIN, SPRING (7F7)

91609-50032-00

—

$3.66

In stock
