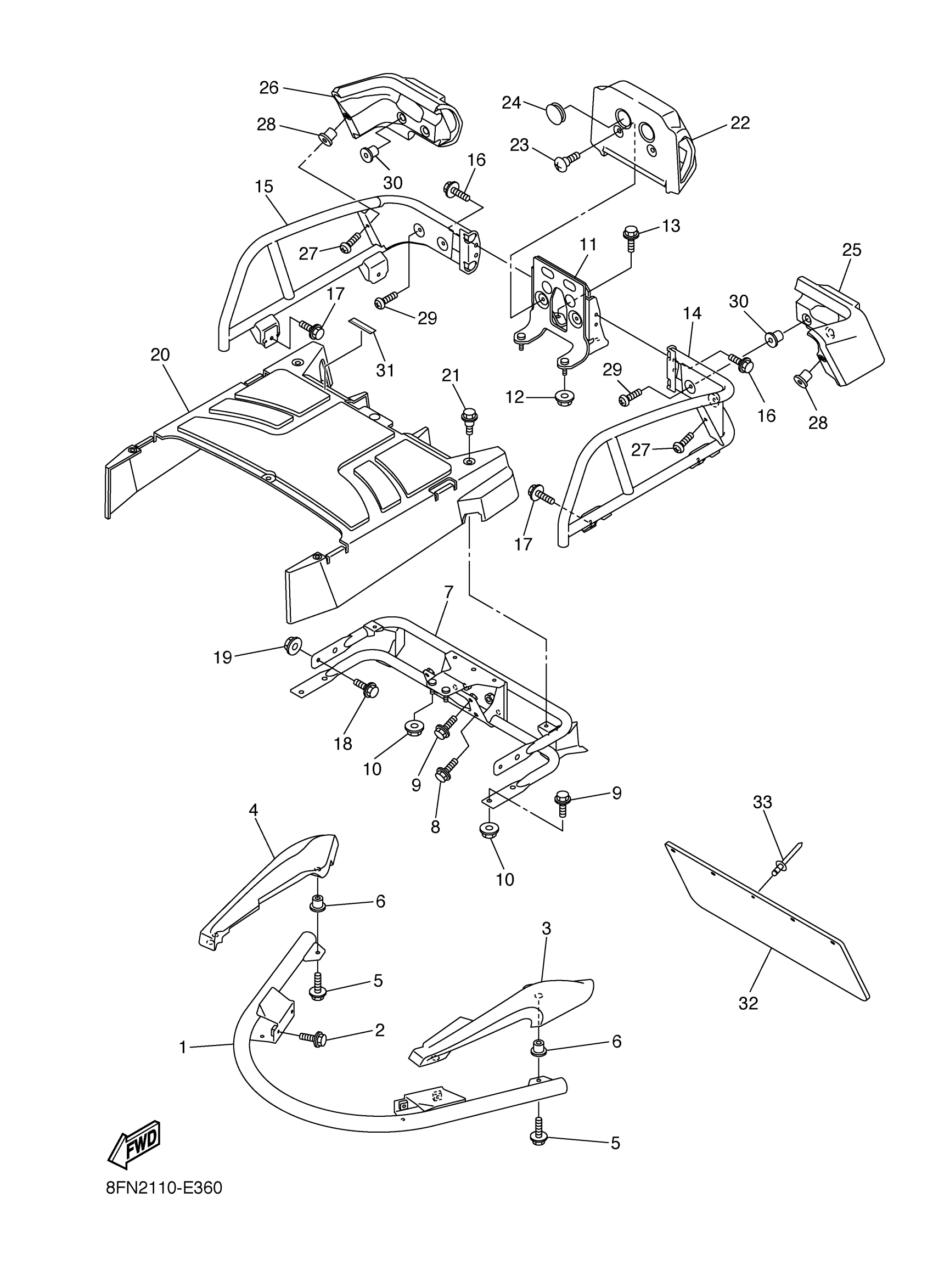

Yamaha VK10L (VK PROFESSIONAL) 8FN2 2006 BUMPER Diagram

#

Description
Price

1

BUMPER, FRONT 1

8FN-77511-00-00

Unavailable

2

BOLT, FLANGE(8AB)

95817-08020-00

$6.52

3

END, BUMPER

8FN-77523-00-00

Unavailable

4

END, BUMPER

8FN-77524-00-00

Unavailable

5

BOLT, FLANGE

95817-06020-00

$2.52

6

NUT(1WT)

90179-06520-00

$5.87

7

BUMPER, REAR 1

8FN-77541-00-00

$542.99

8

BOLT, FLANGE

95817-10020-00

$4.89

9

BOLT, FLANGE

95814-08016-00

$6.22

10

NUT,FLANGE(J10)

95702-08500-00

$0.79

11

BUMPER, REAR 2

8FN-77542-00-00

$185.06

12

NUT,FLANGE(J10)

95702-08500-00

$0.79

13

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

14

BUMPER, REAR 3

8FN-77543-00-00

Unavailable

15

BUMPER, REAR 4

8FN-77544-00-00

Unavailable

16

BOLT, FLANGE

95814-08016-00

$6.22

17

BOLT, FLANGE

95817-10020-00

$4.89

18

BOLT, FLANGE

95817-06014-00

Unavailable

19

NUT, FLANGE

95702-06500-00

Unavailable

20

PROTECTOR 1

8FN-77551-00-00

Unavailable

21

BOLT

90109-06174-00

Unavailable

22

PROTECTOR 2

8FN-77552-00-00

Unavailable

23

SCREW, BINDING

90154-06009-00

Unavailable

24

PLUG(XA1)

90338-28242-00

Unavailable

25

PROTECTOR 3

8FN-77553-00-00

Unavailable

26

PROTECTOR 4

8FN-77554-00-00

Unavailable

27

SCREW, BIND (705)

98980-06016-00

Unavailable

28

NUT(1WT)

90179-06520-00

$5.87

29

SCREW, BIND(J50)

98980-08020-00

Unavailable

30

NUT

90179-08011-00

Unavailable

31

EMBLEM

8FM-24897-01-00

Unavailable

32

FLAP

83R-77595-00-00

Unavailable

33

RIVET, BLIND (8R6)

90267-48086-00

Unavailable
