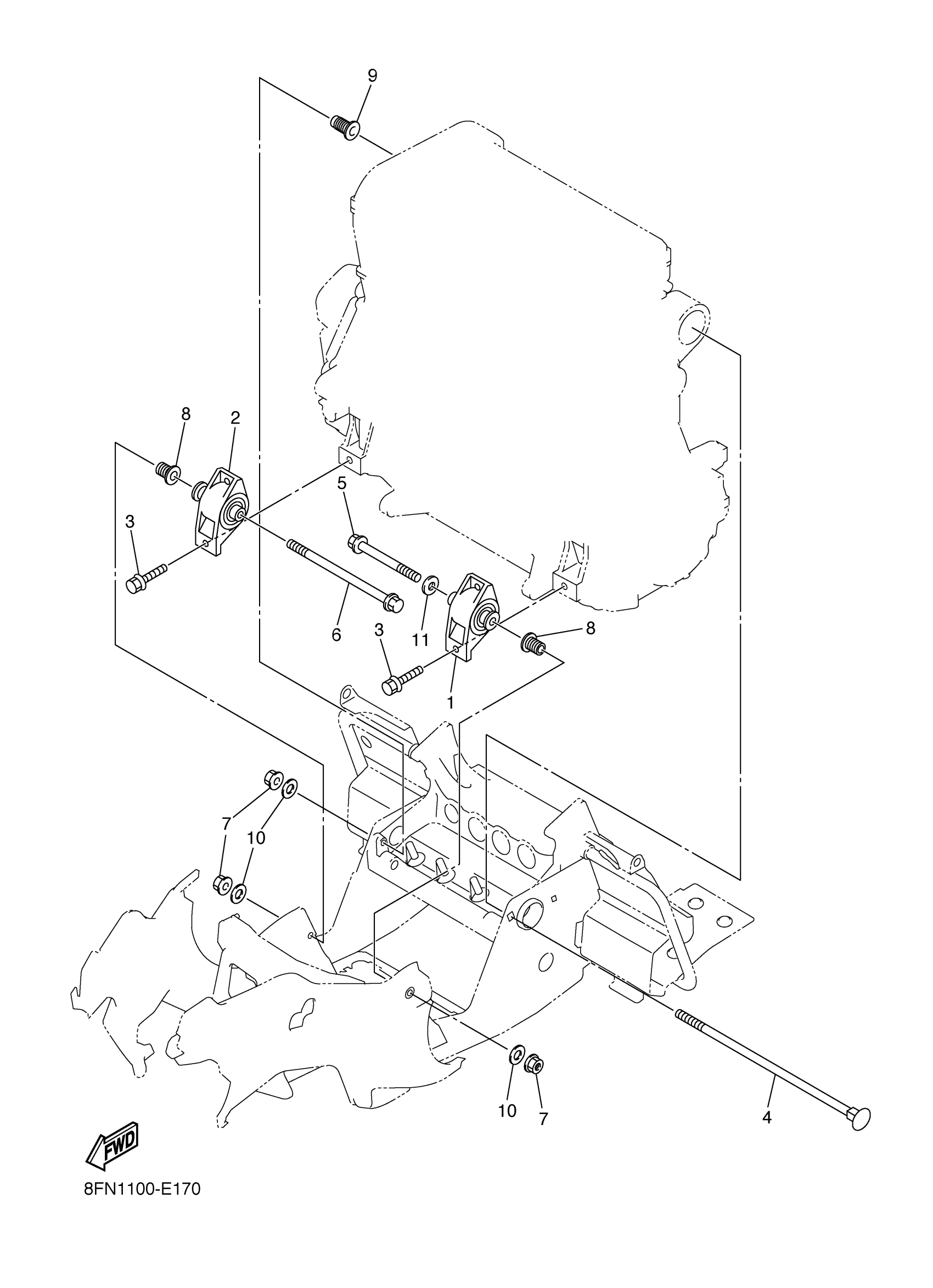

Yamaha VK10AW (VK PRO) 8GSA0 2011 ENGINE BRACKET Diagram

#

Description
Price

1

ENGINE BRACKET COMP.

8ES-21410-00-00

Unavailable

2

ENGINE BRACKET COMP. 2

8ES-21420-00-00

Unavailable

3

BOLT, FLANGE

95812-08030-00

$3.01

4

BOLT, ENGINE MOUNT

8FN-21481-02-00

$101.50

5

BOLT, FLANGE

95817-12100-00

$3.02

6

BOLT, FLANGE

95817-12200-00

Unavailable

7

Nut

90179-12004-00

$4.87

8

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

Unavailable

9

BOLT

8FG-2149C-00-00

$31.48

10

WASHER, PLATE(8CJ)

90201-120T5-00

$4.57

11

WASHER, PLATE (5E3)

90201-125A3-00

$2.74
