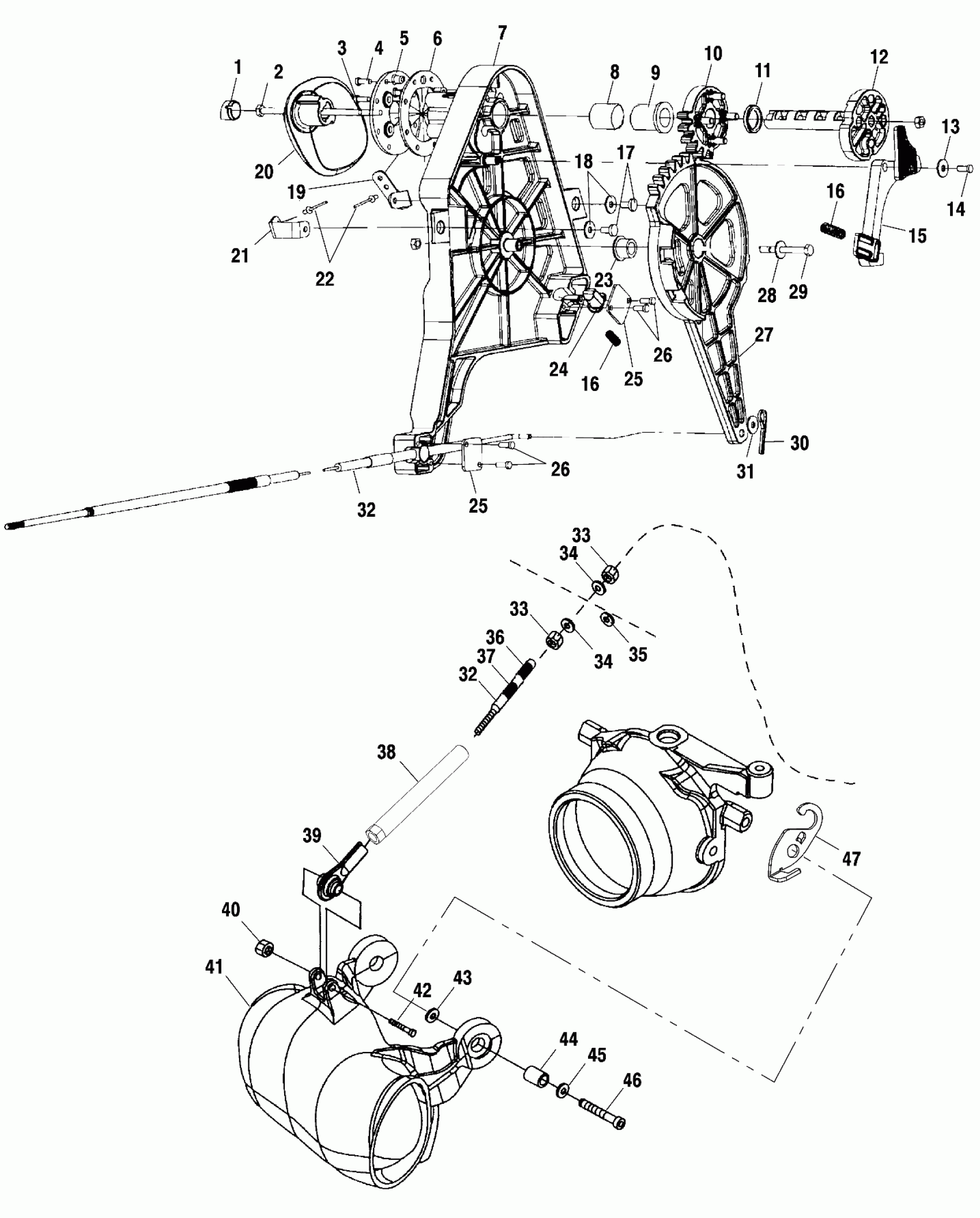

Polaris VIRAGE TX - W005199D REVERSE - W005199D (4955825582B005) Diagram

#

Description
Price

1

CAP,REVERSE HANDLE,BLK

5433677-070

Unavailable

2

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

3

SCREW (10)

7517669

Unavailable

4

RIVET-POP 3/16(10)

7661040

$0.54

5

FLANGE-BASE,REVERSE

5433646

$7.38

6

GASKET-REVERSE,MS

5811982

Unavailable

7

PLATE-BASE,REVERSE

5433643

Unavailable

8

BSHG-.750X1.00X1.00,ACETEL

5433911

Unavailable

9

BSHG-FLG,.750X1.00X1.00,ACETEL

5433910

$11.11

10

PINION-REVERSE

5433645

Unavailable

11

BUSHING-CAN,REVERSE

5433674

$7.14

12

SHAFT-CAM,REVERSE [No Longer Available]

5433675

Unavailable

13

WASHER, FLAT, S.S.(10)

7555839

Unavailable

14

SCREW(10)

7517331

$2.06

15

ARM,REVERSE LOCK Substituted by 5433676

5433872

Unavailable

16

SPRING,COMPRESSION

7041888

$13.10

16

SPRING,COMPRESSION

7041888

$13.10

17

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

$1.11

18

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

19

BRKT,REVERSE PLATE,FWD Substituted by 5245635

5244288

Unavailable

20

HANDLE-REVERSE,BLACK

5433605-070

Unavailable

21

BRKT,REVERSE PLATE,REAR

5244289

Unavailable

22

RIVET-POP 3/16(.376-.750)AL-SS Substituted by 7621511

7661041

$0.49

23

BSHG-FLG,.500X.750X.563,AF

5433647

Unavailable

24

PLUNGER-DETENT,REVERSE

5433673

Unavailable

25

PLATE,CABLE

5240257

Unavailable

25

PLATE,CABLE

5240257

Unavailable

26

SCREW(10)

7512049

Unavailable

26

SCREW(10)

7512049

Unavailable

27

ARM-REVERSE

5433954

Unavailable

28

WASHER, FLAT

7555952

Unavailable

29

BOLT(10)

7516806

Unavailable

30

PIN, COTTER(10)

7661010

$1.19

31

WASHER, FLAT, S.S.(10)

7555837

$1.59

32

CABLE,REVERSE

7080899

Unavailable

32

CABLE,REVERSE

7080899

Unavailable

33

Nut

7547001

$1.90

33

Nut

7547001

$1.90

34

Washer

1860103

$3.33

34

Washer

1860103

$3.33

35

WASHER, LOCK,S.S.(10)

7571625

$2.38

36

SEAL,ROD

5411818

Unavailable

37

SEAL,ROD

5411819

$2.94

38

ASM-GUIDE TUBE,REVERSE,.75

7080950

Unavailable

39

ROD,END,1/4-28X.375

7061062

$27.94

40

NUT,NYLOK,S.S.(10)

7542133

Unavailable

41

GATE,REVERSE,DIRECTIONAL Substituted by 5434049

5631036

Unavailable

42

SCREW1/4-20X1.75HX(10)

7517749

$2.06

43

WASHER(10)

7555866

Unavailable

44

Collar

5020683

$6.59

45

WASHER,FLAT,S.S.(10)

7555874

$2.38

46

BOLT, S.S.(10)

7515368

Unavailable

47

BRKT-REVERSE TOP

5244902

Unavailable
