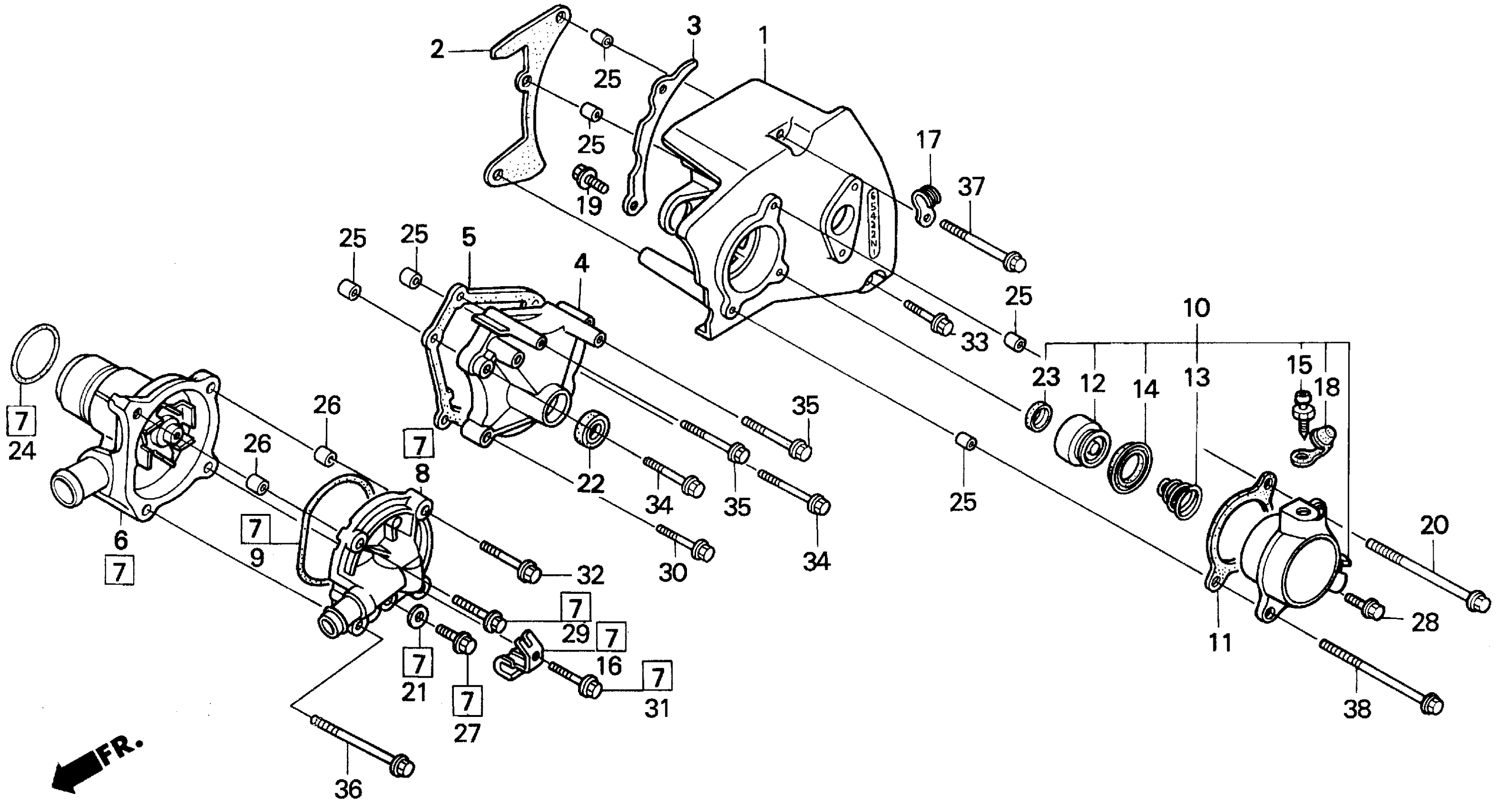

Honda VFR750FA (97) VFR, JPN, VIN# JH2RC360-VM700001 WATER PUMP Diagram

#

Description
Price

1

COVER, L. CRANKCASE

11341-MZ7-300

Unavailable

2

GASKET, L. COVER

11343-MZ7-000

Unavailable

3

GUIDE, DRIVE CHAIN

11365-MZ5-000

Unavailable

4

COVER, CHANGE

11631-MZ7-000

Unavailable

5

GASKET, SHIFT COVER

11632-MY7-000

$11.92

7

WATER PUMP

19200-MZ7-010

Unavailable

8

COVER, WATER PUMP

19220-MZ5-000

Unavailable

8

COVER, WATER PUMP This part replaces 19221-MZ5-305.

19220-MZ5-000

Unavailable

9

GASKET, WATER PUMP COVER

19226-ML7-000

$5.16

10

CYLINDER ASSY., CLUTCH SLAVE

22860-ML7-010

$134.93

11

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.95

12

PISTON, SLAVE CYLINDER

22863-MJ8-003

$25.56

13

SPRING, SLAVE CYLINDER

22864-MB0-003

$6.41

14

CUP, SLAVE CYLINDER

22865-MJ8-003

$11.03

15

SCREW, BLEEDER

22866-MF2-711

$5.09

16

CLAMP, PULSER WIRE

30301-MZ7-000

Unavailable

18

CAP, BLEEDER

43353-461-771

$5.03

19

BOLT, FLANGE (6X16) (NSHF) | Use up to Engine SN 2703780 This part replaces 90001-GHB-630.

90004-GHB-630

$3.48

19

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.48

20

BOLT, FLANGE (6X105)

90035-KAK-900

Unavailable

21

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

22

OIL SEAL (13X22X5) (ARAI)

91204-KE8-003

$3.10

23

OIL SEAL (8X18X5)

91209-MB0-003

$4.03

24

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

25

PIN, DOWEL (8X14)

94301-08140

$2.89

27

BOLT, FLANGE (6X12) (CT200)

90013-883-000

$1.49

28

BOLT, FLANGE (6X20)

96001-06020-07

$1.31

29

BOLT, FLANGE (6X25)

90121-MV9-670

$2.88

30

BOLT, FLANGE (6X32)

96001-06032-00

$1.35

31

BOLT, FLANGE (6X25)

90121-MV9-670

$2.88

32

BOLT, FLANGE (6X35)

96001-06035-07

$2.88

33

BOLT, FLANGE (6X35)

96001-06035-00

$1.35

36

BOLT, FLANGE (6X75)

96001-06075-07

$1.91
