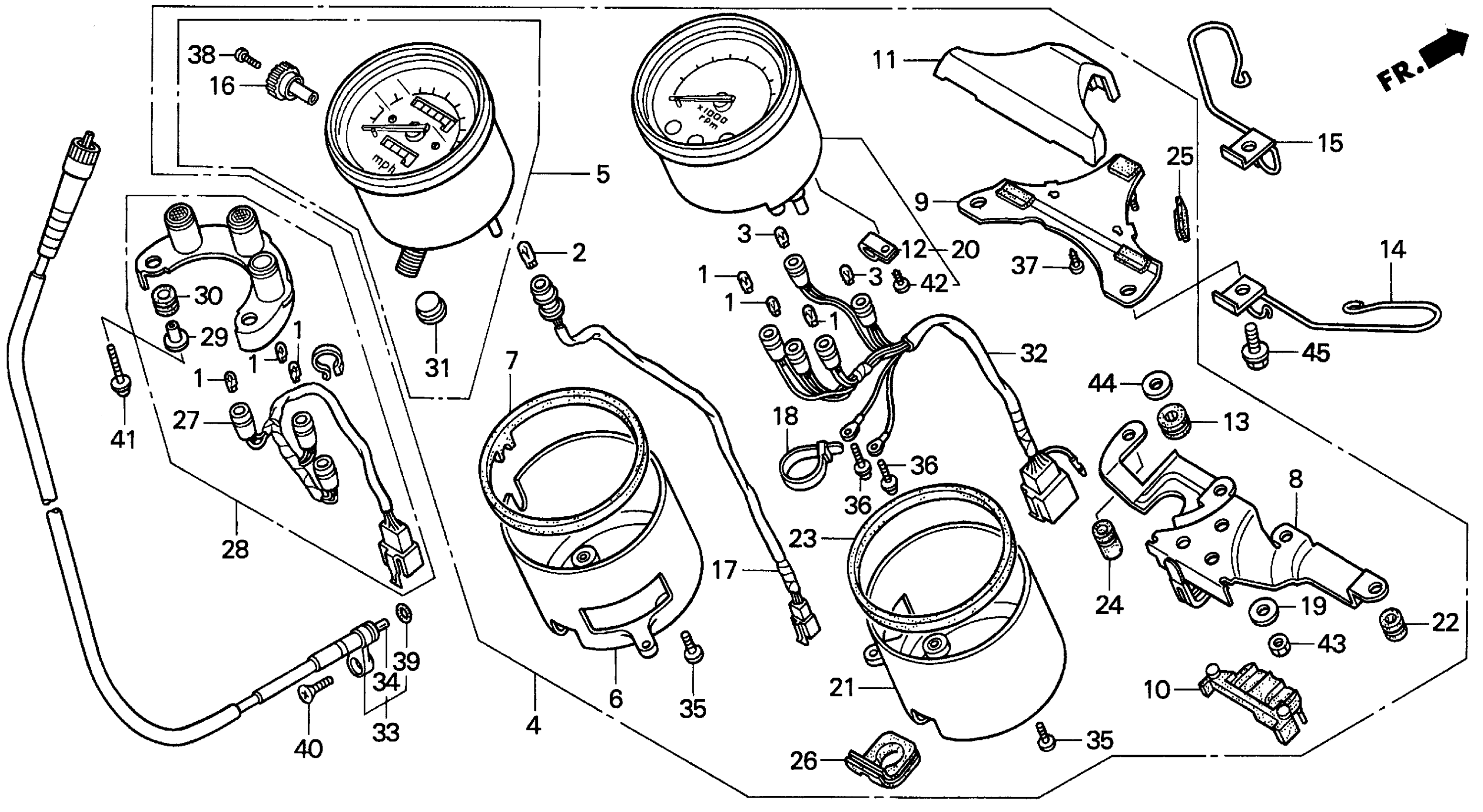

Honda VF750CA (95) MAGNA 750C, JPN, VIN# JH2RC430-SM100001 SPEEDOMETER TACHOMETER Diagram

#

Description
Price

1

BULB, WEDGE BASE (T6.5) (12V 3W)

34908-KM1-671

$7.04

2

BULB, WEDGE BASE (T10) (12V 1.7W) (STANLEY)

34908-MB9-871

$2.82

3

BULB, WEDGE BASE (12V1.4W)

34908-MN8-700

$3.65

4

METER ASSY., COMBINATION

37100-MZ5-671

Unavailable

5

SPEEDOMETER ASSY.

37200-MZ5-671

Unavailable

6

COVER, SPEEDOMETER

37202-MZ5-008

Unavailable

7

RUBBER, SPEEDOMETER

37204-MK4-611

$8.78

8

BRACKET, METER (LOWER)

37211-MZ5-008

Unavailable

9

BRACKET, METER (UPPER)

37212-MZ5-008

Unavailable

10

RUBBER, METER BRACKET CUSHION

37213-MW3-671

Unavailable

11

COVER, METER BRACKET

37214-MZ5-008

Unavailable

12

CLAMP

37215-KM1-670

$1.91

13

RUBBER, BRACKET SETTING

37215-MW3-671

Unavailable

14

GUIDE, R. CABLE

37216-MZ5-000

Unavailable

15

GUIDE, L. CABLE

37217-MZ5-000

Unavailable

16

KNOB, TRIP METER

37220-MB4-671

$14.95

17

SOCKET, SPEED ILLUMINATION

37224-MZ5-008

Unavailable

18

BAND, SELF-LOCK

37226-MZ5-008

$3.02

19

WASHER, PLAIN

37244-MA6-008

$2.08

20

TACHOMETER ASSY.

37250-MZ5-671

Unavailable

21

COVER, TACHOMETER

37252-MZ5-008

Unavailable

22

RUBBER, TACHOMETER CUSHION

37253-MK4-611

Unavailable

23

RUBBER, TACHOMETER

37254-MK4-611

$10.17

24

RUBBER, SPEEDOMETER CUSHION

37255-MK4-611

$3.15

25

CUSHION, RUBBER

37255-MZ5-008

Unavailable

26

GROMMET, TACHOMETER

37257-MK4-601

$7.66

27

SOCKET

37562-MZ5-008

Unavailable

28

BOX ASSY., PILOT

37600-MZ5-008

Unavailable

29

COLLAR

37606-MR1-008

Unavailable

30

RUBBER, SETTING

37607-MZ5-008

Unavailable

31

CAP, SPEED ALARM WIRE

37618-MB2-008

$2.15

32

SOCKET, METER

37619-MZ5-671

Unavailable

33

CABLE ASSY., SPEEDOMETER

44830-MT3-000

$32.26

34

CABLE (INNER)

44831-MM5-000

Unavailable

34

CABLE (INNER) This part replaces 44831-443-720.

44831-MM5-000

Unavailable

35

SCREW, TRUSS (4X12)

90106-KN8-008

$2.25

36

SCREW-WASHER (3X10)

90108-GN2-008

$2.32

37

SCREW, TAPPING (4X14)

90109-MZ5-008

$4.37

38

SCREW, PAN (2X6)

90158-KM7-911

$1.95

39

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.99

39

O-RING (6.8X1.9)

91306-PJ4-000

$2.99

39

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.99

40

SCREW, OVAL (5X20)

93700-05020-0G

$0.51

41

SCREW-WASHER (4X16)

93891-04016-07

$0.86

42

SCREW, TAPPING (4X12)

93903-24310

$0.94

43

NUT, HEX. (6MM)

94002-06070-0S

$0.75

44

WASHER, PLAIN (8MM)

94101-08700

$0.95

45

BOLT, FLANGE (8X16)

95701-08016-08

$1.69
