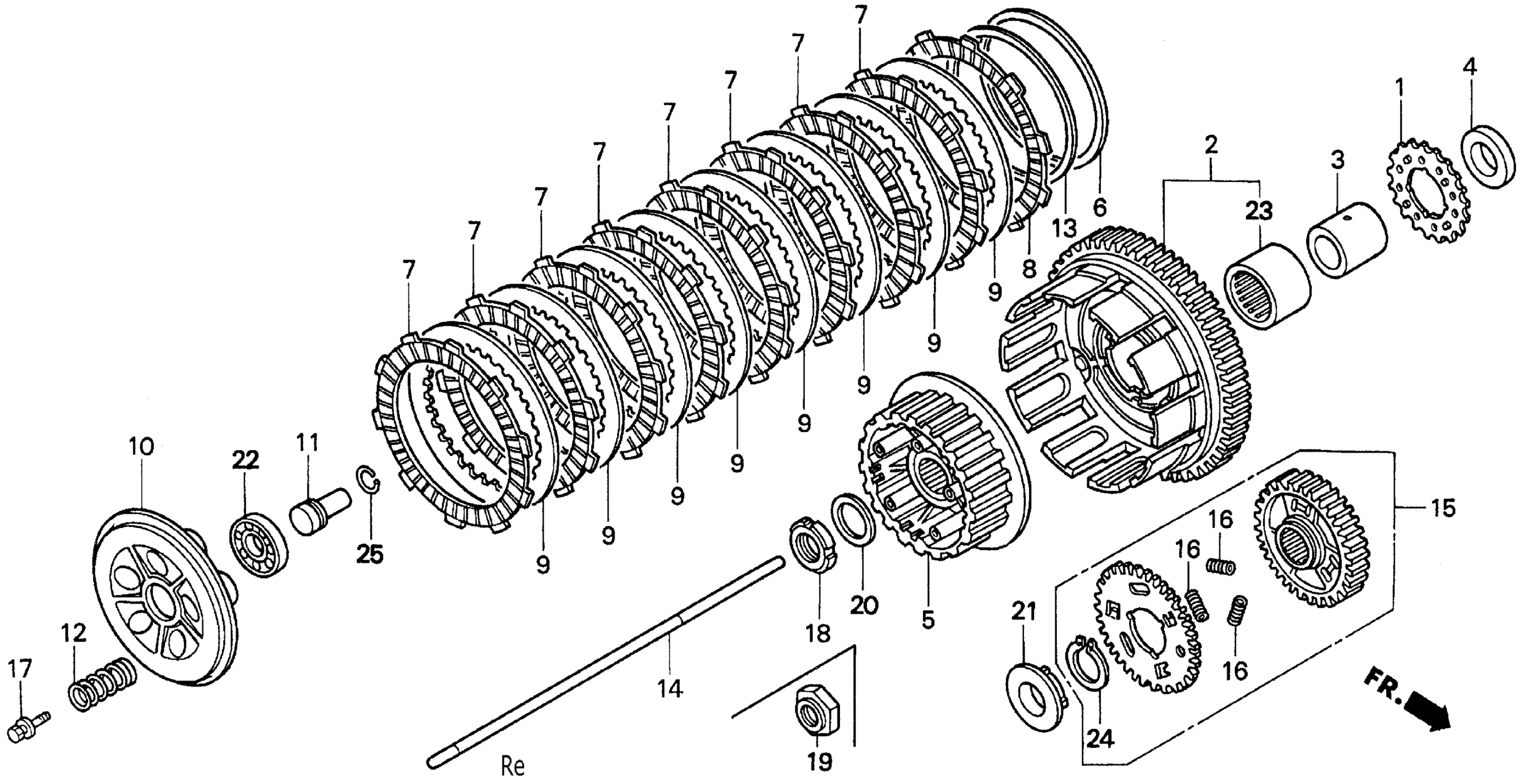

Honda VF750CA (95) MAGNA 750C, JPN, VIN# JH2RC430-SM100001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-ML7-000

$38.72

2

CLUTCH (OUTER)

22100-MZ5-010

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MB0-000

$32.65

4

COLLAR, CLUTCH (OUTER)

22117-ML7-690

$11.57

5

CENTER, CLUTCH

22120-ML7-010

Unavailable

6

SEAT, JUDDER SPRING

22125-ML7-000

$10.24

7

DISK, CLUTCH FRICTION This part replaces 22201-KG0-980.

22201-MS6-620

$16.20

7

DISK, CLUTCH FRICTION This part replaces 22201-KM4-000.

22201-MS6-620

$16.20

7

DISK, CLUTCH FRICTION

22201-MS6-620

$16.20

8

DISK B, CLUTCH FRICTION

22202-ML4-611

$18.27

9

PLATE, CLUTCH

22321-ML7-000

$13.44

9

PLATE, CLUTCH

22321-MR7-000

$15.88

10

PLATE, CLUTCH PRESSURE

22350-ML7-000

Unavailable

11

PIECE, CLUTCH JOINT

22366-KE8-000

Unavailable

12

SPRING, CLUTCH

22401-KZ3-000

$5.16

12

SPRING, CLUTCH This part replaces 22401-ML7-000.

22401-KZ3-000

$5.16

13

SPRING, JUDDER

22402-ML7-000

Unavailable

14

ROD, CLUTCH LIFTER This part replaces 22850-MZ5-000.

22851-MBT-F20

$35.17

14

ROD, CLUTCH LIFTER

22851-MBT-F20

$35.17

15

GEAR ASSY., PRIMARY DRIVE

23110-ML7-010

Unavailable

16

SPRING, PRIMARY DAMPER

23115-MG8-300

Unavailable

17

BOLT-WASHER (6X25)

90022-MM5-000

$2.95

18

NUT, LOCK (22MM) This part replaces 90231-MK7-670.

90231-MZ7-000

$11.64

18

NUT, LOCK (22MM)

90231-MZ7-000

$11.64

20

WASHER, SPRING (22MM)

90432-MB0-010

$9.60

21

GUIDE, PRIMARY DRIVE GEAR

90509-MR7-000

$50.18

22

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$14.79

22

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$14.79

22

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$14.79

22

BEARING, RADIAL BALL (16003)

91011-KK6-013

$14.79

23

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$83.22

24

CIRCLIP, OUTER (32MM)

94510-32000

$2.15

25

CLIP, PISTON PIN (15MM)

94601-15000

$0.98
