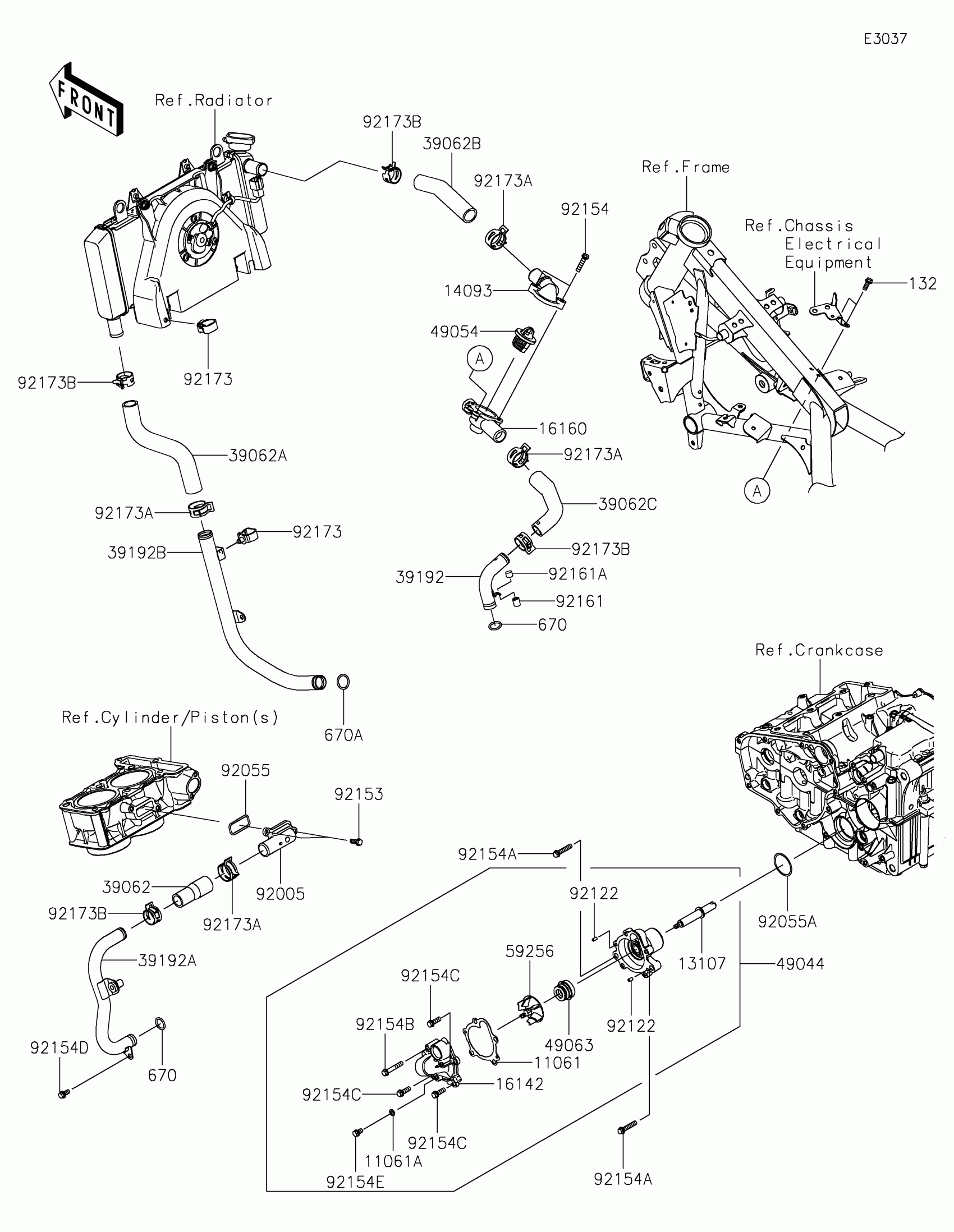

Kawasaki VERSYS®-X 300 Water Pipe Diagram

#

Description
Price

11061

GASKET

11061-0795

$8.85

11061A

GASKET,DRAIN

11061-0875

$4.24

13107

SHAFT

13107-0742

$42.78

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

14093

COVER,THERMOSTAT

14093-0224

$66.68

16142

COVER-PUMP

16142-0708

$46.27

16160

BODY,THERMO.,LWR

16160-0762

$37.40

39062

HOSE-COOLING,W/P-CYLINDER

39062-0693

$4.66

39062A

HOSE-COOLING,RADIATOR-W/PUMP

39062-0773

$12.15

39062B

HOSE-COOLING,RADIATOR-THERMO

39062-0793

$10.27

39062C

HOSE-COOLING,HEAD-THERMO

39062-0794

$10.75

39192

PIPE-WATER,HEAD-THERMO

39192-0590

$38.68

39192A

PIPE-WATER,W/P-CYLINDER

39192-0600

$33.09

39192B

PIPE-WATER,RAD.-W/P

39192-0604

$29.90

49044

PUMP-WATER

49044-0015

$279.76

49054

THERMOSTAT

49054-1056

$49.86

49063

SEAL-MECHANICAL

49063-1055

$16.33

59256

IMPELLER

59256-0554

$19.31

670

O RING,16MM

670B2016

$1.04

670A

O RING,18MM

670B2018

$1.08

92005

FITTING,CYLINDER

92005-0890

$20.76

92055

RING-O,2.4MM

92055-0735

$3.27

92055A

RING-O,34.4X3.1

92055-0736

$1.89

92122

ROLLER,4X8

92122-0557

$1.10

92153

BOLT,6X16

92153-0695

$2.14

92154

BOLT,FLANGED,6X25

92154-1212

$2.44

92154A

BOLT,FLANGED,6X30

92154-1773

$1.10

92154B

BOLT,FLANGED,6X35

92154-1779

$1.27

92154C

BOLT,FLANGED-SMALL,6X18

92154-2349

$1.10

92154D

BOLT,FLANGED,6X12

92154-2351

$1.66

92154E

BOLT,FLANGED-SMALL,6X10

92154-2557

$1.27

92161

DAMPER,10X11.5

92161-0690

$3.27

92161A

DAMPER,10X7.5

92161-0691

$1.20

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP

92173-1416

$3.15

92173B

CLAMP

92173-1417

$1.95
