Description

Price

11057

BRACKET,RH

11057-0541

$12.47

11057A

BRACKET,LH

11057-0542

$13.17

11061

GASKET,12X22X2

11061-0417

$2.20

11061A

GASKET,OIL PAN

11061-0794

$13.81

13107

SHAFT

13107-0741

$41.42

14092

COVER,RELIEF VALVE

14092-1002

$2.17

16097

FILTER-ASSY-OIL

16097-0008

$11.00

16130

VALVE-ASSY-RELIEF

16130-0002

$23.95

16142

COVER-PUMP

16142-0707

$24.95

16154

ROTOR-PUMP

16154-0711

Unavailable

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32155

PIPE,OIL FILTER

32155-0029

$14.17

49034

PAN-OIL

49034-0567

$101.28

49065

FILTER-OIL

49065-0711

$18.15

59051

GEAR-SPUR,30T

59051-0721

$83.39

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92055

RING-O,OIL FILTER

92055-1354

$7.25

92066

PLUG,OIL DRAIN,12X15

92066-0767

$5.15

92122

ROLLER,4X8

92122-0557

$1.10

92154

BOLT,FLANGED,6X18

92154-0784

$2.19

92154A

BOLT,FLANGED,6X25

92154-0819

$1.66

92154B

BOLT,FLANGED,6X16

92154-1055

$1.93

92154C

BOLT,FLANGED-SMALL,6X16

92154-2561

$1.27

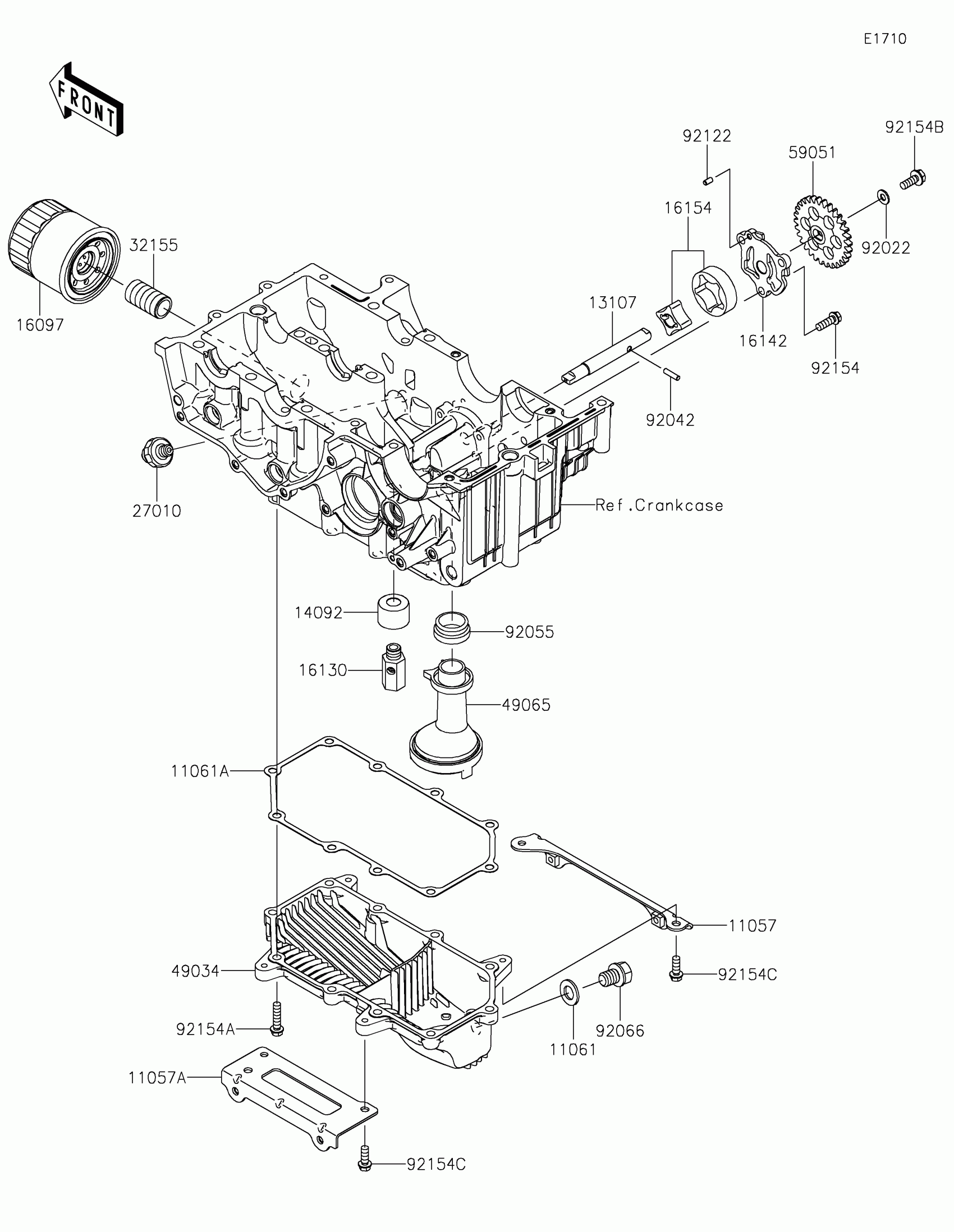

Kawasaki VERSYS®-X 300 Oil Pump Diagram
