2020 Kawasaki Versys®-X 300 Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2020 Kawasaki Versys®-X 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

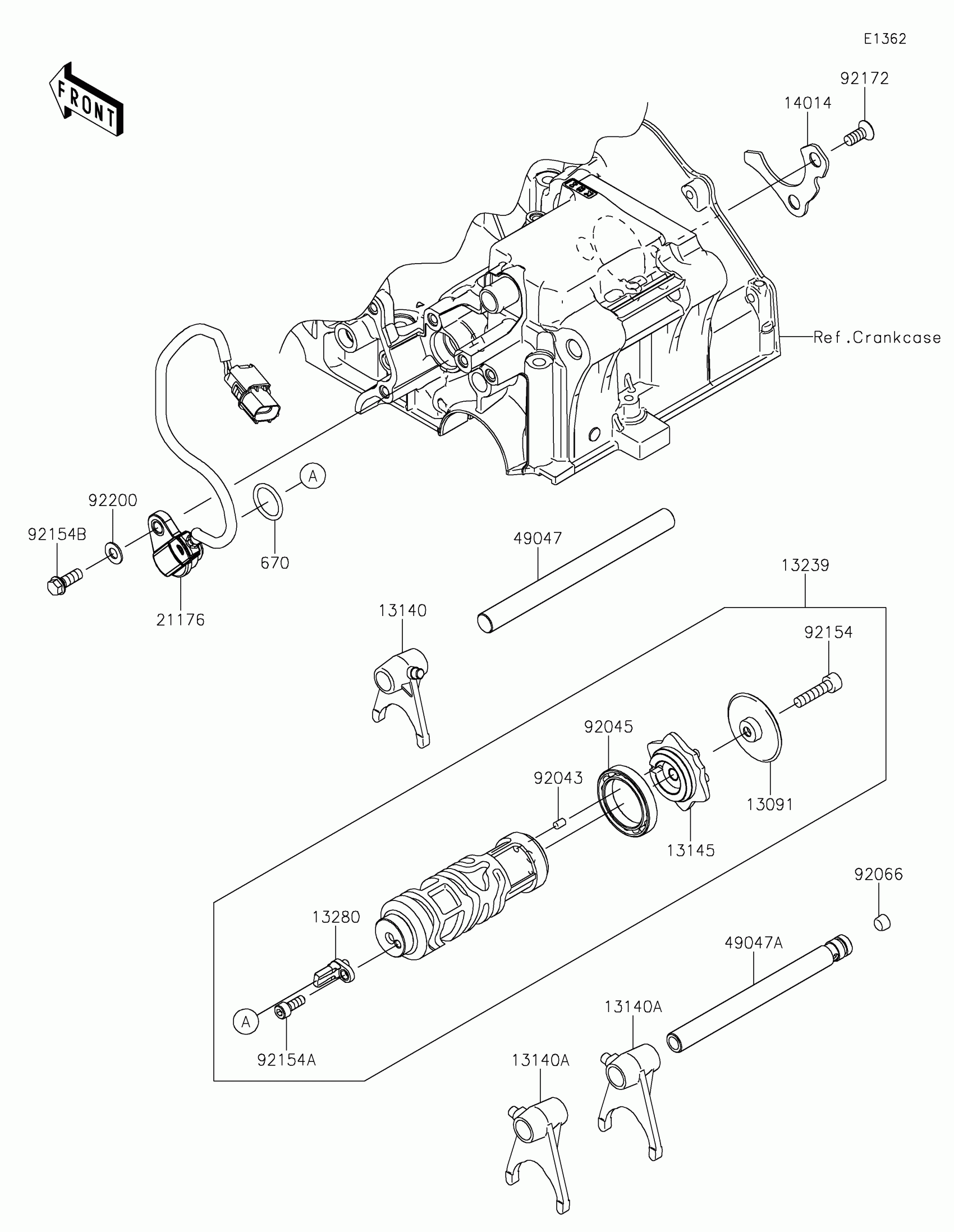

2020 Kawasaki Versys®-X 300 Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13091

HOLDER,CHANGE DRUM

13091-1464

1
Out of stock

13140

FORK-SHIFT,IN

13140-1148

1
Out of stock

13140A

FORK-SHIFT,OUT

13140-1149

1
Out of stock

13145

CAM-CHANGE DRUM

13145-0556

1
Out of stock

13239

DRUM-ASSY-CHANGE

13239-0048

1
Out of stock

13280

HOLDER,GEAR POSITION SENSOR

13280-0882

1
Out of stock

14014

PLATE-POSITION

14014-0564

1
Out of stock

21176

SENSOR,GEAR POSITION

21176-0832

1
Out of stock

49047

ROD-SHIFT,IN

49047-0625

1
Out of stock

49047A

ROD-SHIFT,OUT

49047-0626

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock

670

O RING,18MM

670D2018

1
Out of stock

92045

BEARING-BALL,6806

92045-0826

1
Out of stock

92066

PLUG

92066-1246

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0954

1
Out of stock

92154A

BOLT,SOCKET,5X14

92154-2559

1
Out of stock

92154B

BOLT,FLANGED-SMALL,6X16

92154-2561

1
Out of stock

92172

SCREW,6X15

92172-0812

1
Out of stock

92200

WASHER,6.5X13X1

92200-1857

1
Out of stock
