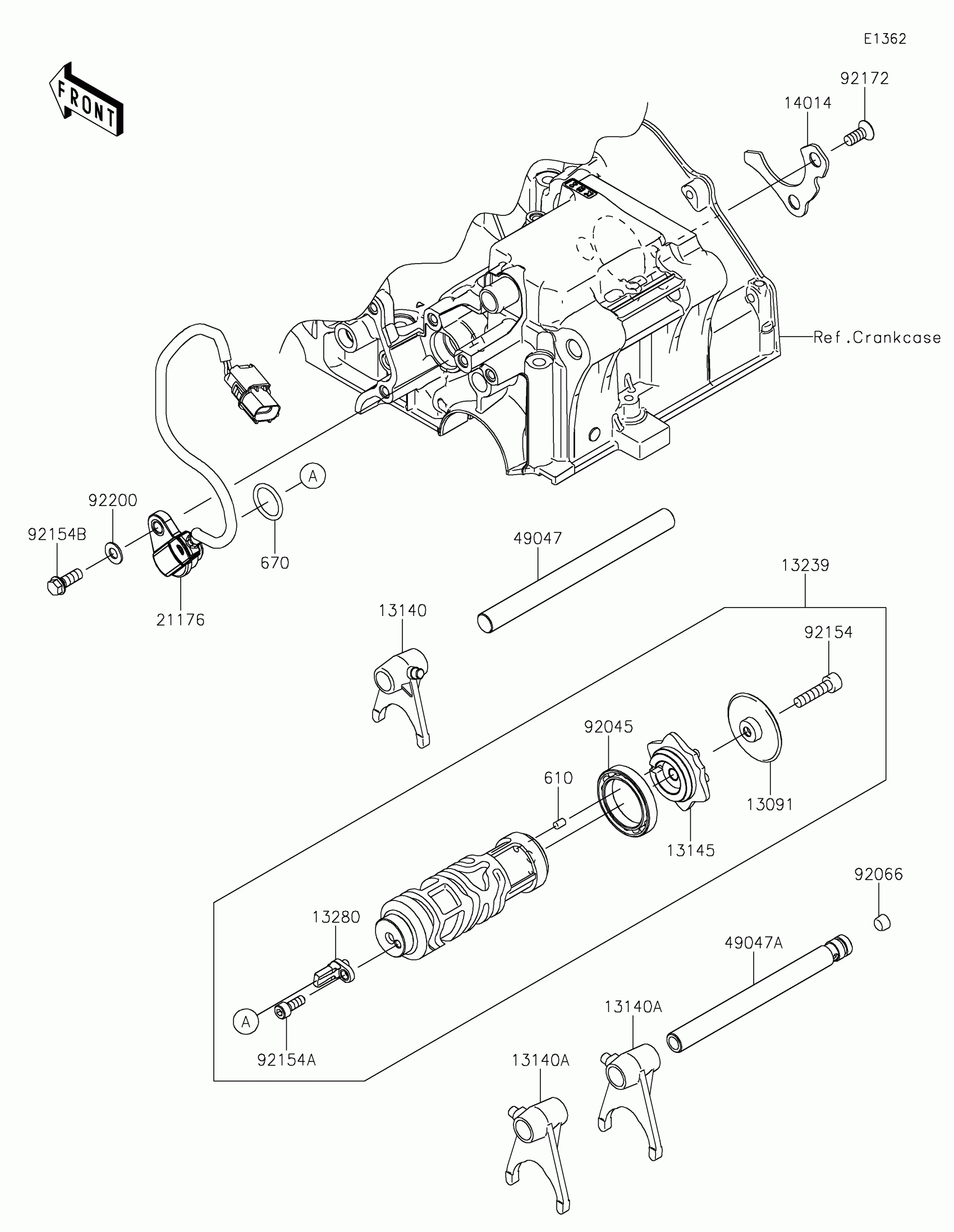

Kawasaki Versys-X 300 ABS Gear Change Drum/Shift Fork(s) Diagram

Description

Price

13091

HOLDER,CHANGE DRUM

13091-1464

$7.47

13140

FORK-SHIFT,IN

13140-1148

Unavailable

13140A

FORK-SHIFT,OUT

13140-1149

$86.34

13145

CAM-CHANGE DRUM

13145-0556

$55.65

13239

DRUM-ASSY-CHANGE

13239-0048

$192.48

13280

HOLDER,GEAR POSITION SENSOR

13280-0882

$5.10

14014

PLATE-POSITION

14014-0564

$5.24

21176

SENSOR,GEAR POSITION

21176-0832

$154.98

49047

ROD-SHIFT,IN

49047-0625

$15.32

49047A

ROD-SHIFT,OUT

49047-0626

$17.14

610

ROLLER,4X6

610A0406

$3.29

670

O RING,18MM

670D2018

$1.39

92045

BEARING-BALL,6806

92045-0826

$46.71

92066

PLUG

92066-1246

$3.81

92154

BOLT,SOCKET,6X25

92154-0954

$2.19

92154A

BOLT,SOCKET,5X14

92154-2559

$2.20

92154B

BOLT,FLANGED-SMALL,6X16

92154-2561

$1.27

92172

SCREW,6X15

92172-0812

$1.68

92200

WASHER,6.5X13X1

92200-1857

$2.66
